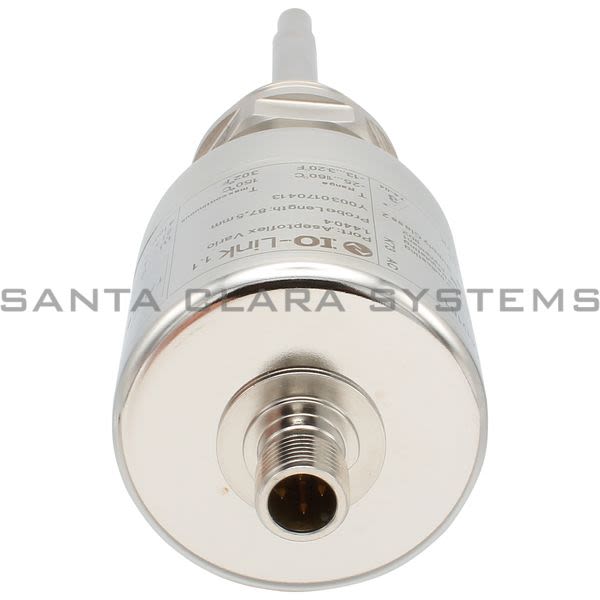

• Efector TAD181 Temperature Transmitter | TAD088KLES30-A-ZKG/US Product Image

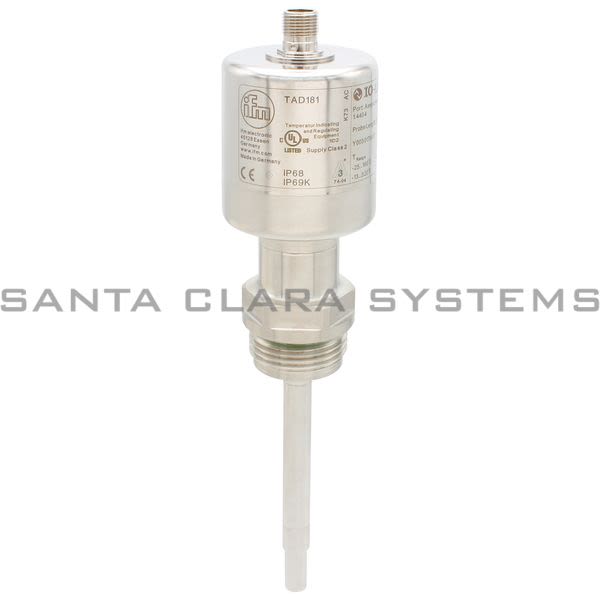

  • Efector TAD181 Temperature Transmitter | TAD088KLES30-A-ZKG/US Product Image

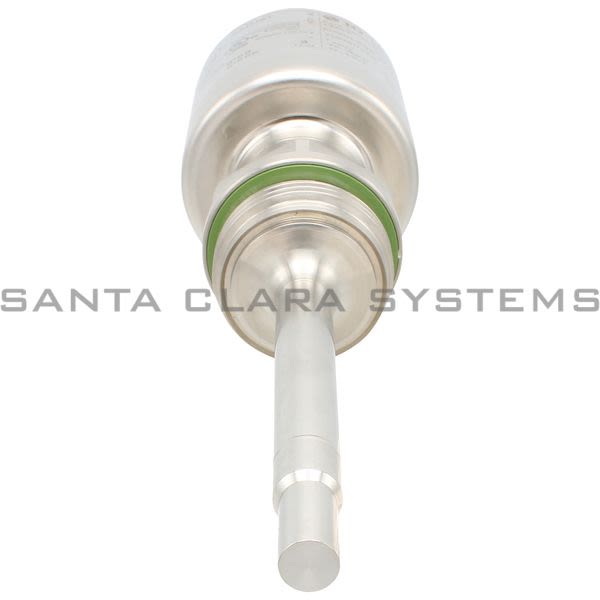

  • Efector TAD181 Temperature Transmitter | TAD088KLES30-A-ZKG/US Product Image

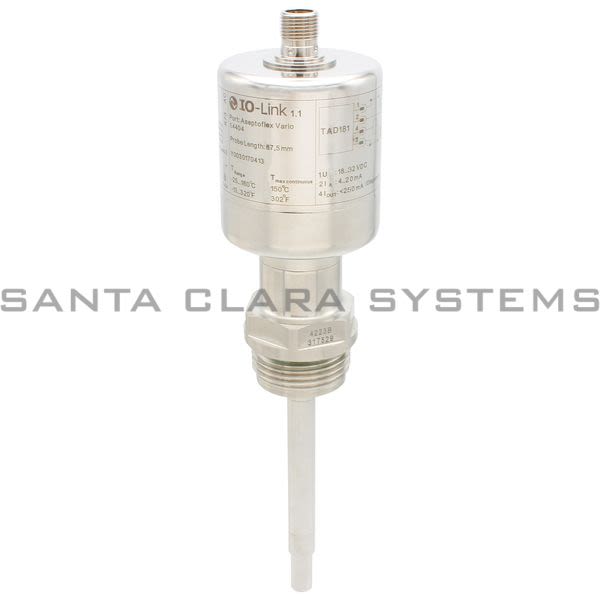

  • Efector TAD181 Temperature Transmitter | TAD088KLES30-A-ZKG/US Product Image
  • Efector TAD181 Barcode

TAD181

Product Summary:

  • Electrical Design: Pnp/Npn
  • Material: Stainless Steel (1.4404 / 316L); Pei; Fkm
  • Media: Liquids And Gases
  • Pressure Rating [Bar]: 50
  • Minimum Installation Depth [Mm]: 25
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Temperature Transmitter | TAD088KLES30-A-ZKG/US
  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open / Normally Closed / Diagnostic Signal; (Configurable)
  • Material: Stainless Steel (1.4404 / 316L); Pei; Fkm
  • Measuring Element: 1 X Pt 1000 + 1 X Ntc; (Thermically Coupled, With Backup Function (Temperature Measuring Even If One Of The Two Sensor Elements Fails))
  • Media: Liquids And Gases
  • Pressure Rating [Bar]: 50
  • Minimum Installation Depth [Mm]: 25
  • Mawp (For Applications According To Crn) [Bar]: 50
  • Operating Voltage [V]: 18...32 Dc; (Culus - Class 2 Source Required)
  • Current Consumption [Ma]: 6; (24 V)
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Power-On Delay Time [S]: 8
  • Integrated Watchdog: Yes
  • Number Of Inputs And Outputs: Number Of Digital Outputs: 1; Number Of Analog Outputs: 1
  • Total Number Of Outputs: 2
  • Output Signal: Switching Signal; Analog Signal; Io-Link; (Configurable)
  • Number Of Digital Outputs: 1
  • Max. Voltage Drop Switching Output Dc [V]: 2
  • Permanent Current Rating Of Switching Output Dc [Ma]: 150; (200 (...60C); 250 (...40 C))
  • Diagnostic Output: Diagnostic Output For Drift And Fault Monitoring
  • Number Of Analog Outputs: 1
  • Analog Current Output [Ma]: 4...20
  • Max. Load [?]: (Ub - 15 V) X 50
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Measuring Range: -25...160 C -13...320 F
  • Factory Setting: 0...150 C / 32...302 F
  • Drift Warning: 0.2...5 C 0.4...9 F
  • Drift Alarm: 0.2...5 C 0.4...9 F
  • In Steps Of: 0.05 C 0.1 F
  • Resolution Of Analog Output [K]: 0.05
  • Precision Analog Output [K]: 0,2 (-10...130C); 0,3 (130...140C); 0,3 0,1% Ms (-25...-10/140...160C); (Probe Completely Inserted Into The Measured Medium Up To The Sealing Chamfer)
  • Temperature Coefficient [% Of The Span / 10 K]: < 0,01; (In Case Of Deviation From The Reference Condition 25 5 C)
  • Dynamic Response T05 / T09 [S]: 43530
  • Parameter Setting Options: Drift Warning/Drift Alarm Threshold; Fail-Safe; Display Unit; Scaling Of The Analog Output; Redundancy Switching; Performance Diagnostic Output; Switching Logic; Normally Open / Closed
  • Communication Interface: Io-Link
  • Transmission Type: Com1 (4,8 Kbaud)
  • Io-Link Revision: 1.1
  • Sdci Standard: Iec 61131-9 Cdv
  • Io-Link Device Id: 323 D / 00 01 43 H
  • Profiles: Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
  • Sio Mode: Yes
  • Required Master Port Class: A
  • Process Data Analogue: 1
  • Process Data Binary: 1
  • Min. Process Cycle Time [Ms]: 18.8
  • Ambient Temperature [C]: -25...70
  • Storage Temperature [C]: -40...85
  • Protection: Ip 68; Ip 69K
  • Emc: Din En 61000-6-2 Din En 61000-6-3
  • Shock Resistance: Din En 68000-2-27 50 G (11 Ms)
  • Vibration Resistance: Din En 60068-2-6 20 G (10...2000 Hz)
  • Materials (Wetted Parts): Stainless Steel (1.4404 / 316L)
  • Process Connection: Threaded Connection G 1 External Thread Aseptoflex Vario
  • Surface Characteristics Ra/Rz Of The Wetted Parts: Ra: < 0.6
  • Installation Length El [Mm]: 87.5
  • Connection: Connector: 1 X M12; Contacts: Gold-Plated
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TAD181 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
