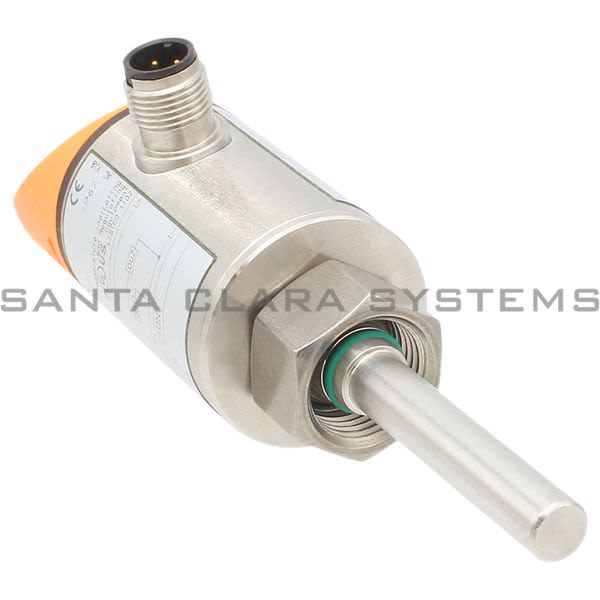

• Efector TN7530 Temperature Sensor | TN-013KBBD10-QFPKG/US/ /V Product Image
  • Efector TN7530 Temperature Sensor | TN-013KBBD10-QFPKG/US/ /V Product Image
  • Efector TN7530 Temperature Sensor | TN-013KBBD10-QFPKG/US/ /V Product Image
  • Efector TN7530 Temperature Sensor | TN-013KBBD10-QFPKG/US/ /V Product Image
  • Efector TN7530 Barcode

TN7530

Product Summary:

  • Electrical Design: Pnp
  • Output Function: Normally Open / Closed; (Configurable)
  • Material: Stainless Steel (1.4301 / 304); Epdm/X; Co-Pc; Pbt; Fkm; Pa
  • Measuring Element: 1 X Pt 1000; (To Din En 60751, Class B)
  • Media: Liquids And Gases
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Temperature Sensor | TN-013KBBD10-QFPKG/US/ /V
  • Electrical Design: Pnp
  • Output Function: Normally Open / Closed; (Configurable)
  • Material: Stainless Steel (1.4301 / 304); Epdm/X; Co-Pc; Pbt; Fkm; Pa
  • Measuring Element: 1 X Pt 1000; (To Din En 60751, Class B)
  • Media: Liquids And Gases
  • Pressure Rating [Bar]: 300
  • Minimum Installation Depth [Mm]: 15
  • Operating Voltage [V]: 18...30 Dc
  • Current Consumption [Ma]: < 50
  • Min. Insulation Resistance [M?]: 100; (500 V Dc)
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Power-On Delay Time [S]: 1.5
  • Integrated Watchdog: Yes
  • Number Of Inputs And Outputs: Number Of Digital Outputs: 2
  • Total Number Of Outputs: 2
  • Output Signal: Switching Signal
  • Number Of Digital Outputs: 2
  • Max. Voltage Drop Switching Output Dc [V]: 2
  • Permanent Current Rating Of Switching Output Dc [Ma]: 250
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Probe Length L [Mm]: 45
  • Measuring Range: -40...125 C -40...257 F
  • Set Point Sp: -39.5...125 C -39...257 F
  • Reset Point Rp: -40...124.5 C -40...256 F
  • In Steps Of: 0.5 C 1 F
  • Resolution Of Switching Output [K]: 0.5
  • Resolution Of Display [K]: 0.5
  • Switch Point Accuracy [K]: (Pt 1000 + 0,2 K)
  • Display Accuracy [K]: (Pt 1000 + 0,2 K + Digit)
  • Temperature Drift Per 10 K [K]: 0.1
  • Dynamic Response T05 / T09 [S]: 1 / 3; (According To Din En 60751)
  • Adjustment Of The Switch Point: Programming Button
  • Parameter Setting Options: Hysteresis / Window; Normally Open / Closed; Min/Max Memory Reset; Display Unit; Zero-Point Calibration
  • Ambient Temperature [C]: -25...70
  • Storage Temperature [C]: -40...100
  • Protection: Ip 67
  • Emc: Din En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M Din En 61000-4-4 Burst 2 Kv En 61000-4-6 Hf Conducted 10 V
  • Shock Resistance: Din Iec 68-2-27 50 G (11 Ms)
  • Vibration Resistance: Din En 60068-2-6 20 G (10...2000 Hz)
  • Housing: For Adapter
  • Materials (Wetted Parts): Stainless Steel (1.4404 / 316L)
  • Process Connection: Threaded Connection M18 X 1,5 Internal Thread
  • Display: Switching Status 2 X Led, Red Function Display 7-Segment Led Display Measured Values 7-Segment Led Display
  • Connection: Connector: 1 X M12; Contacts: Gold-Plated
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TN7530 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
