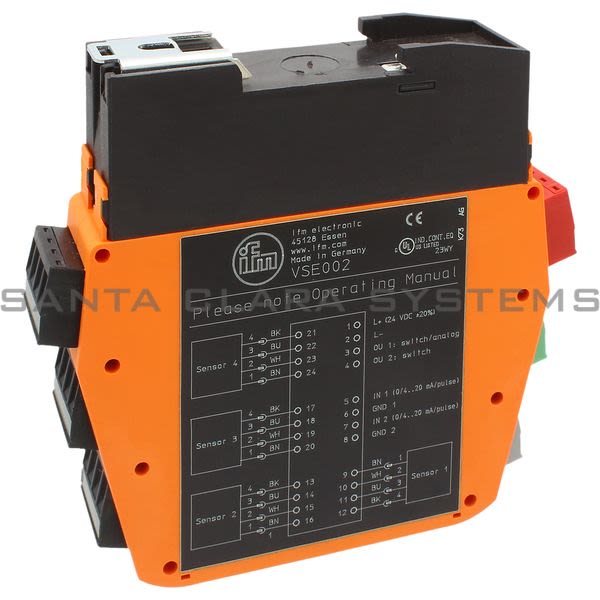

• Efector VSE002 Vibration Sensor | DIAGNOSTIC ELECTRONICS Product Image

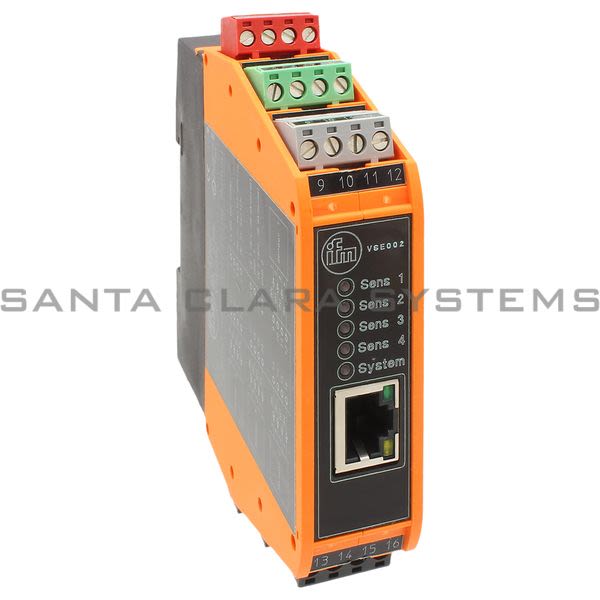

  • Efector VSE002 Vibration Sensor | DIAGNOSTIC ELECTRONICS Product Image

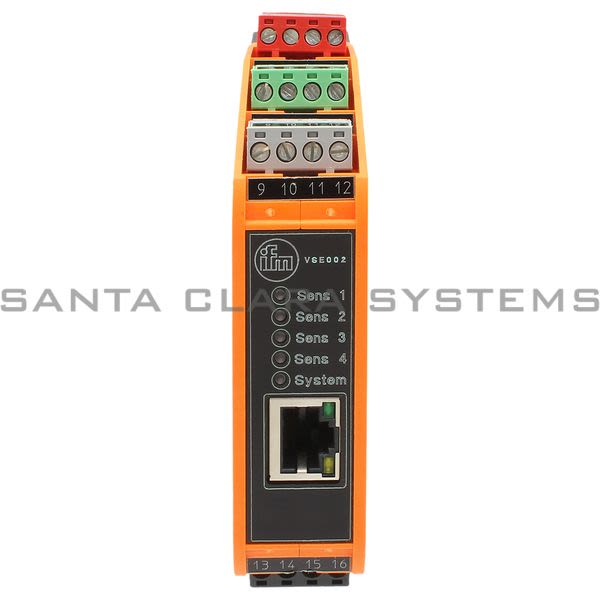

  • Efector VSE002 Vibration Sensor | DIAGNOSTIC ELECTRONICS Product Image

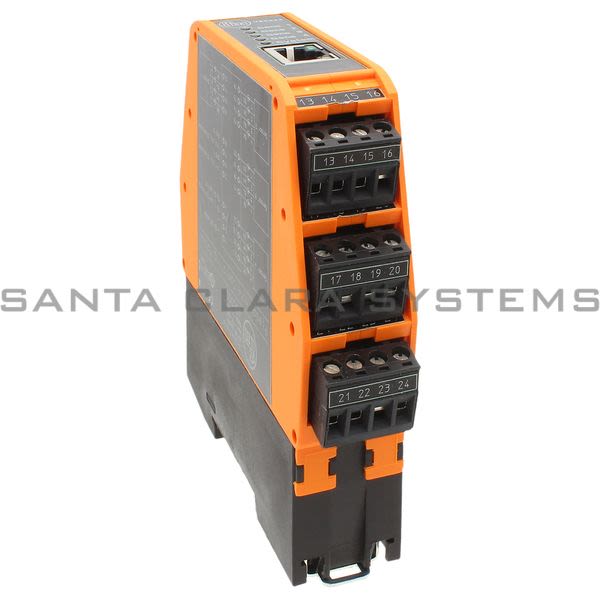

  • Efector VSE002 Vibration Sensor | DIAGNOSTIC ELECTRONICS Product Image
  • Efector VSE002 Barcode

VSE002

Product Summary:

  • Output function: normally open / closed; (configurable)
  • Material: PA
  • Frequency range [Hz]: 0...12000
  • Design: parameter setting via PC software VES004
  • Application: Counter function
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Vibration Sensor | DIAGNOSTIC ELECTRONICS
  • Output function: normally open / closed; (configurable)
  • Material: PA
  • Frequency range [Hz]: 0...12000
  • Design: parameter setting via PC software VES004
  • Application: Counter function
  • Operating voltage tolerance [%]: 20
  • Operating voltage [V]: 24 DC; (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric)
  • Current consumption [mA]: 200; (24 V)
  • Protection class: III
  • Total number of inputs and outputs: 8; (configurable)
  • Number of inputs and outputs: Number of analog inputs: 2; Number of digital outputs: 1; Number of analog outputs: 1
  • Number of analog inputs: 2
  • Resolution of analog input: 12
  • Dynamic input - sampling rate [kSamples]: 100
  • Output signal: switching signal; analog signal
  • Number of digital outputs: 1
  • Max. voltage drop switching output DC [V]: 2
  • Permanent current rating of switching output DC [mA]: 100
  • Number of analog outputs: 1
  • Analog current output [mA]: 4...20
  • Max. load []: 500
  • Short-circuit protection: yes
  • Type of short-circuit protection: yes (non-latching)
  • Overload protection: yes
  • Communication interface: Ethernet
  • Protocol: TCP/IP
  • Ambient temperature [C]: 0...70
  • Storage temperature [C]: 0...70
  • Protection: IP 20
  • EMC: EN 61000-6-2 EN 61000-6-3 EN 50178
  • MTTF [years]: 101
  • Weight [g]: 230
  • Housing: Plastic housing
  • Type of mounting: rail; (TH35/EN60715)
  • Dimensions [mm]: 100 x 25.4 x 103.4
  • History memory: yes
  • Data memory buffered: yes
  • Data memory type: ring memory; FIFO
  • With real-time clock: yes
  • Memory location: internal
  • Memory interval: min. 1 min
  • Memory size: 881664 data records
  • Accessories (optional): cross-over Ethernet patch cable for the direct connection to the PC
  • Pack quantity: 1 pcs.
  • Connection: Combicon: ; Maximum cable length: 250 m
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VSE002 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
