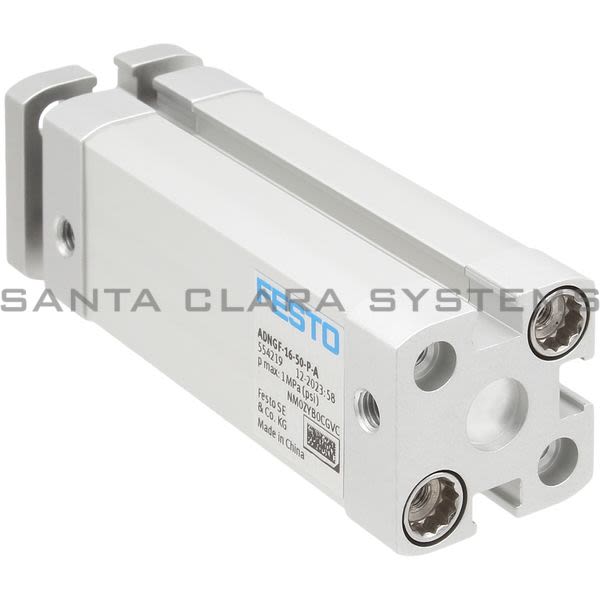

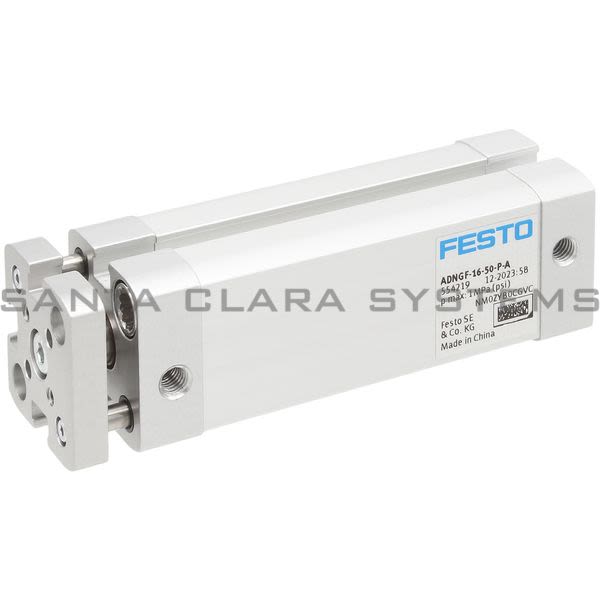

- Description: Compact Air Cylinder
- Ambient temperature: -20 C ... 80 C
- Stroke: 50 mm
- Piston diameter: 16 mm
- Based on norm: ISO 21287
- Cushioning: Elastic cushioning rings/pads at both ends
- Mounting position: Any
- Structural design: Piston Piston rod Profile barrel
- Position sensing: For proximity sensor
- Protection against torsion/guide: Guide rod with yoke
- Operating pressure: 0.15 MPa ... 1 MPa
- Mode of operation: Double-acting
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Impact energy in the end positions: 0.15 J
- Theoretical force at 6 bar, retracting: 90 N
- Theoretical force at 6 bar, advancing: 121 N
- Moving mass: 144 g
- Product weight: 167 g
- Pneumatic connection: M5
- Flange screws material: Steel
- Cover material: Wrought aluminum alloy, anodized
- Seals material: TPE-U(PUR)
- End plate material: Wrought aluminum alloy, anodized
- Piston rod material: High-alloy steel
- Material of cylinder barrel: Wrought aluminum alloy, smooth-anodized
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ADNGF-16-50-P-A . Santa Clara Systems carries 6,005 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
Alternates
- 554219
