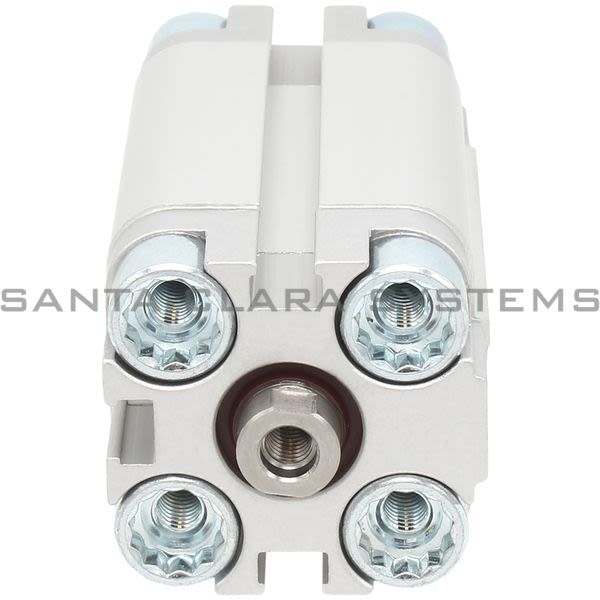

• Festo ADVU-20-30-P-A Compact Air Cylinder Product Image

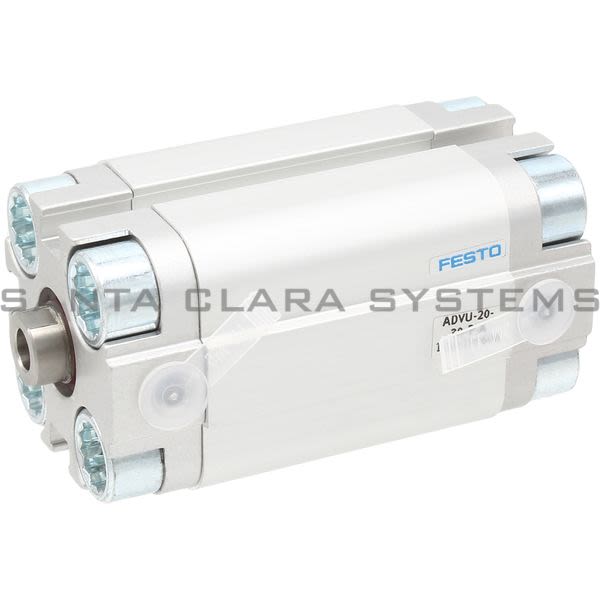

  • Festo ADVU-20-30-P-A Compact Air Cylinder Product Image

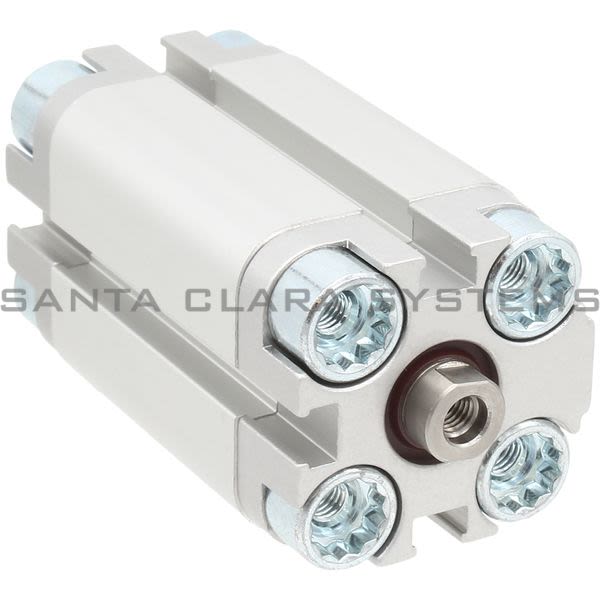

  • Festo ADVU-20-30-P-A Compact Air Cylinder Product Image
  • Festo ADVU-20-30-P-A Barcode

ADVU-20-30-P-A

Product Summary:

  • Ambient temperature: -20 C ... 80 C
  • Switching status indication: LED yellow
  • Ambient temperature with flexible cable installation: "-5 C ...
  • Degree of protection: IP67
  • Piston diameter: 20 mm
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Compact Air Cylinder
  • Ambient temperature: -20 C ... 80 C
  • Switching status indication: LED yellow
  • Ambient temperature with flexible cable installation: "-5 C ...
  • Degree of protection: IP67
  • Piston diameter: 20 mm
  • Type code: ADVU
  • Cushioning: Elastic cushioning rings/pads at both ends
  • Mounting position: Any
  • Mode of operation: Double-acting
  • Piston rod end: Internal thread
  • Design: "Piston
  • Position sensing: For proximity sensor
  • Symbol: 991217
  • Variants: Piston rod at one end
  • Operating pressure: 1 bar ... 10 bar
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class (CRC): 2 - Moderate corrosion stress
  • Impact energy in the end positions: 0.14 J
  • Theoretical force at 6 bar, retracting: 141 N
  • Theoretical force at 6 bar, advancing: 188 N
  • Moving mass at 0 mm stroke: 20 g
  • Additional weight per 10 mm stroke: 23 g
  • Basic weight with 0 mm stroke: 149 g
  • Additional moving mass per 10 mm stroke: 6 g
  • Type of mounting: With through-hole Optionally: With accessories
  • Pneumatic connection: M5
  • Flange screws material: Steel, galvanized
  • Cover material: Wrought aluminum alloy
  • Material of dynamic seals: TPE-U(PU) NBR
  • Piston rod material: High-alloy stainless steel
  • Material of cylinder barrel: Wrought aluminum alloy
  • Stroke: 30 mm
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ADVU-20-30-P-A . Santa Clara Systems carries 1,027 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
