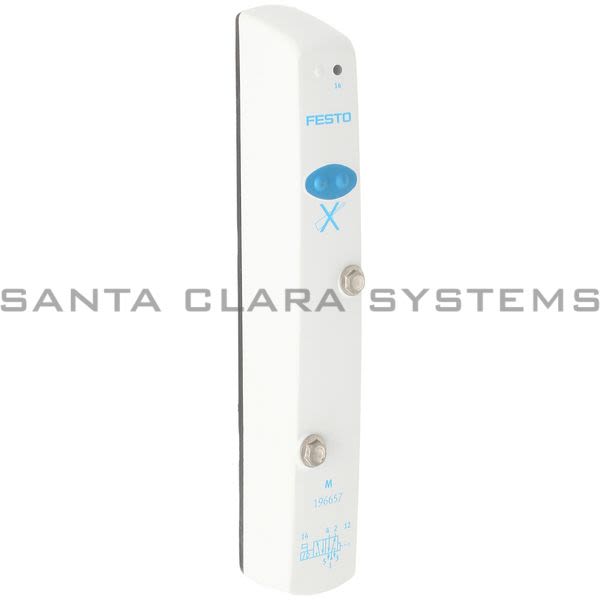

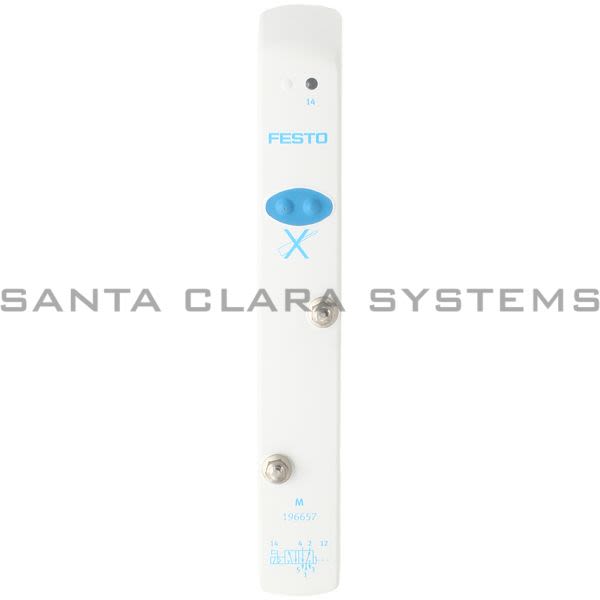

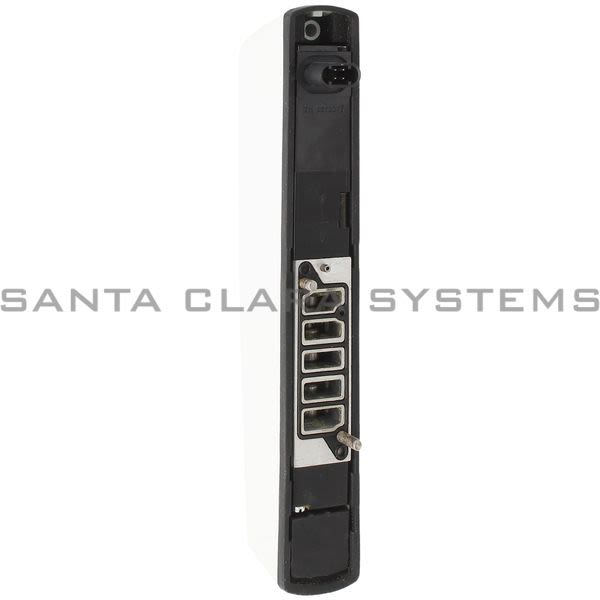

CDVI5.0-MT2H-5LS

Festo - Air Solenoid Valve

Current response time:

18 Minutes 56 Seconds

Description: Air Solenoid Valve
Ambient temperature: -5 °C ... 50 °C
Valve function: 5/2, monostable
Actuation type: Electrical
Standard nominal flow rate: 650 l/min
Pneumatic working port: Sub-base
Operating voltage: 24V DC
Operating pressure: -0.9 bar ... 10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Nominal width: 5 mm
Exhaust air function: With flow control option
Sealing principle: Soft
Manual override: Non-detenting
Type of control: Pilot-controlled
Pilot air supply port: External
Flow direction: Reversible

Symbol: 00991053
Pilot pressure: 3 bar ... 8 bar
B-value: 0.38
C value: 2.75 l/sbar
Switching time off: 22 ms
On switching time: 12 ms
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Temperature of medium: -5 °C ... 50 °C
Product weight: 195 g
Type of mounting: Screw-in
Pilot exhaust air port 82/84: Sub-base
Pneumatic connection 1 - 5: Sub-base
Seals material: NBR TPE-O
Housing material: Die-cast aluminum
