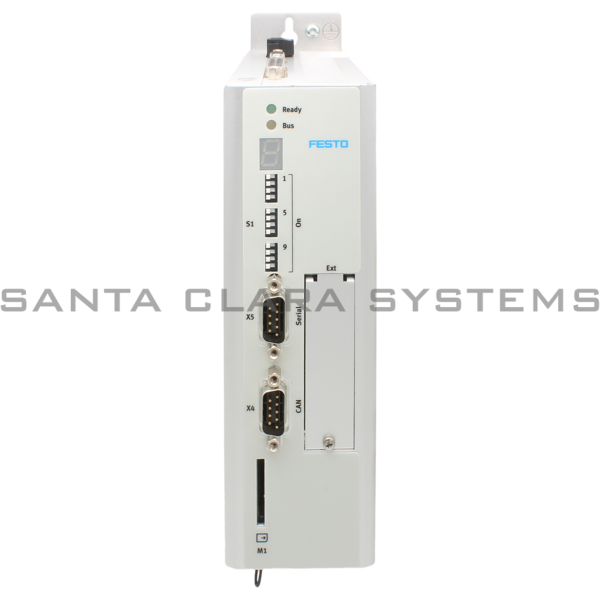

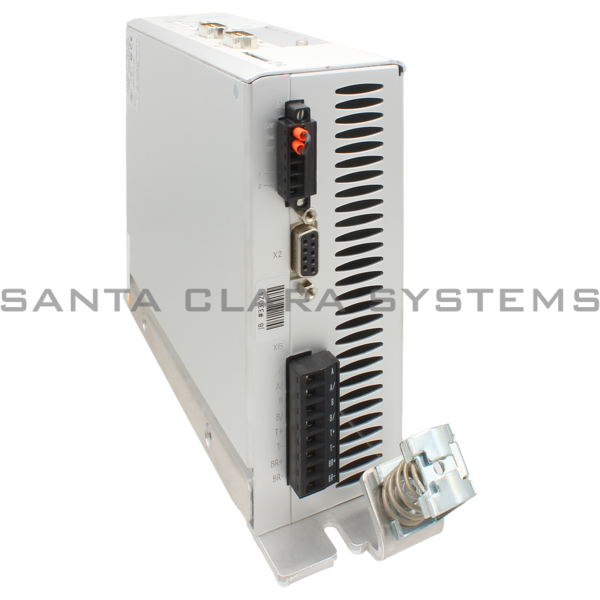

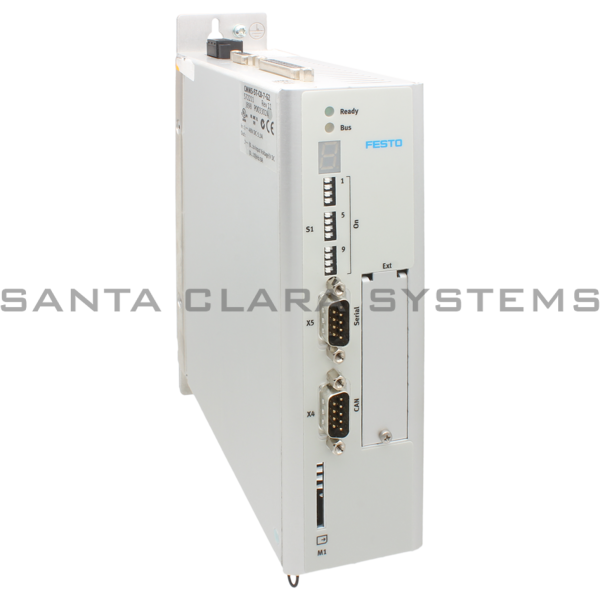

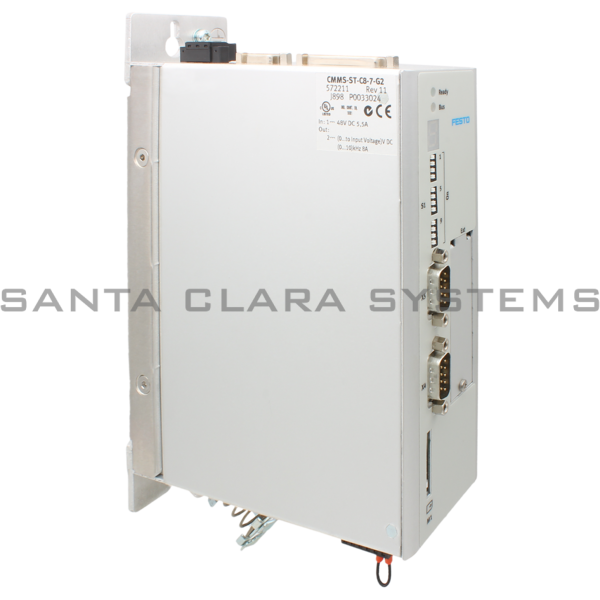

CMMS-ST-C8-7-G2

Festo - Motor Controller

Current response time:

By 5AM PT on Monday

Emergency?

Description: Motor Controller
Ambient temperature: 0 C ... 50 C
Type of mounting: On sub-base Screwed tightly
Product weight: 2000 g
Display: Seven-segment display
Control elements: DIL switch
Certification: BIA C-Tick c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive as per EU machinery directive As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC To UK instructions for machines To UK RoHS instructions
Certificate issuing authority: BG MFS 09031
Storage temperature: -25 C ... 70 C
Relative air humidity: 0 - 90 % Non-condensing
Degree of protection: IP20
Contamination level: 2
LABS (PWIS) conformity: VDMA24364-B2-L
Nominal current load supply: 8 A
Peak current, load supply: 12 A
Line filter: Integrated
Nominal voltage, load supply DC: 48 V
Max. DC link voltage: 58 V
Braking resistor: 17 Ohm
Pulse power of braking resistor: 0.5 kVA
Nominal voltage, logic supply DC: 24 V
Permissible range of logic voltage: 20 %
Nominal current, logic supply: 0.2 A
Output voltage range AC: 0 V up to input voltage
Max. peak current duration: 2 s

Output frequency: 0 Hz ... 2000 Hz
Max. length of motor cable without ext. mains filter: 25 m
Controller operating mode: PWM MOSFET power output stage
Mode of operation: Micro step, >4000 steps/revolution
Adjustable current reduction: Via software
Step adjustment: Via software
Protective function: It monitoring Temperature monitoring Current monitoring Voltage failure detection Contouring error monitoring
Nominal current setting: Via software
Max. step frequency: 4 kHz
Parameterization interface: RS232 (9600...115000 bits/s)
Fieldbus coupling: CANopen Profibus DP
Bus connection: Plug 9-pin Sub-D
Bus terminal resistance: Integrated
Rotor position sensor: Encoder
Position sensor: Encoder
Output encoder interface, function: Setpoint specification for downstream slave actuator.
Encoder interface input, characteristics: RS422
Input encoder interface, function: As speed setting of the slave actuator in synchronous mode.
Characteristics of digital logic outputs: Freely configurable in some cases Not galvanically isolated
Max. current of digital logic outputs: 100 mA
Number of analog setpoint inputs: 1
Work range of setpoint input: 10 V
Impedance of setpoint input: 20 kOhm
Number of analog monitor outputs: 1
Working range of monitor outputs: 10 V
Safety function: Safe torque off (STO)
Performance Level (PL): Safe torque off (STO)/category 3, performance level d
