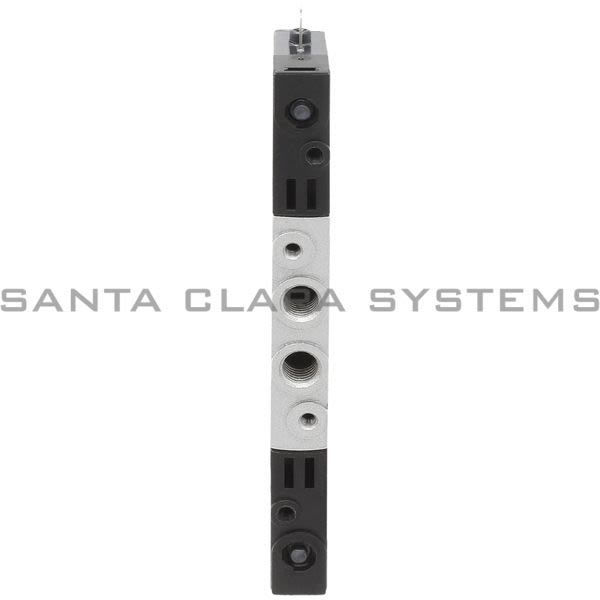

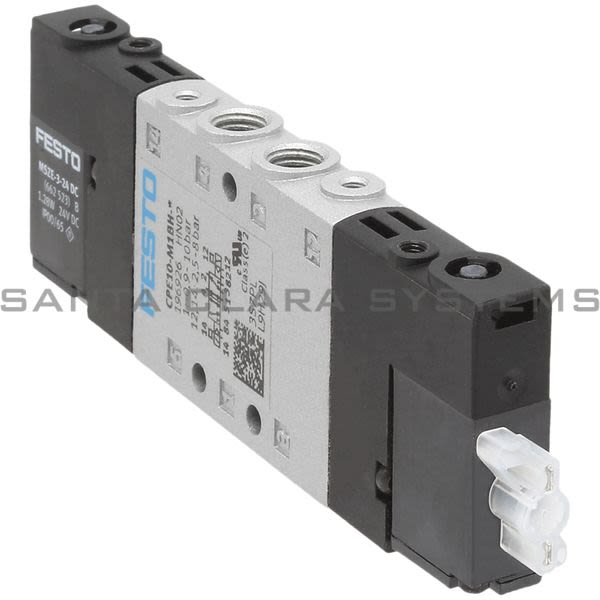

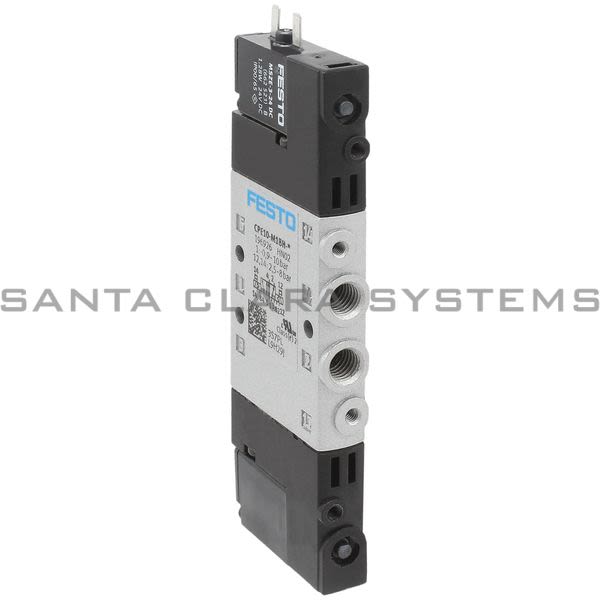

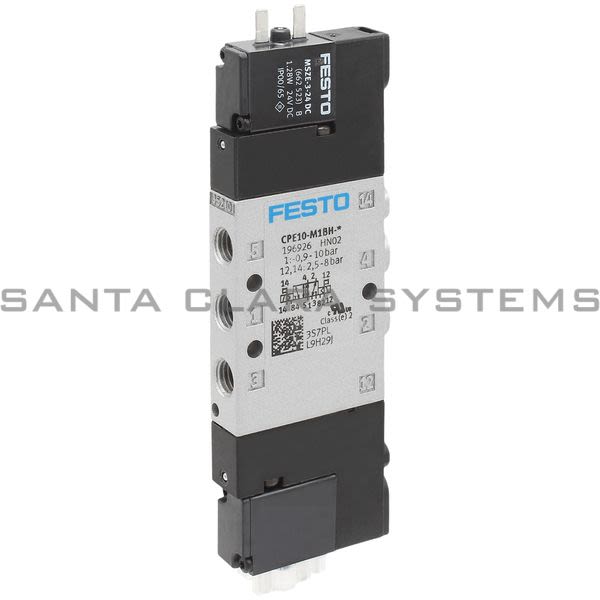

CPE10-M1BH-5JS-M7

Festo - Air Solenoid Valve

Current response time:

13 Minutes 56 Seconds

Description: Air Solenoid Valve
Width: 10 mm
Ambient temperature: -5 C ...50 C
Electrical connection: 2-pin
Valve function: 5/2, bistable
Maritime classification: See certificate
Lap: Overlap
Actuation type: Electrical
Standard nominal flow rate: 350 l/min
Pneumatic working port: M7
Operating voltage: 24V DC
Operating pressure: -0.9 bar ...10 bar
Design: Piston gate valve
Degree of protection: as per IEC 60529 With plug socket IP65
Certification: c UL us - Recognized (OL)
Nominal width: 4 mm
Type code: CPE10
Exhaust air function: With flow control option
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting via accessory Non-detenting
Type of control: Pilot-controlled
Pilot air supply port: External

Flow direction: Reversible
Symbol: 991016
Valve position ID: Label holder
Pilot pressure: 2.5 bar ... 8 bar
Changeover time: 8 ms
Duty cycle: 100% in combination with holding current reduction through
Max. positive test pulse with 0 signal: 1200 s
Max. negative test pulse on 1 signal: 900 s
Coil characteristics: 24 V DC: 1.28 W
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Product weight: 68 g
Type of mounting: With through-hole
Pilot exhaust air port 82: M3
Pilot exhaust air port 84: M3
Pilot air port 12: M3
Pilot air port 14: M3
Pneumatic connection 1: M7
Pneumatic connection 2: M7
Pneumatic connection 3: M7
Pneumatic connection 4: M7
Pneumatic connection 5: M7
Seals material: NBR
Housing material: Die-cast aluminum
