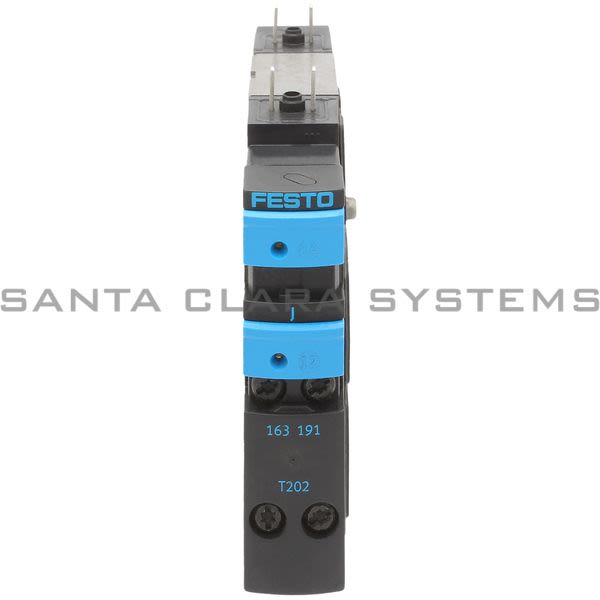

• Festo CPV18-M1H-5JS-1/4 Air Solenoid Valve Product Image

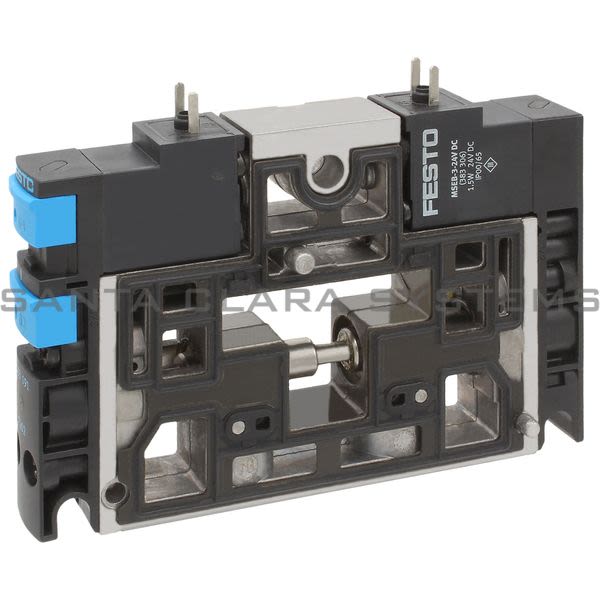

  • Festo CPV18-M1H-5JS-1/4 Air Solenoid Valve Product Image

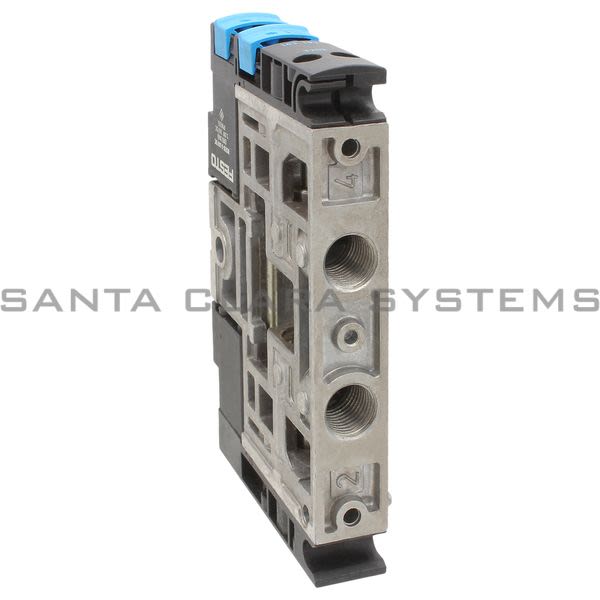

  • Festo CPV18-M1H-5JS-1/4 Air Solenoid Valve Product Image

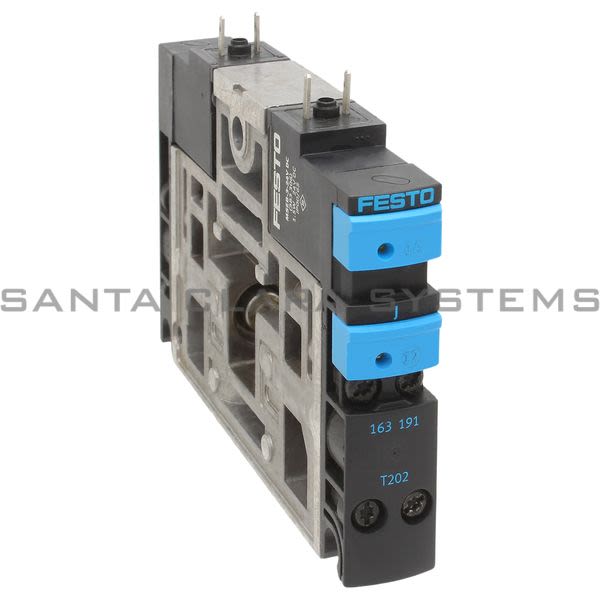

  • Festo CPV18-M1H-5JS-1/4 Air Solenoid Valve Product Image
  • Festo CPV18-M1H-5JS-1/4 Barcode

CPV18-M1H-5JS-1-4

Product Summary:

  • Ambient temperature: -5 C ...50 C
  • Valve function: 5/2 bistable
  • Lap: Overlap
  • Actuation type: Electrical
  • Valve size: 18 mm
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Air Solenoid Valve
  • Ambient temperature: -5 C ...50 C
  • Valve function: 5/2 bistable
  • Lap: Overlap
  • Actuation type: Electrical
  • Valve size: 18 mm
  • Standard nominal flow rate: 1600 l/min
  • Pneumatic working port: G1/4
  • Operating voltage: 24V DC
  • Operating pressure: -0.9 bar ...10 bar
  • Design: Piston gate valve
  • Degree of protection: IP65
  • Certification: C-Tick
  • Nominal width: 8 mm
  • Type code: CPV18
  • Exhaust air function: Without flow control option
  • Sealing principle: Soft
  • Mounting position: Any
  • Manual override: Detenting Non-detenting
  • Type of control: Pilot-controlled
  • Pilot air supply port: External Internal
  • Flow direction: Non-reversible
  • Symbol: 991683
  • Pilot pressure: 2 bar ... 8 bar
  • B-value: 0.38
  • C value: 6.3 l/sbar
  • Changeover time: 12 ms
  • Storage temperature: -20 C ...40 C
  • Temperature of medium: -5 C ...50 C
  • Product weight: 260 g
  • Type of mounting: With through-hole
  • Pilot air port 12/14: Common port
  • Pilot exhaust air port 82/84: Common port
  • Pneumatic connection 1: Common port
  • Pneumatic connection 11: Common port
  • Pneumatic connection 2: G
  • Pneumatic port 3/5 combined: Common port
  • Pneumatic connection 4: G1/4
  • Seals material: HNBR NBR
  • Housing material: Steel PPS Brass Die-cast aluminum POM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CPV18-M1H-5JS-1-4 . Santa Clara Systems carries 470 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • 163191
