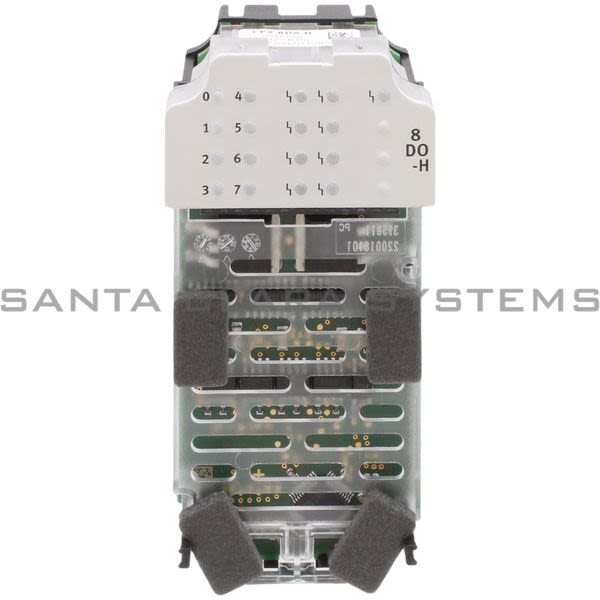

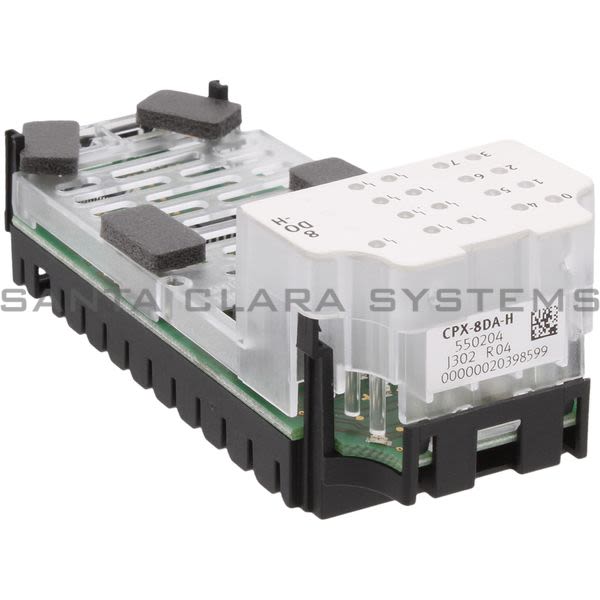

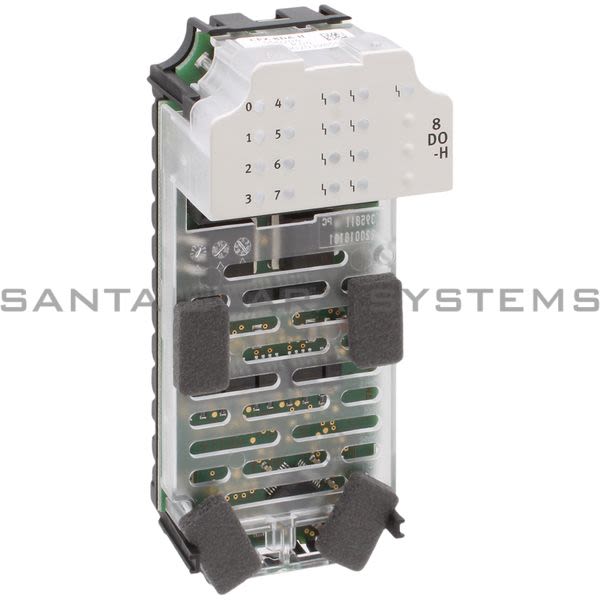

CPX-8DA-H

Festo - Output Module

Product Summary:

Dimensions W x L x H: 50 mm x 107 mm x 50 mm
Switching logic at outputs: PNP (positive switching)
Max. residual current of outputs per module: 8.4 A
Max. power supply per channel: 2.1 A (50 W lamp load), per channel pair
Electrical isolation between channels: No

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Output Module
Dimensions W x L x H: 50 mm x 107 mm x 50 mm
Switching logic at outputs: PNP (positive switching)
Max. residual current of outputs per module: 8.4 A
Fuse protection (short circuit): Internal electronic fuse per channel - Additional safety fuse
Max. power supply per channel: 2.1 A (50 W lamp load), per channel pair
Electrical isolation between channel and internal bus: Yes, when using intermediate feed
Electrical isolation between channels: No
Characteristic curve outputs: Based on IEC1131-T2
Intrinsic current consumption at nominal operating voltage: Typ. 34 mA

Nominal operating voltage DC: 24 V
DC operating voltage range: 18 V ... 30 V
Parameterization: Fail-safe modes per channel - Forcing per channel - Idle mode per channel - Response to short circuit - Module monitoring
No. of outputs: 8
Diagnostics: Short circuit/overload per channel - Undervoltage of outputs
LED indicators: 1 group diagnostics - 8 channel diagnostics - 8 channel status
Housing material: PC
LABS (PWIS) conformity: VDMA24364-B2-L
Degree of protection: Depends on manifold block
