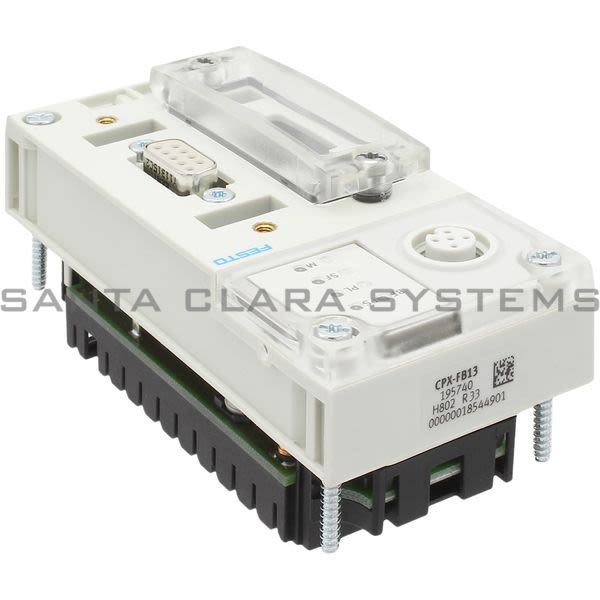

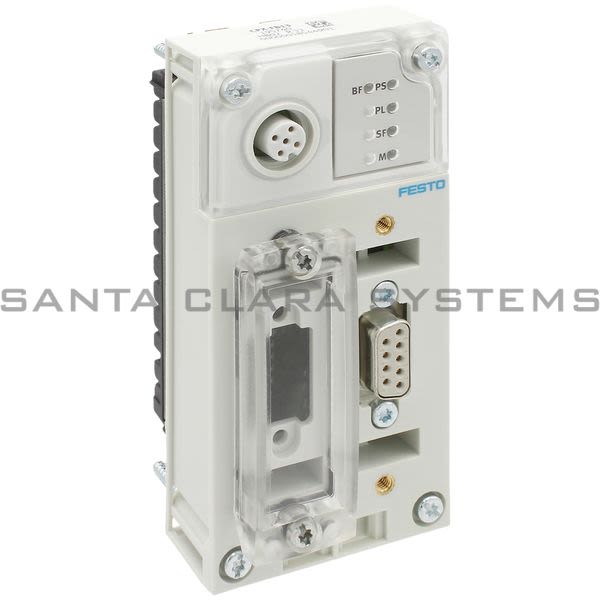

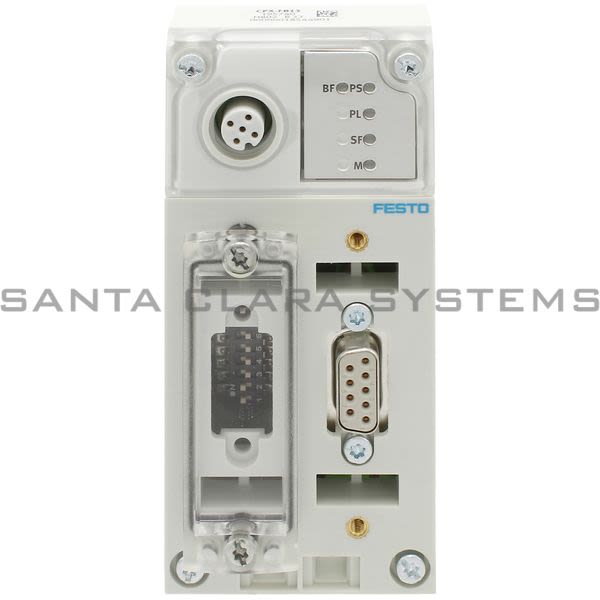

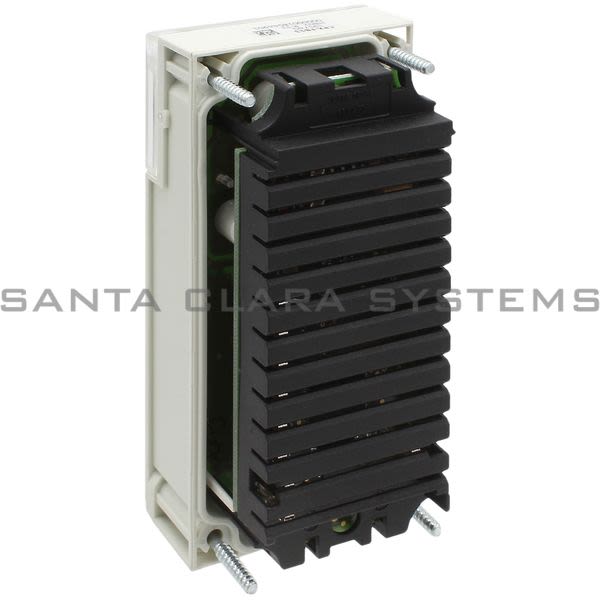

CPX-FB13

Festo - Bus Node

Current response time:

6 Minutes 43 Seconds

Description: Bus Node
Ambient temperature: -5 C ... 50 C
Protocol: Profibus DP
Dimensions W x L x H: (incl. interlinking block) 50 mm x 107 mm x 50 mm
Product weight: 115 g
Storage temperature: -20 C ... 70 C
Degree of protection: IP65 IP67
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Housing material: PA-reinforced PC
LED display (product-specific): M: Modify, parameterization PL: load supply PS: electronics supply, sensor supply SF: system fault
LED display (bus-specific): BF: bus fault
Device-specific diagnostics: Channel-oriented and module-oriented diagnostics Undervoltage of modules Diagnostic memory

Control elements: DIL switch
Fieldbus interface: 2x M12x1, 5-pin, B-coded Sub-D socket, 9-pin Customizable Sub-D plug
Max. address capacity inputs: 64 byte
Max. address capacity outputs: 64 byte
Parameterization: Diagnostic behavior Fail-safe response forcing of channels Signal setup System parameter
Baud rate: 96 ... 12000 kbit/s
Configuration support: GSD file
Additional functions: Acyclic data access via "DPV1" Channel-based diagnostics via fieldbus Start-up parameterization in plain text via fieldbus System status can be indicated via process data Additional diagnostic interface for operator units
DC operating voltage range: 18 V ... 30 V
Nominal operating voltage DC: 24 V
Intrinsic current consumption at nominal operating voltage: Typ. 200 mA
Communication types: DPV0: cyclic communication DPV1: acyclic communication
