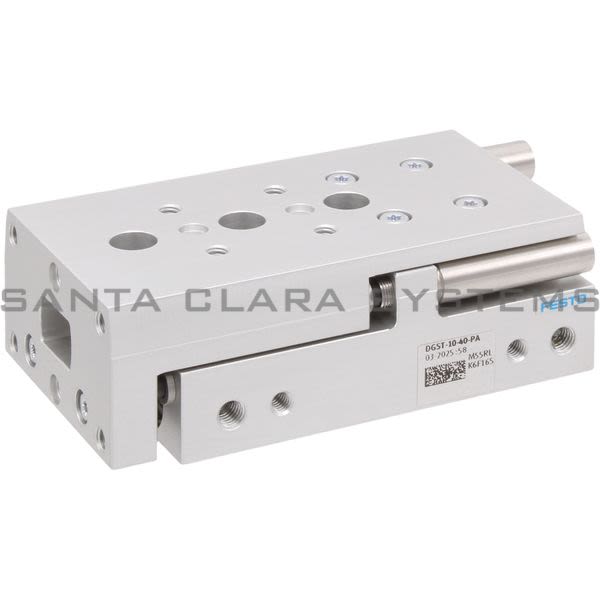

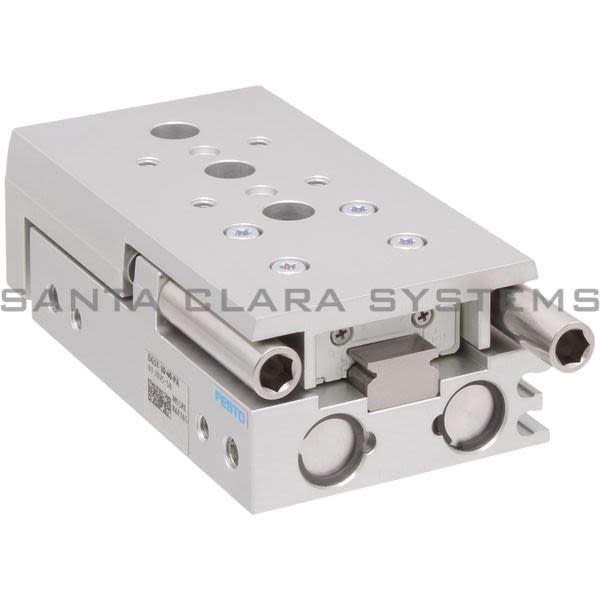

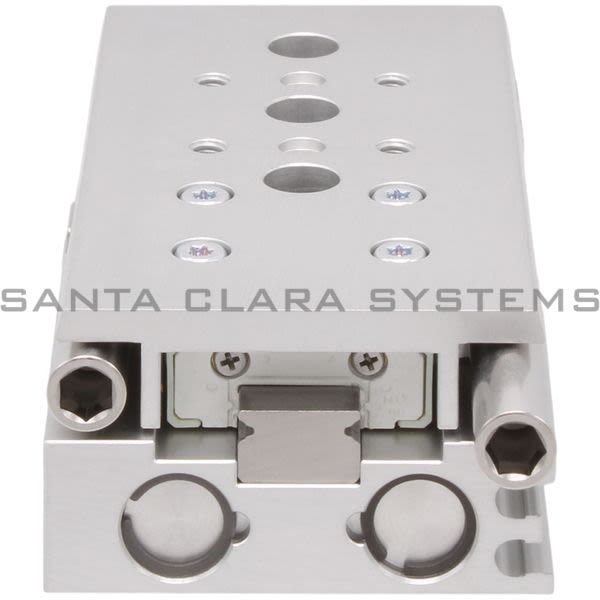

DGST-10-40-PA

Festo - Mini Slide

Current response time:

11 Minutes 23 Seconds

Description: Mini Slide
Ambient temperature: -10 °C ... 60 °C
Stroke: 40 mm
Adjustable end-position range/front length: 16.7 mm
Adjustable end-position range/rear length: 15.1 mm
Piston diameter: 10 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Recirculating ball bearing guide
Structural design: Twin piston - Yoke - Piston rod - Slide
Position sensing: For proximity sensor
Symbol: 00991249
Operating pressure: 0.1 MPa ... 0.8 MPa
Max. speed: 0.8 m/s
Repetition accuracy: <= 0.3 mm
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress

LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom class: Class 6 according to ISO 14644-1
Impact energy in the end positions: 0.08 J
Cushioning length: 1.5 mm
Max. force Fy: 500 N
Max. force Fz: 500 N
Max. torque Mx: 4 Nm
Max. torque My: 4.5 Nm
Max. torque Mz: 4.5 Nm
Theoretical force at 6 bar, retracting: 79 N
Theoretical force at 6 bar, advancing: 94 N
Moving mass: 176.7 g
Product weight: 347.4 g
Type of mounting: With through-hole
Pneumatic connection: M5
Cover material: Wrought aluminum alloy
Seals material: HNBR
Guide material: POM - TPE-E - High-alloy steel
Housing material: Wrought aluminum alloy
Piston rod material: High-alloy stainless steel
