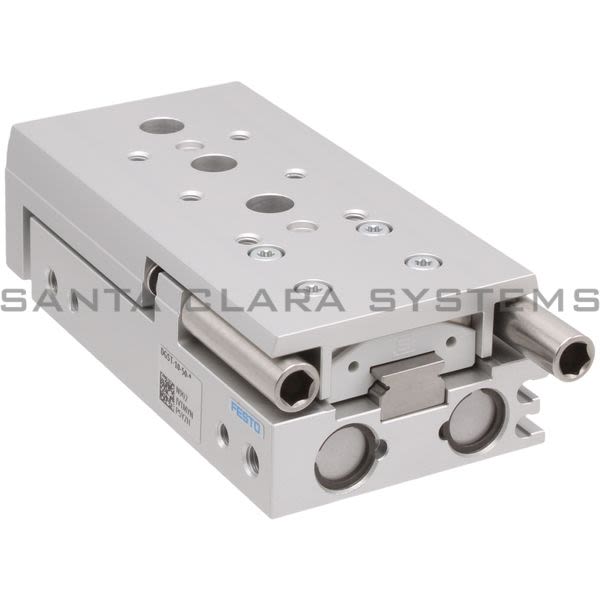

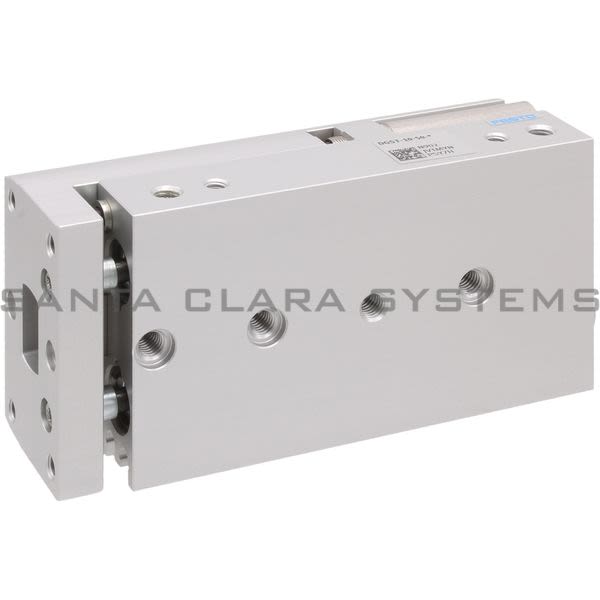

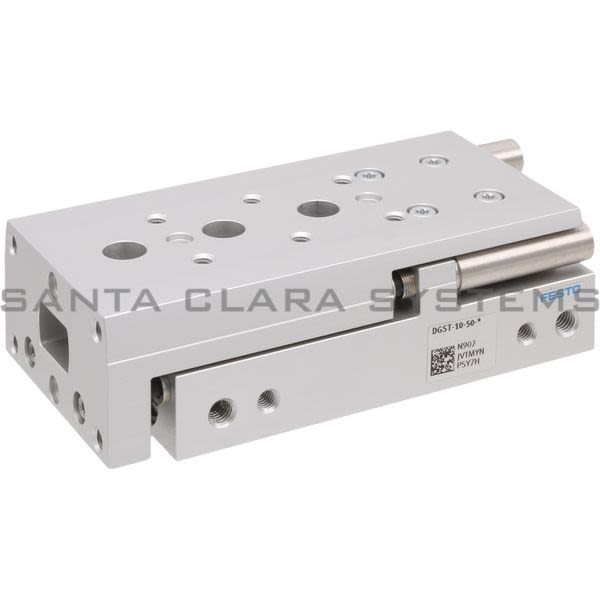

DGST-10-50-PA

Festo - Mini Slide

Product Summary:

Stroke: 50 mm
Adjustable end-position range/front length: 16.7 mm
Adjustable end-position range/rear length: 15.1 mm
Piston diameter: 10 mm
Drive unit operating mode: Yoke

Current response time:

7 Minutes 31 Seconds

Description: Mini Slide
Stroke: 50 mm
Adjustable end-position range/front length: 16.7 mm
Adjustable end-position range/rear length: 15.1 mm
Piston diameter: 10 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Recirculating ball bearing guide
Structural design: Twin piston - Yoke - Piston rod - Slide
Position sensing: For proximity sensor
Symbol: 00991249

Operating pressure: 0.1 MPa ... 0.8 MPa - 1 bar ... 8 bar - 14.5 psi ... 116 psi
Max. speed: 0.8 m/s
Repetition accuracy: <= 0.3 mm
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Cushioning length: 1.5 mm
Type of mounting: With through-hole
Pneumatic connection: M5
