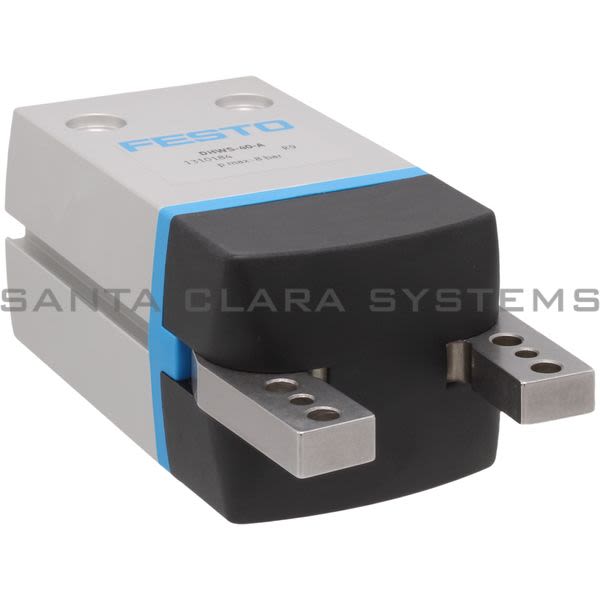

• Festo DHWS-40-A Angled Gripper Product Image

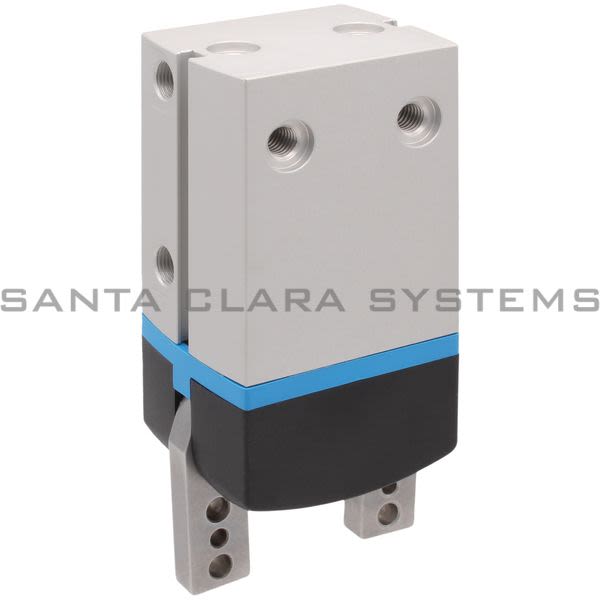

  • Festo DHWS-40-A Angled Gripper Product Image

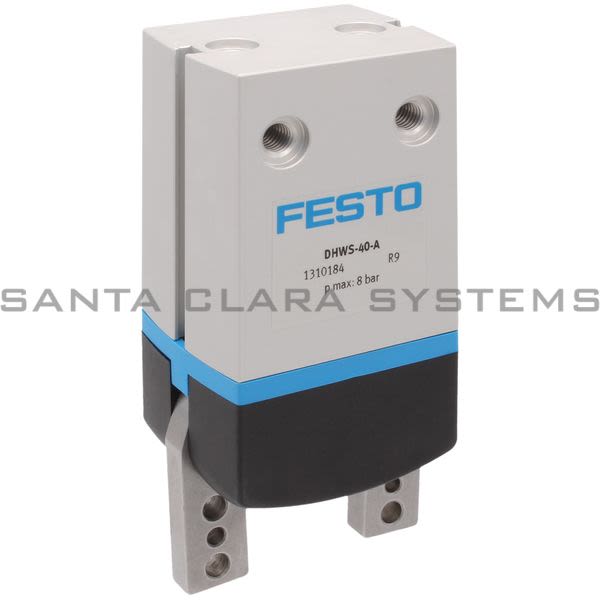

  • Festo DHWS-40-A Angled Gripper Product Image
  • Festo DHWS-40-A Barcode

DHWS-40-A

Get a Quote

Current response time:

16 Minutes 31 Seconds
  • Description: Angled Gripper
  • Size: 40
  • Ambient temperature: 5 C ... 60 C
  • Max. interchangeability: 0.2 mm
  • Max. opening angle: 40 deg
  • Rotational symmetry: 0.2 mm
  • Pneumatic gripper repetition accuracy: 0.04 mm
  • Number of gripper jaws: 2
  • Mounting position: Any
  • Mode of operation: Double-acting
  • Gripper function: Angle
  • Structural design: Lever
  • Position sensing: For proximity sensor
  • Symbol: 00991894
  • Operating pressure: 2 bar ... 8 bar
  • Max. operating frequency of pneumatic gripper: 3 Hz
  • Min. opening time at 6 bar: 63 ms
  • Min. closing time at 6 bar: 96 ms
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC): 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Suitability for the production of Li-ion batteries: Metals with more than 5% by mass of copper are excluded from use. Exception are printed circuit boards, cables, electrical connectors and coils
  • Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening: 1497 Ncm
  • Total gripping torque at 6 bar, closing: 1362 Ncm
  • Mass moment of inertia: 3.81 kgcm
  • Maximum force on gripper jaw Fz, static: 200 N
  • Maximum torque on gripper jaw, Mx static: 13 Nm
  • Maximum torque on gripper jaw, My static: 13 Nm
  • Maximum torque on gripper jaw, Mz static: 13 Nm
  • Product weight: 775 g
  • Type of mounting: Optionally: With internal thread and centering sleeve Via through-hole and centering sleeve
  • Pneumatic connection: G1/8
  • Cover cap material: PA
  • Housing material: Wrought aluminum alloy Hard-anodized
  • Gripper jaw material: High-alloy steel
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DHWS-40-A . Santa Clara Systems carries 5,560 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
