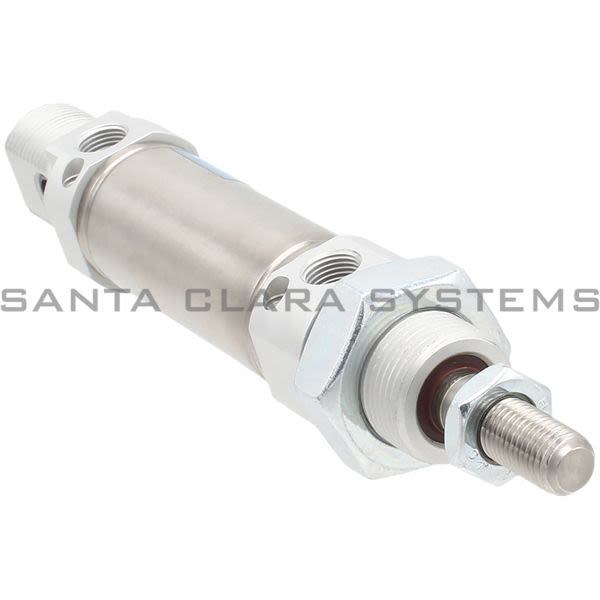

• Festo DSNU-25-25-PPV-A ISO Cylinder Product Image

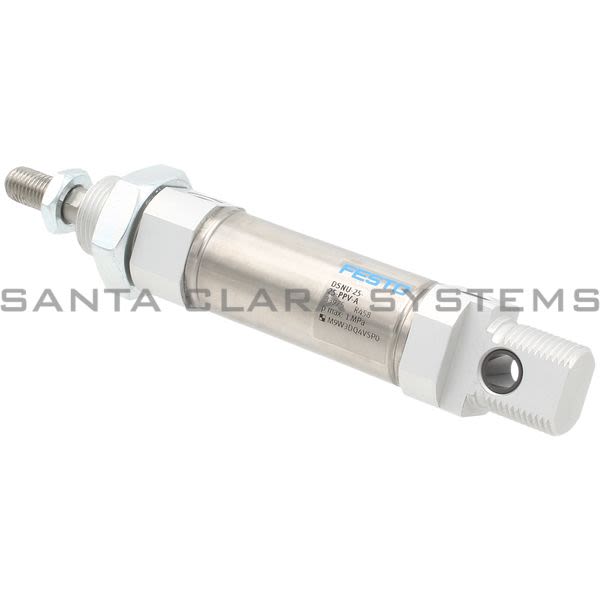

  • Festo DSNU-25-25-PPV-A ISO Cylinder Product Image
  • Festo DSNU-25-25-PPV-A Barcode

DSNU-25-25-PPV-A

Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: ISO Cylinder
  • Ambient temperature: -20 C ...80 C
  • Maritime classification: See certificate
  • Stroke: 25 mm
  • Piston diameter: 25 mm
  • Piston rod thread: M10x1.25
  • Type code: DSNU
  • Cushioning: Pneumatic cushioning, adjustable at both ends
  • Mounting position: Any
  • Conforms to standard: CETOP RP 52 P ISO 6432
  • Piston rod end: External thread
  • Design: Piston rod Piston Cylinder barrel
  • Position sensing: For proximity sensor
  • Symbol: 991235
  • Variants: Piston rod at one end
  • Operating pressure: 1 bar ...10 bar
  • Mode of operation: Double-acting
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC): 2 - Moderate corrosion stress
  • Impact energy in the end positions: 0.3 J
  • Cushioning length: 17 mm
  • Theoretical force at 6 bar, retracting: 247.4 N
  • Theoretical force at 6 bar, advancing: 294.5 N
  • Moving mass at 0 mm stroke: 71 g
  • Additional weight per 10 mm stroke: 11 g
  • Basic weight with 0 mm stroke: 238 g
  • Additional moving mass per 10 mm stroke: 6 g
  • Type of mounting: With accessories
  • Pneumatic connection: G1/8
  • Cover material: Plain anodized Wrought aluminum alloy
  • Seals material: NBR TPE-U(PU)
  • Piston rod material: High-alloy stainless steel
  • Material of cylinder barrel: High-alloy stainless steel
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DSNU-25-25-PPV-A . Santa Clara Systems carries 5,553 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
