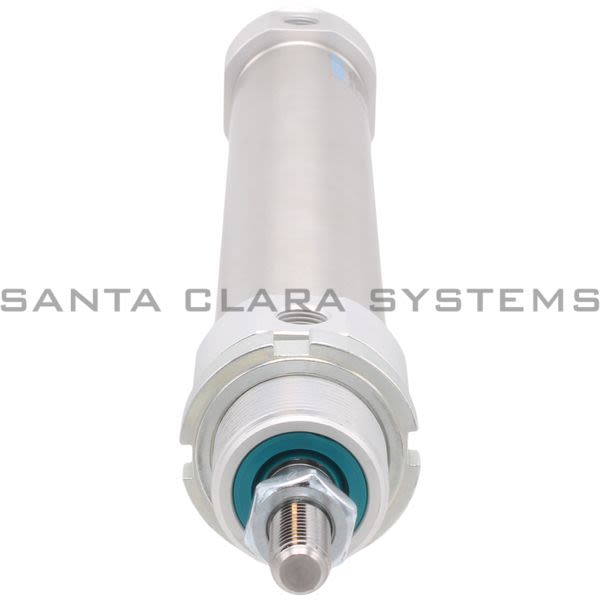

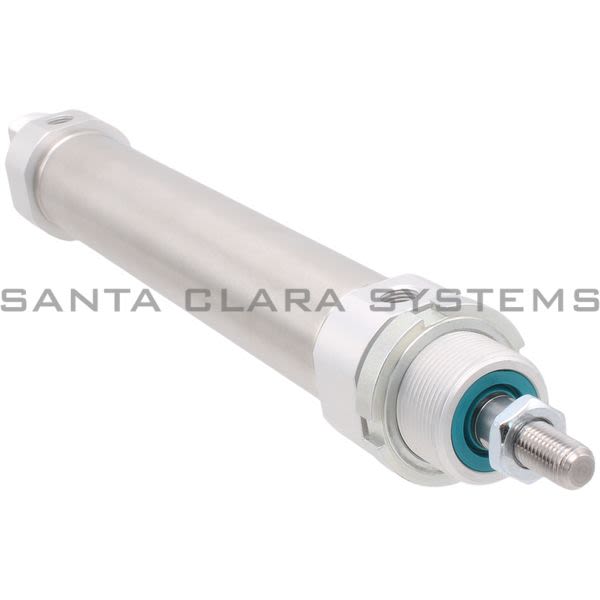

- Description: Round Cylinder
- Ambient temperature: -20 °C ... 80 °C
- Stroke: 160 mm
- Piston diameter: 32 mm
- Piston rod thread: M10x1.25
- Cushioning: Elastic cushioning rings/pads at both ends
- Mounting position: Any
- Structural design: Piston Piston rod Cylinder barrel
- Position sensing: For proximity sensor
- Symbol: 00991217
- Operating pressure MPa: 0.1 MPa ... 1 MPa
- Operating pressure: 1 bar ... 10 bar
- Mode of operation: Double-acting
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Cleanroom class: Class 6 according to ISO 14644-1
- Theoretical force at 6 bar, retracting: 415 N
- Theoretical force at 6 bar, advancing: 482.5 N
- Moving mass: 265 g
- Product weight: 619 g
- Type of mounting: With accessories
- Pneumatic connection: G1/8
- Cover material: Wrought aluminum alloy
- Seals material: NBR TPE-U(PU)
- Piston rod material: High-alloy steel
- Material of cylinder barrel: High-alloy stainless steel
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DSNU-32-160-P-A . Santa Clara Systems carries 9,543 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
