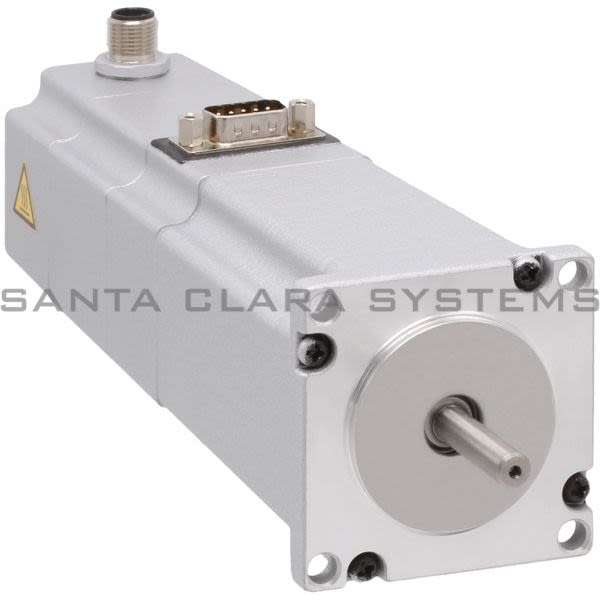

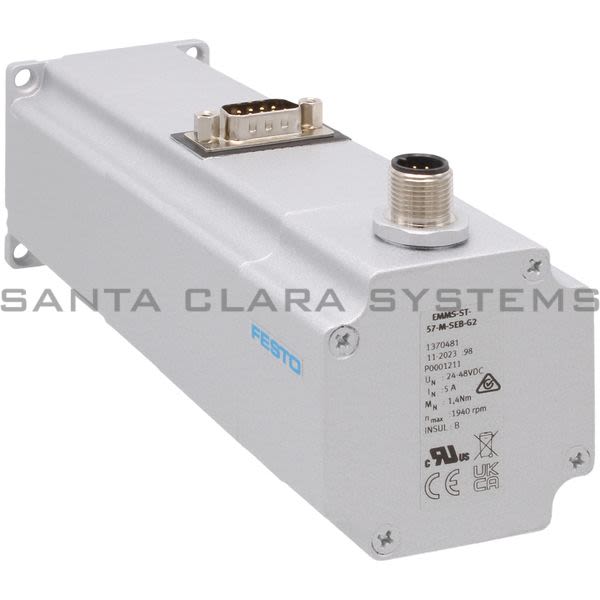

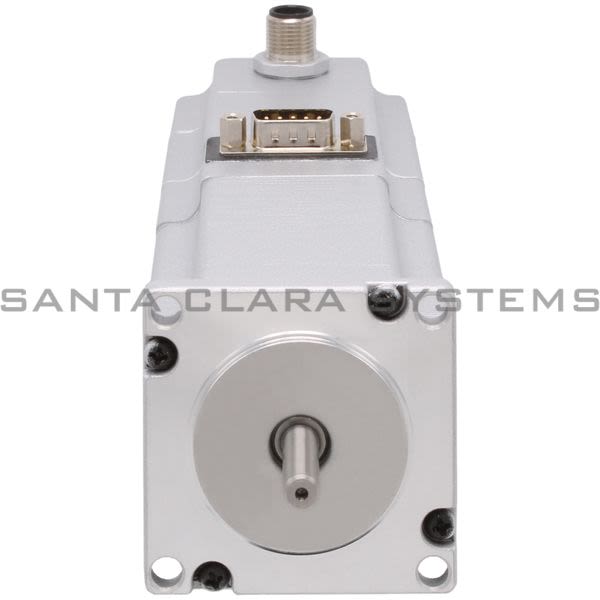

EMMS-ST-57-M-SEB-G2

Festo - Stepper Motor

Current response time:

By 5AM PT on Monday

Emergency?

Description: Stepper Motor
Ambient temperature: -10 C ... 50 C
Storage temperature: -20 C ... 70 C
Relative air humidity: 0 - 85 %
Conforms to standard: IEC 60034
Insulation protection class: B
Thermal class according to EN 60034-1: B
Rating class according to EN 60034-1: S1
Degree of protection: IP54
Electrical connection technology: Plug
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Certification: RCM compliance mark c UL us - Recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive
UKCA marking (see declaration of conformity): To UK instructions for EMC To UK RoHS instructions
Nominal operating voltage DC: 48 V
Motor holding torque: 1.4 Nm
Max. rotational speed: 1940 rpm

Step angle with full step: 1.8 deg
Step angle tolerance: 5%
Motor nominal current: 5 A
Voltage constant, phase: 25.5 mVmin
Phase winding resistance: 0.25 Ohm
Winding inductance phase: 0.95 mH
Rotor mass moment of inertia: 0.48 kgcm
Total output inertia moment: 0.5 kgcm
Product weight: 1380 g
Permissible axial shaft load: 10 N
Permissible radial shaft load: 52 N
Rotor position sensor: Incremental encoder
Rotor position sensor interface: RS422 TTL A/B channels + zero index
Rotor position sensor measuring principle: Optical
Brake holding torque: 1 Nm
Brake DC operating voltage: 24 V
Brake power consumption: 10 W
Brake mass moment of inertia: 0.02 kgcm

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on EMMS-ST-57-M-SEB-G2 . Santa Clara Systems carries 5,553 items from Festo.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
