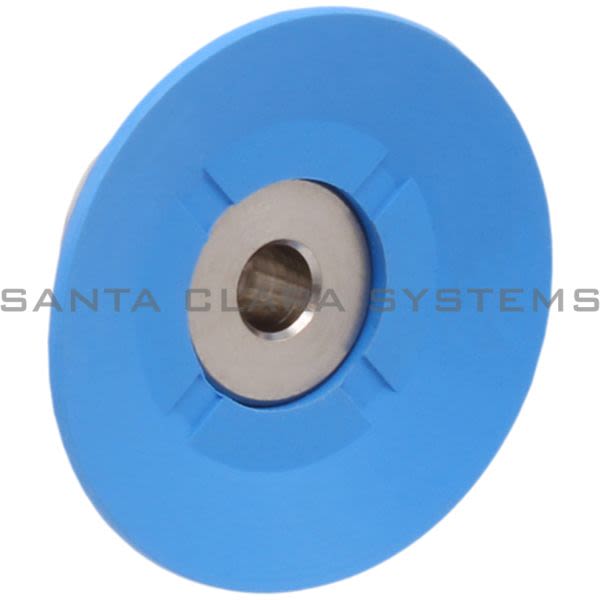

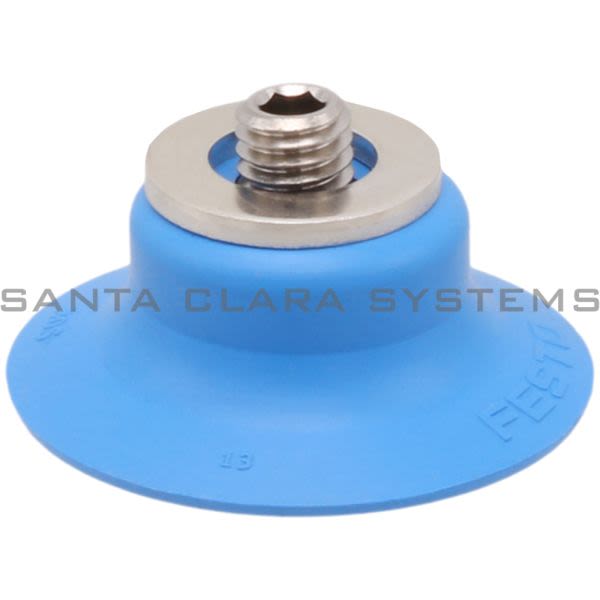

ESS-30-SU

Festo - Vacuum Suction Cup

Product Summary:

Ambient temperature: -20 °C ... 60 °C
Min. workpiece radius: 110 mm
Nominal width: 3 mm
Suction cup diameter: 30 mm
Suction cup volume: 0.867 cm³

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Vacuum Suction Cup
Ambient temperature: -20 °C ... 60 °C
Min. workpiece radius: 110 mm
Nominal width: 3 mm
Suction cup diameter: 30 mm
Suction cup volume: 0.867 cm³
Connection position: Top
Mounting position: Any
Symbol: 00991485
Classification of suction cup holder: Size 4
Suction cup shape: Round, flat
Operating pressure: -0.95 bar ... 0 bar
Nominal operating pressure: -0.7 bar

Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 zone III
For use in the food industry: See supplementary material information
Holding force at nominal operating pressure: 40.8 N
Lateral force at nominal operating pressure: 19 N
Product weight: 9 g
Type of mounting: Via vacuum connection
Vacuum connection: M6
Color: Blue
Shore hardness: 60 +/- 5
Material of screwed plug: Brass, nickel-plated - Steel, galvanized and chrome-plated
Suction cup material: PUR
