FVS-3-1-8

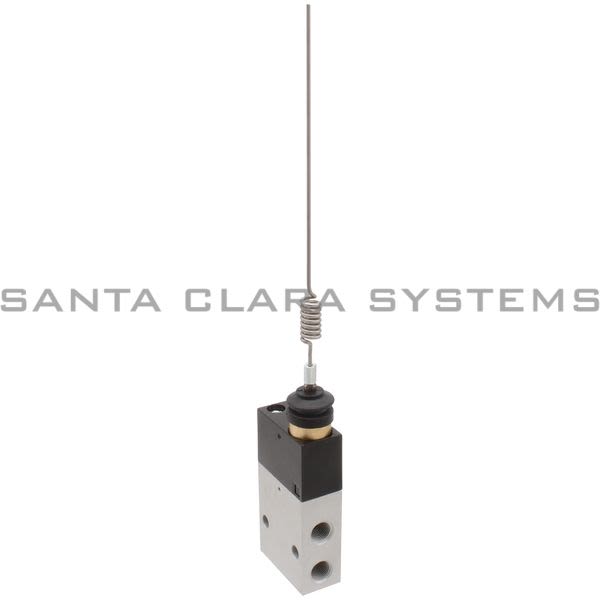

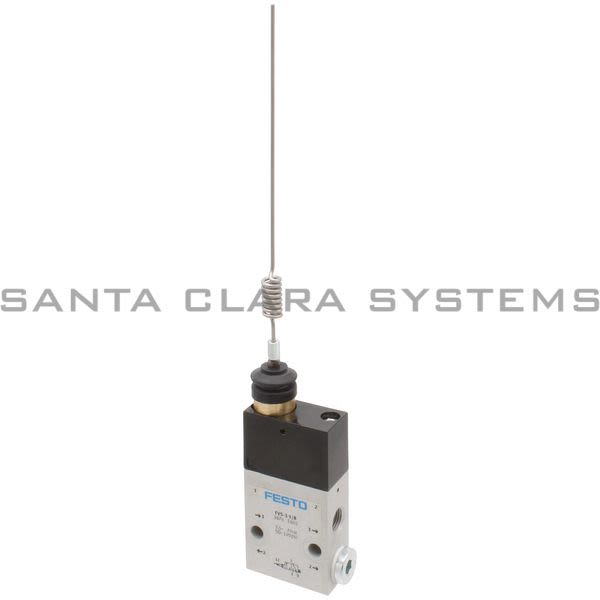

Festo - Whisker Valve

Current response time:

12 Minutes 30 Seconds

Description: Whisker Valve
Ambient temperature: -10 C ... 60 C
Valve function: 3/2, closed, monostable
Actuation type: Mechanical
Standard nominal flow rate: 146 l/min
Pneumatic working port: G1/8
Operating pressure: 0.35 MPa ... 0.8 MPa, 3.5 bar ... 8 bar
Structural design: Plate seat
Reset method: Mechanical spring
Nominal width: 3.5 mm
Exhaust air function: With flow control option
Sealing principle: Soft
Mounting position: Any
Type of control: Pilot-controlled
Pilot air supply port: Internal

Flow direction: Non-reversible
Symbol: 00991119
Pilot medium: Compressed air as per ISO 8573-1:2010 [-:-:-]
Note on forced dynamization: Switching frequency min. 1/year
Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -10 C ... 60 C
Product weight: 130 g
Type of mounting: With through-hole
Pneumatic connection 1 - 3: G1/8
Note on materials: RoHS-compliant
Seals material: NBR
Housing material: Aluminum, Anodized

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FVS-3-1-8 . Santa Clara Systems carries 6,210 items from Festo.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
