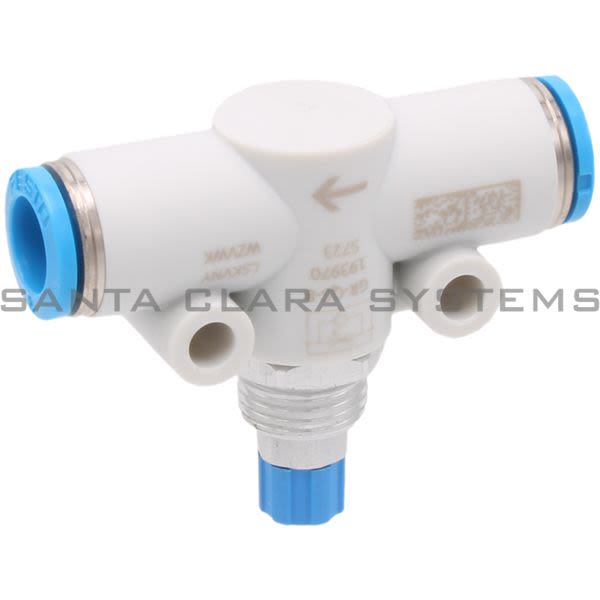

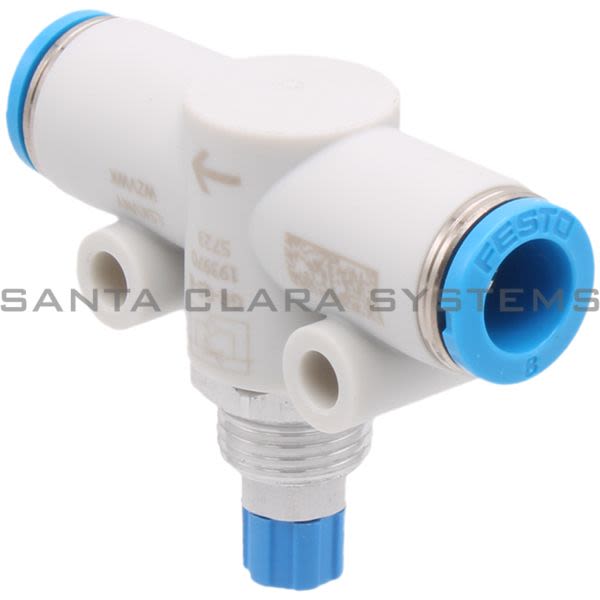

- Description: One-Way Flow Control Valve
- Ambient temperature: -10 °C ... 60 °C
- Valve function: Flow control non-return function
- Pneumatic connection 1: QS-8
- Pneumatic connection 2: QS-8
- Adjusting element: Knurled screw
- Type of mounting: Optionally: Front panel mounting With through-hole With accessories
- Standard nominal flow rate in flow control direction: 265 l/min
- Standard nominal flow rate in non-return direction: 500 l/min
- Operating pressure: 0.2 bar ... 10 bar
- Housing material: PA-reinforced
- Explosion prevention and protection: Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
- Mounting position: Any
- Symbol: 00991453
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Temperature of medium: -10 °C ... 60 °C
- Product weight: 23 g
- Seals material: NBR
- Releasing ring material: POM
- Knurled head material: PA-reinforced
- Material of adjusting screw: High-alloy steel
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GR-QS-8 . Santa Clara Systems carries 8,898 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
