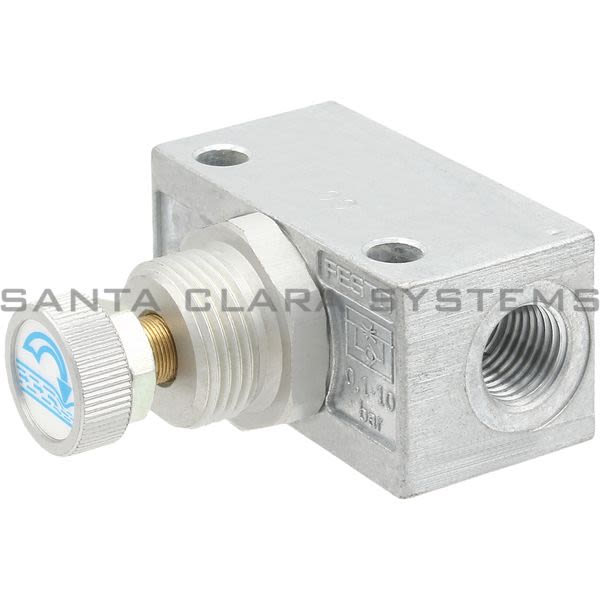

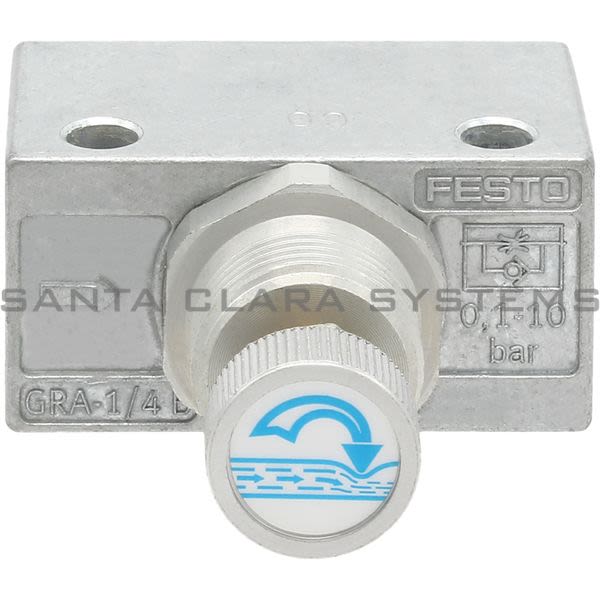

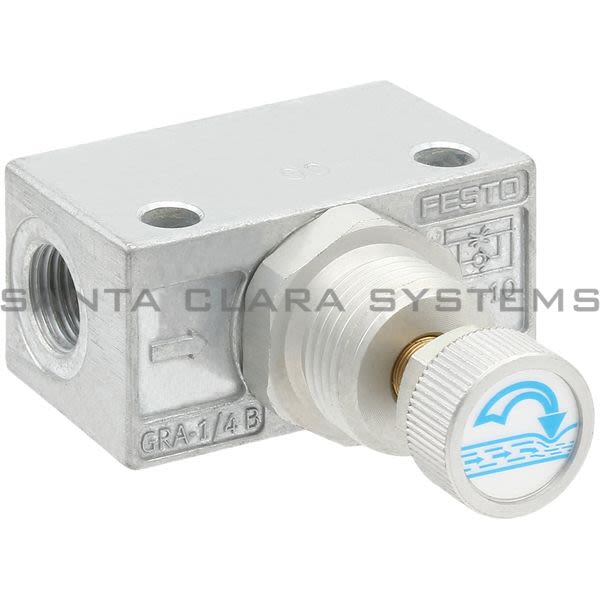

- Description: One-Way Flow Control Valve
- Ambient temperature: -20 C ... 75 C
- Valve function: Flow control non-return function
- Pneumatic connection 1: Internal thread G1/4
- Pneumatic connection 2: Internal thread G1/4
- Adjusting element: Knurled screw
- Type of mounting: Optionally: Front panel mounting With through-hole
- Standard nominal flow rate in flow control direction: 420 l/min
- Standard nominal flow rate in non-return direction: 780 l/min
- Operating pressure: 0.01 MPa ... 1 MPa - 0.1 bar ... 10 bar - 1.45 psi ... 145 psi
- Housing material: Die-cast zinc
- Explosion prevention and protection: Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
- Mounting position: Any
- Symbol: 00991453
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Storage temperature: -20 C ... 75 C
- Temperature of medium: -20 C ... 75 C
- Product weight: 180 g
- Seals material: NBR
- Material of adjusting screw: Brass
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GRA-1-4-B . Santa Clara Systems carries 6,210 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
