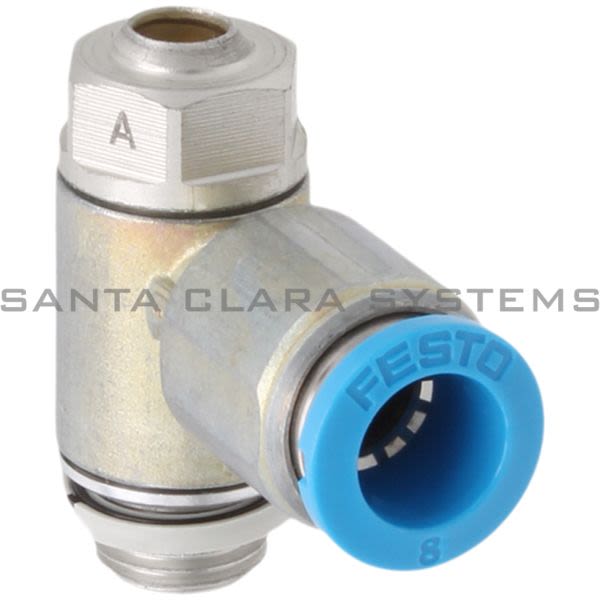

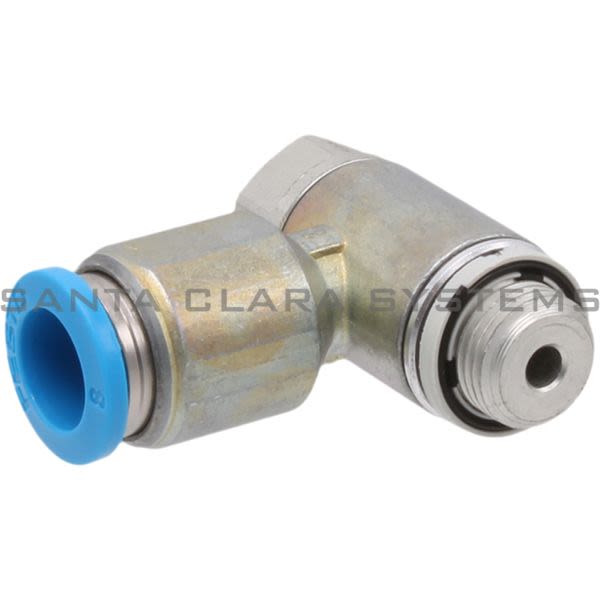

GRLA-1-8-QS-8-D

Festo - One-Way Flow Control Valve

Current response time:

13 Minutes 12 Seconds

Description: One-Way Flow Control Valve
Ambient temperature: -10 °C ... 60 °C
Valve function: Exhaust air flow control non-return function
Standard nominal flow rate in flow control direction: 215 l/min
Pneumatic connection 1: QS-8
Adjusting element: Slotted screw
Pneumatic connection 2: G1/8
Type of mounting: Screw-in
Standard nominal flow rate in non-return direction: 175 l/min ... 250 l/min
Maritime classification: See certificate
Mounting position: Any
Symbol: 00991452
Operating pressure for entire temperature range: 0.2 bar ... 10 bar
Standard flow rate in flow control direction 6 -> 0 bar: 400 l/min

Standard flow rate in non-return direction at 6 -> 0 bar: 330 l/min ... 410 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom class: Class 4 according to ISO 14644-1
Temperature of medium: -10 °C ... 60 °C
Nominal tightening torque: 3 Nm
Tolerance for nominal tightening torque: ± 10%
Product weight: 22 g
Material of screwed plug: Wrought aluminum alloy
Seals material: NBR
Releasing ring material: POM
Material of adjusting screw: Brass
Swivel joint material: Die-cast zinc, Chromated
