HE-2-QS-10

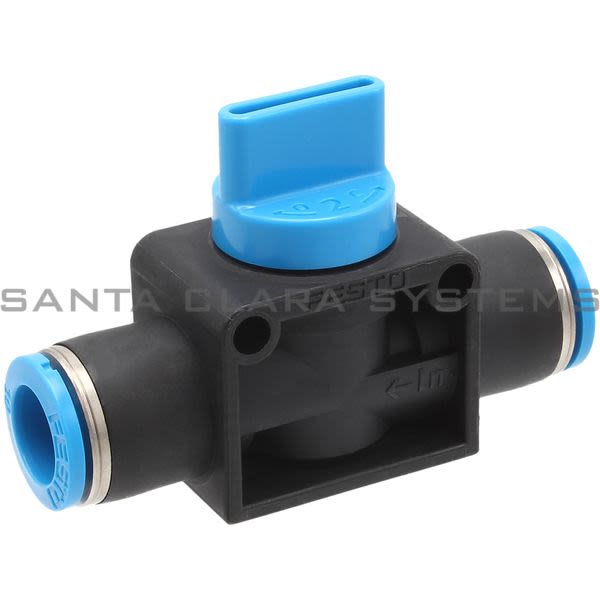

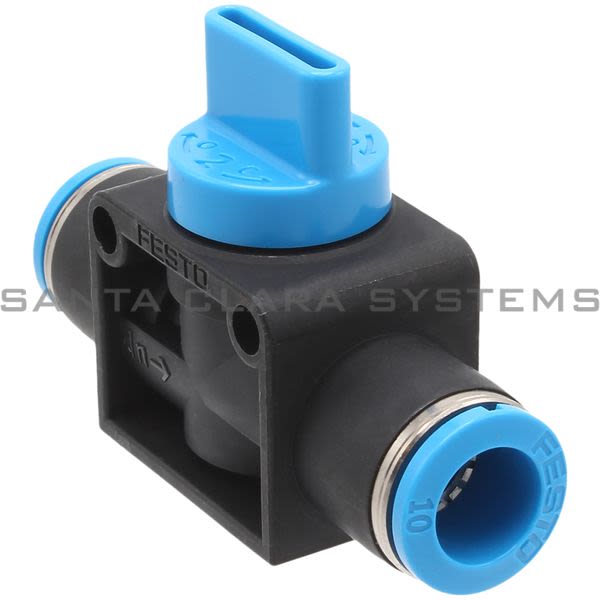

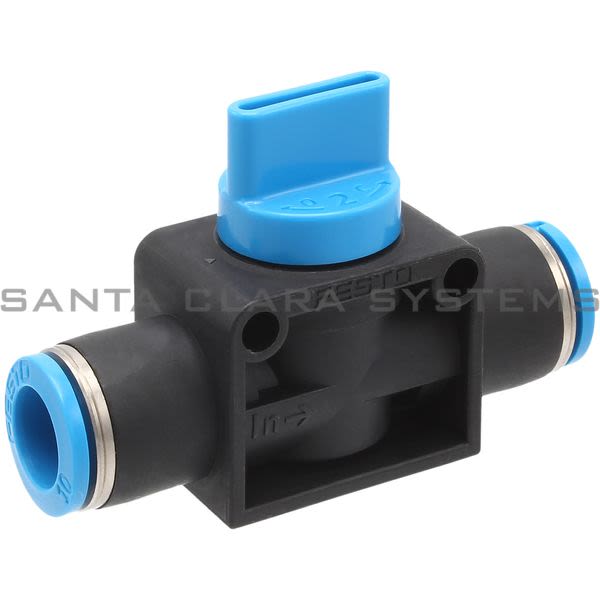

Festo - On Off Valve

Current response time:

4 Minutes 30 Seconds

Description: On Off Valve
Ambient temperature: 0 °C ... 60 °C
Valve function: 2/2 bistable
Pneumatic connection 1: QS-10
Normal nominal flow rate (normalized to DIN 1343): 752.4 l/min
Operating pressure: -0.95 bar - 10 bar
Actuation type: Manual
Pneumatic connection 2: QS-10
Type of mounting: Direct mounting via through-hole - Line installation
Nominal width: 4.7 mm
Housing material: PBT-reinforced

Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Sealing principle: Soft
Mounting position: Any
Structural design: Piston gate valve
Type of control: Direct
Flow direction: Reversible
Symbol: 00997328
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom class: Class 4 according to ISO 14644-1
