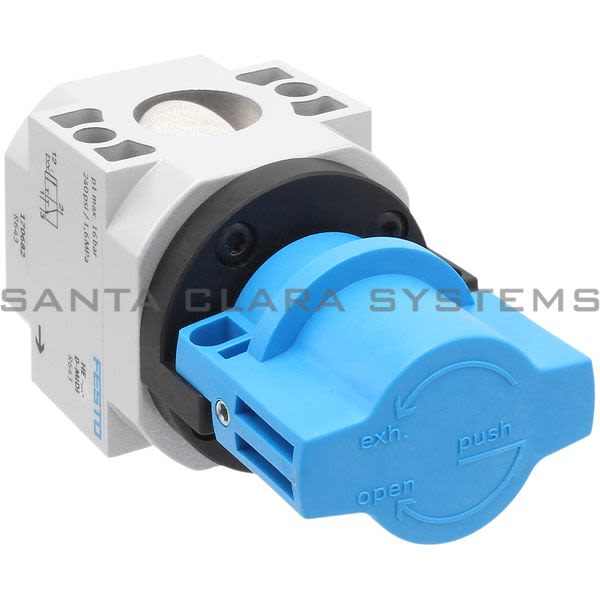

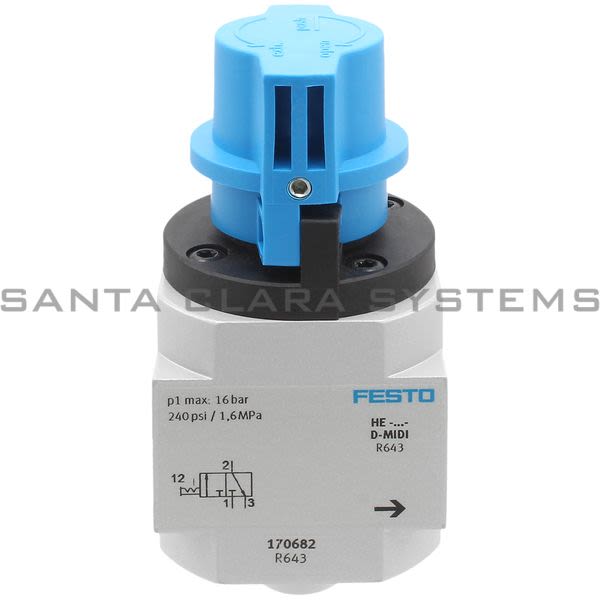

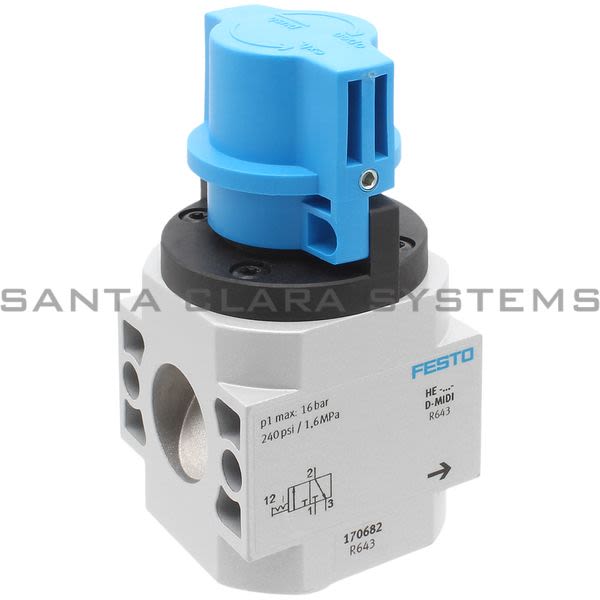

HE-D-MIDI

Festo - Shut off Valve

Current response time:

11 Minutes 6 Seconds

Description: Shut off Valve
Ambient temperature: -10 C ... 60 C
Structural design: Piston gate valve
Actuation type: Manual
Sealing principle: Soft
Exhaust air function: Without flow control option
Manual override: None
Symbol: 00995571
Valve function: 3/2, bistable
Operating pressure: 0 bar ... 16 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -10 C ... 60 C
Type of mounting: Line installation With accessories
Mounting position: Any
Flow direction: Non-reversible
Product weight: 511 g
Pneumatic connection 3: G1/4
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Seals material: NBR
Housing material: Die-cast aluminum
