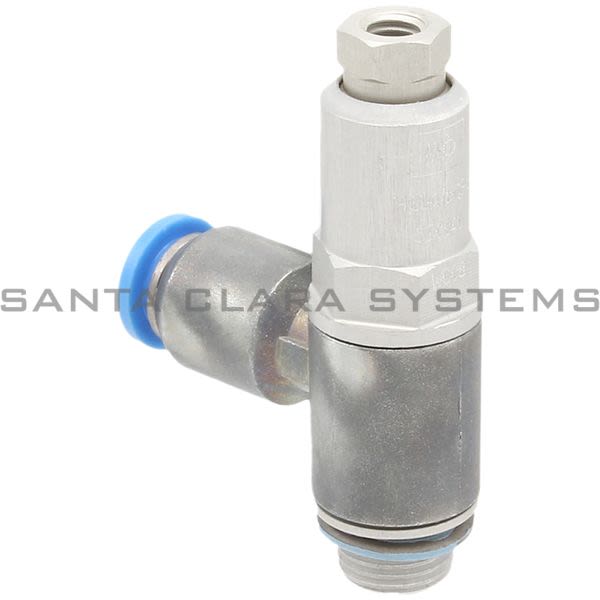

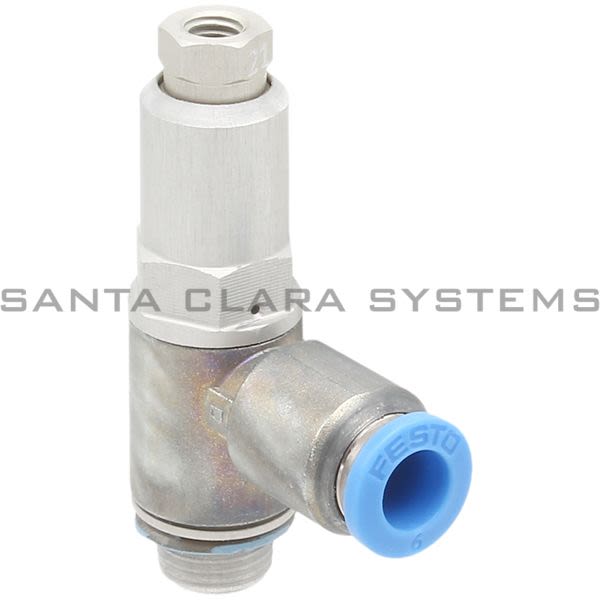

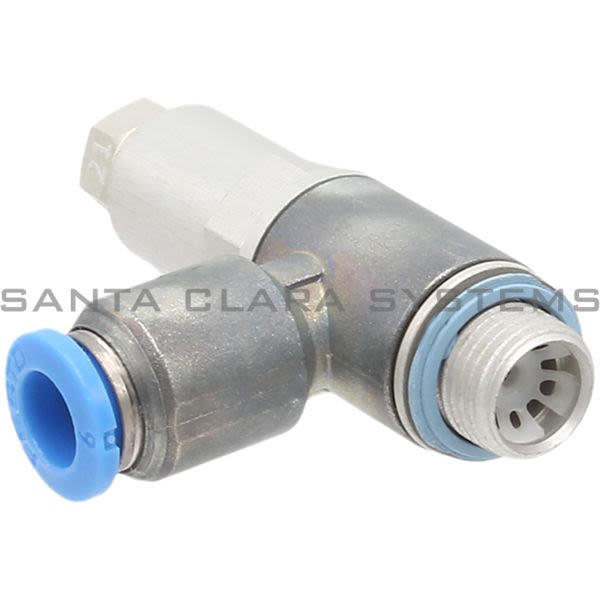

HGL-1-8-QS-6

Festo - Piloted Non Return Valve

Current response time:

11 Minutes 11 Seconds

Description: Piloted Non Return Valve
Ambient temperature: -10 C ... 60 C
Valve function: Unlockable non-return function
Pneumatic connection 1: QS-6
Pneumatic connection 2: G1/8
Pilot air port 21: M5
Actuation type: Pneumatic
Type of mounting: Screw-in With external thread
Operating pressure: 0.05 MPa ... 1 MPa, 0.5 bar ... 10 bar
Pilot pressure MPa: 0.2 MPa ... 1 MPa
Pilot pressure: 2 bar ... 10 bar
Pilot pressure psi: 29 psi ... 145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Maritime classification: See certificate
Mounting position: Any
Symbol: 00991456
Standard flow rate 1->2 (6-0): 400 l/min

Standard nominal flow rate 1->2 (6-5): 270 l/min
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom class: Class 4 according to ISO 14644-1
Storage temperature: -10 C ... 60 C
Temperature of medium: -10 C ... 60 C
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Nominal tightening torque: 3.5 Nm
Tolerance for nominal tightening torque: 10%
Product weight: 21.4 g
Seals material: NBR
Hollow bolt material: Wrought aluminum alloy Anodized
Releasing ring material: POM
Non-return collar material: NBR
Swivel joint material: Die-cast zinc
