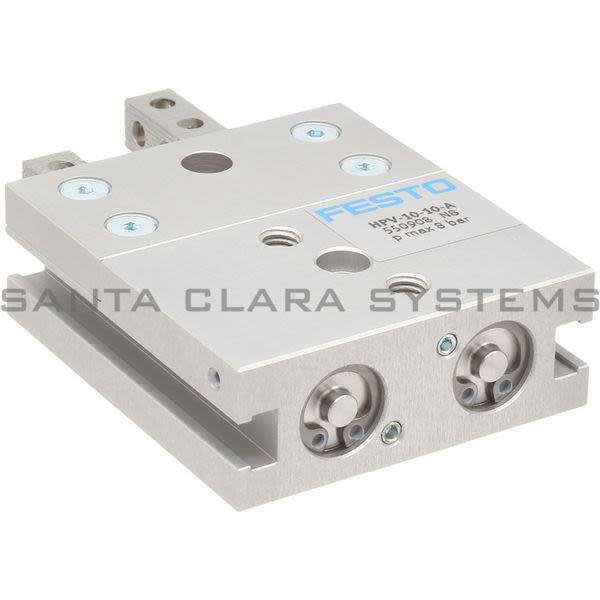

• Festo HPV-10-10-A Feed Separator Assembly Product Image

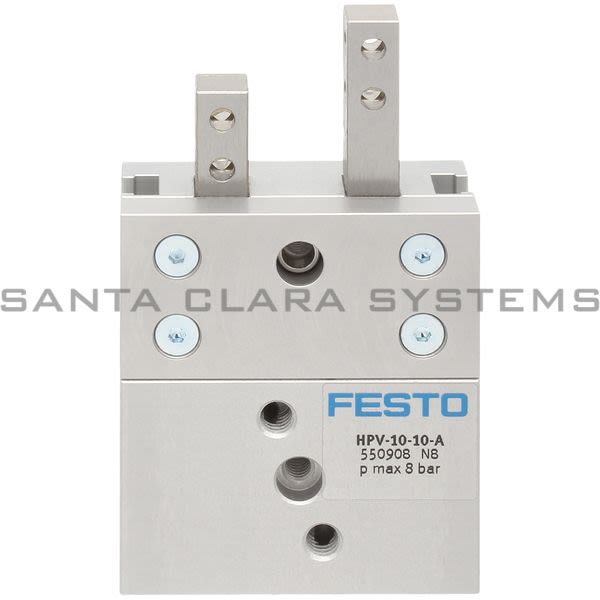

  • Festo HPV-10-10-A Feed Separator Assembly Product Image

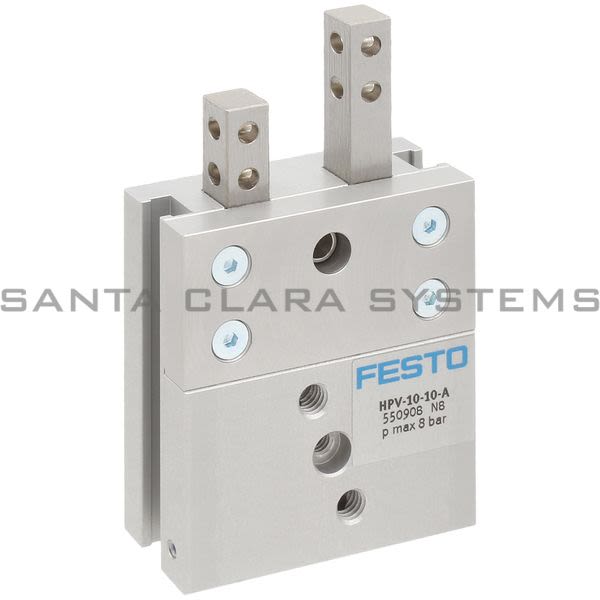

  • Festo HPV-10-10-A Feed Separator Assembly Product Image
  • Festo HPV-10-10-A Barcode

HPV-10-10-A

Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Feed Separator Assembly
  • Ambient temperature: 5 °C ... 60 °C
  • Stroke: 10 mm
  • Piston diameter: 10 mm
  • Max. interchangeability: 0.3 mm
  • Max. tappet play Sx: 0.05 mm
  • Max. tappet play Sz: 0.03 mm
  • Max. gripper jaw angular backlash: 0.12 deg
  • Max. gripper jaw angular backlash ay: 0.2 deg
  • Max. gripper jaw angular backlash az: 0.262 deg
  • External finger mounting: Through-hole
  • Cushioning: No cushioning
  • Mounting position: Any
  • Mode of operation: Double-acting
  • Structural design: Twin piston Piston rod Stop valve Anti-twist feature
  • Position sensing: For proximity sensor
  • Half pulse: 26.5 ms
  • Symbol: 00991914
  • Protection against torsion/guide: Square guide
  • Cycle time: 52.5 ms
  • Operating pressure: 3 bar ... 8 bar
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC): 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Max. force on finger Fz static: 75 N
  • Max. static moment Mr at finger: 3 Nm
  • Max. static moment Mx at finger: 3 Nm
  • Max. static moment at finger: 3 Nm
  • Theoretical force at 6 bar, retracting: 35 N
  • Theoretical force at 6 bar, advancing: 45 N
  • Product weight: 135 g
  • Max. mass per external gripper finger: 56 g
  • Alternative connections: M3
  • Type of mounting: Optionally: With internal thread and centering sleeve Via through-hole and centering sleeve
  • Pneumatic connection: M5
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HPV-10-10-A . Santa Clara Systems carries 7,168 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • 550908
  • HPV1010A
