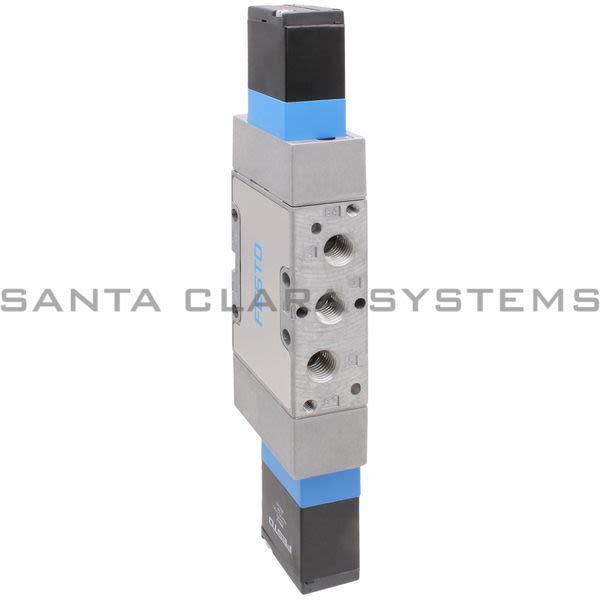

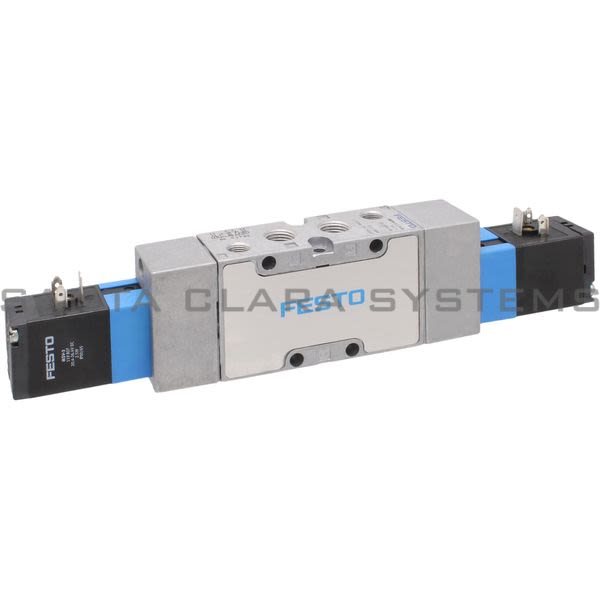

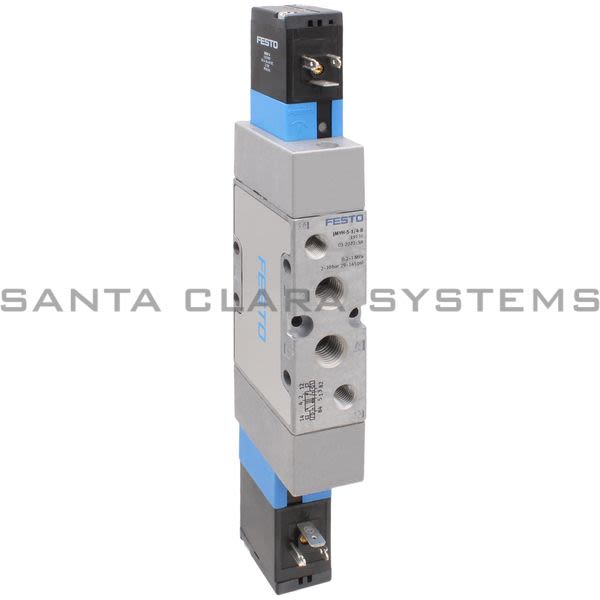

JMVH-5-1-4-B
Product Summary:
- Width: 32 mm
- Ambient temperature: -5 °C ... 50 °C
- Valve function: 5/2, bistable
- Actuation type: Electrical
- Normal nominal flow rate (normalized to DIN 1343): 1600 l/min
Get a Quote
Current response time:
15 Minutes 37 Seconds
- Description: Air Solenoid Valve
- Width: 32 mm
- Ambient temperature: -5 °C ... 50 °C
- Valve function: 5/2, bistable
- Actuation type: Electrical
- Normal nominal flow rate (normalized to DIN 1343): 1600 l/min
- Pneumatic working port: G1/4
- Operating pressure: 0.2 MPa ... 1 MPa, 2 bar ... 10 bar
- Structural design: Piston gate valve
- Nominal width: 10 mm
- Width dimension: 33 mm
- Exhaust air function: With flow control option
- Sealing principle: Soft
- Mounting position: Any
- Manual override: Non-detenting
- Type of control: Pilot-controlled
- Pilot air supply port: Internal
- Flow direction: Non-reversible
- Symbol: 00991013
- Lap: Overlap
- B-value: 0.38
- C value: 6.35 l/sbar
- Max. switching frequency: 3 Hz
- Changeover time: 16 ms
- Max. positive test pulse with 0 signal: 2200 µs
- Max. negative test pulse on 1 signal: 3700 µs
- Coil characteristics: 24 V DC: 2.5 W
- Permissible voltage fluctuations: +/- 10 %
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 1 - Low corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Storage temperature: -40 °C ... 60 °C
- Temperature of medium: -5 °C ... 50 °C
- Product weight: 615 g
- Type of mounting: On PR rail, With through-hole
- Pilot exhaust air port 82: M5
- Pilot exhaust air port 84: M5
- Pneumatic connection 1: G1/4
- Pneumatic connection 2: G¼
- Pneumatic connection 3: G1/4
- Pneumatic connection 4: G1/4
- Pneumatic connection 5: G1/4
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on JMVH-5-1-4-B . Santa Clara Systems carries 9,904 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
