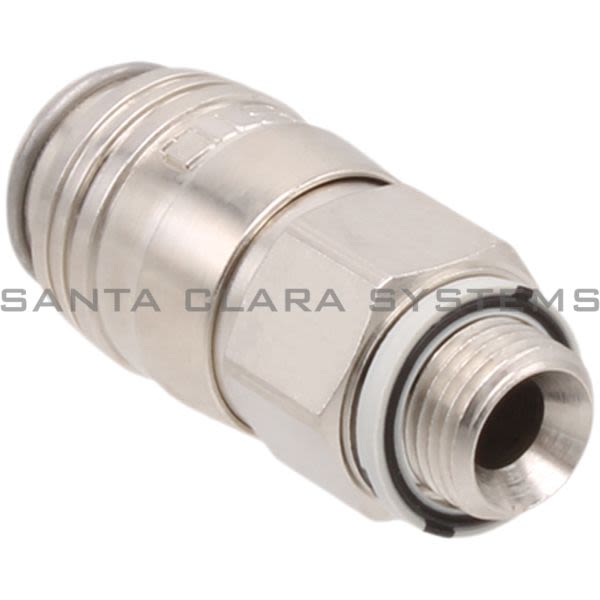

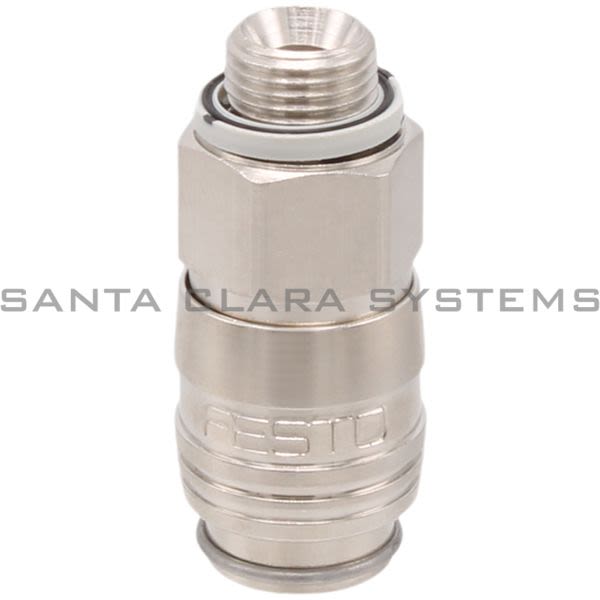

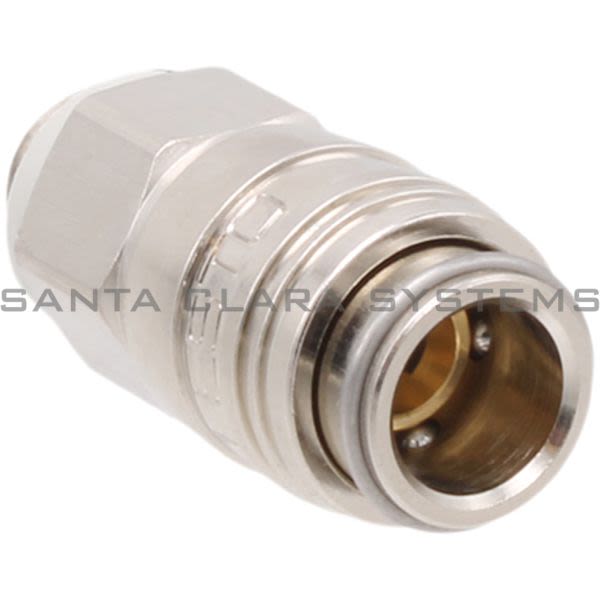

KD3-1-8-A

Festo - Quick Coupling Socket

Current response time:

9 Minutes 34 Seconds

Description: Quick Coupling Socket
Ambient temperature: -10 °C ... 60 °C
Nominal width: 4.95 mm
Operating pressure for entire temperature range: -0.95 bar ... 12 bar
Standard nominal flow rate: 185 l/min ... 572 l/min
Nominal flow rate standardized according to ISO 8778: 200.5 l/min ... 620 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Nominal tightening torque: 5 Nm
Tolerance for nominal tightening torque: ± 15%

Product weight: 28 g
Pneumatic connection 1: External thread G1/8
Seals material: NBR
Material of spring: High-alloy stainless steel
Housing material: Brass, nickel-plated
Material of threaded seal: PA66-GF30/TPE-U
Threaded coupling material: Brass, nickel-plated
Ball material: High-alloy stainless steel
Circlip material: High-alloy stainless steel
Valve body material: Brass
Material releasing sleeve: Brass, nickel-plated
