KMEB-1-24-10-LED

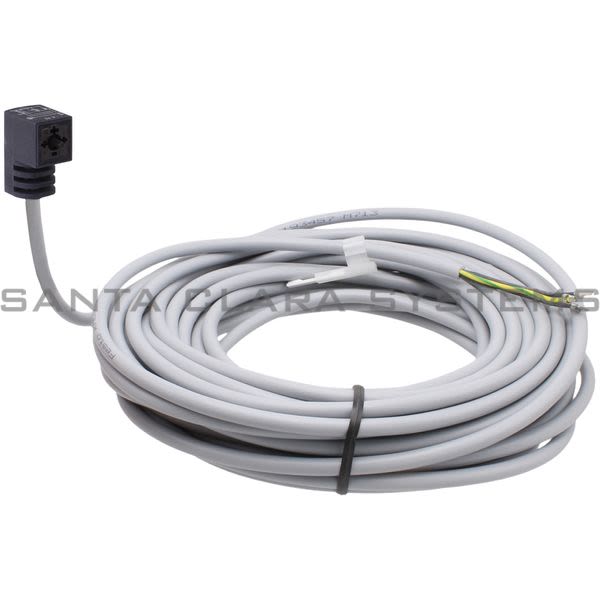

Festo - Plug Socket with Cable

Product Summary:

Ambient temperature: -20 °C ... 80 °C
Cable length: 10 m
Signal status display: LED yellow
Electrical connection 1: Socket, as per EN 175301-803, form C
Electrical connection 2, connection technology: Open end

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Plug Socket with Cable
Ambient temperature: -20 °C ... 80 °C
Cable length: 10 m
Signal status display: LED yellow
Electrical connection 1: Socket, as per EN 175301-803, form C
Electrical connection 2, connection technology: Open end
Corrosion resistance class (CRC): 1 - Low corrosion stress
Mounting position: Any

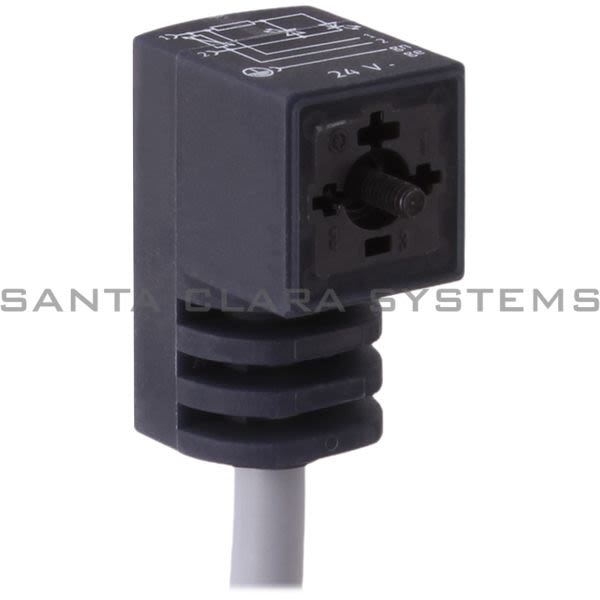

Electrical connection 1, design: Rectangular
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled
Electrical connection 1, information on cable outlet: 90°
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, type of mounting: On air solenoid valve with M2.5 central screw
Electrical connection 2, number of pins/wires: 3
Nominal operating voltage DC: 24 V

Surge resistance: 0.8 kV
Protective earth connection: Available
Cable characteristic: Standard
Cable diameter: 5.2 mm
Cable design: 3 x 0.5 mm²

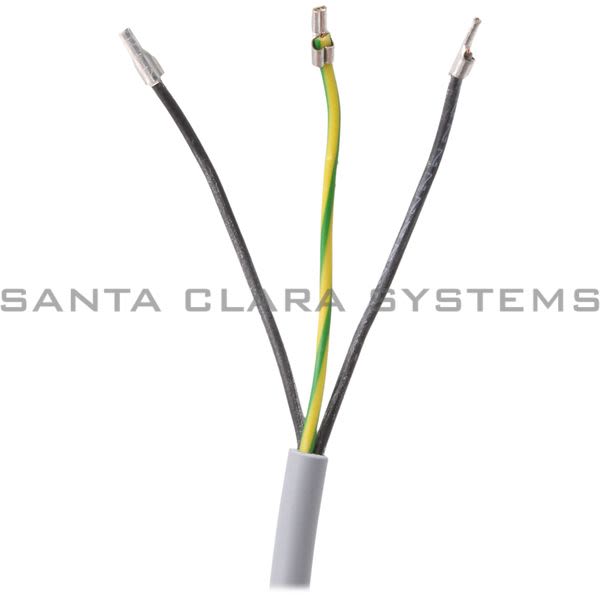

Wire ends: Cable end sleeve
Degree of protection: IP65, as per IEC 60529
CE marking (see declaration of conformity): As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK RoHS instructions
LABS (PWIS) conformity: VDMA24364-B2-L
Contamination level: 3
Material of cable sheath: PVC
Housing material: PA66-GF30
Seals material: NBR
Material of pin contacts: Copper alloy, silver-plated
