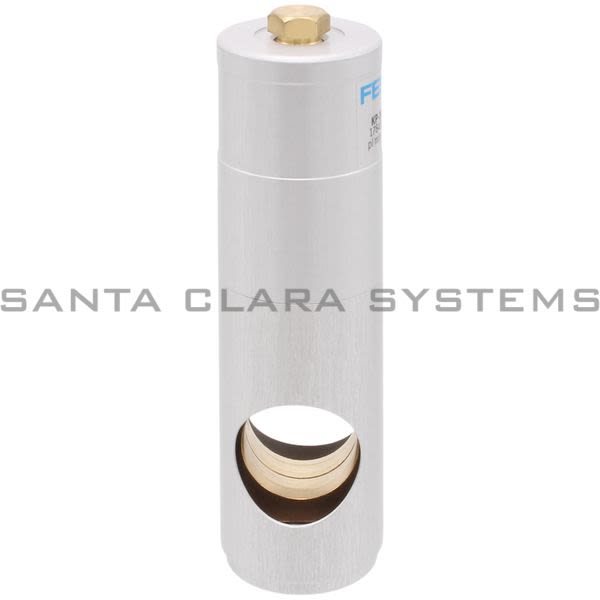

KP-20-1400

Festo - Clamping Cartridge

Product Summary:

Ambient temperature: -10 °C ... 80 °C
Mounting position: Any
Structural design: Hinge-down panes
Variants: Piston rod at one end
Operating pressure: ≤1 MPa, ≤10 bar

Current response time:

5 Minutes 12 Seconds

Description: Clamping Cartridge
Ambient temperature: -10 °C ... 80 °C
Mounting position: Any
Clamping type with active direction: Both sides - Clamped by spring, released by compressed air
Structural design: Hinge-down panes
Variants: Piston rod at one end
Operating pressure: ≤1 MPa, ≤10 bar
Release pressure: ≥0.3 MPa, ≥3 bar
Round material to be clamped: 20 mm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Static holding force: 1400 N
Product weight: 170 g
Seals material: NBR, TPE-U(PU)
Material of spring: Spring steel
Housing material: Aluminum, Anodized
Clamping jaws material: Brass
Material of piston: POM
