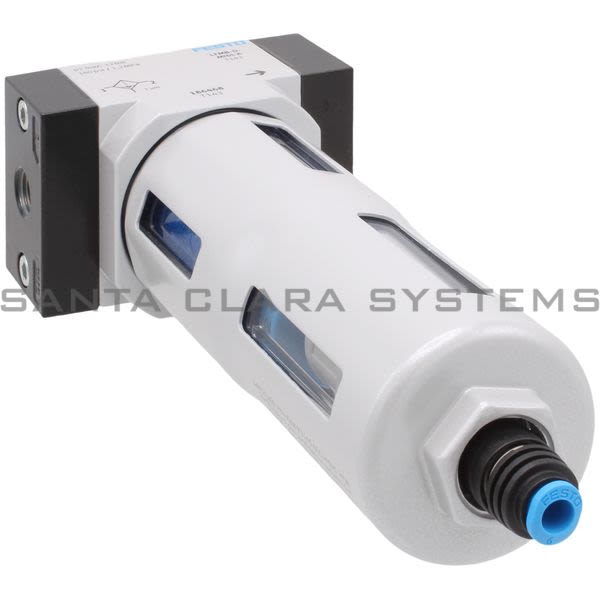

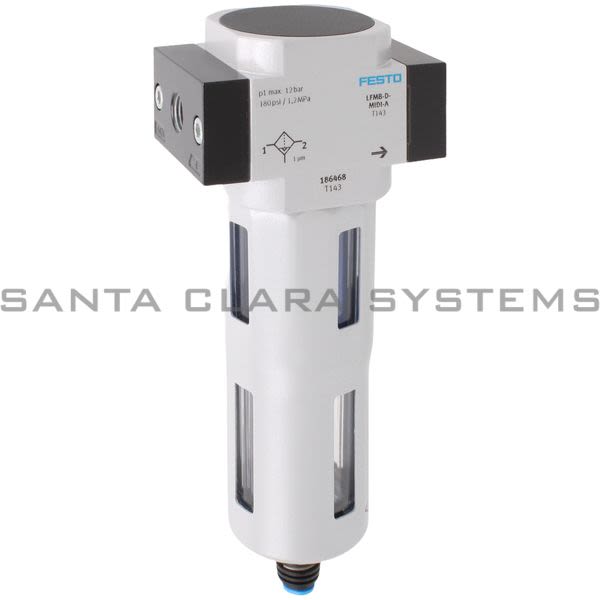

LFMB-1-4-D-MIDI-A
Product Summary:
- Size: Midi
- Ambient temperature: -10 °C ... 60 °C
- Series: D
- Structural design: Fiber filter
- Grade of filtration: 1 µm
Get a Quote
Current response time:
6 Minutes 38 Seconds
- Description: Fine Filter
- Size: Midi
- Ambient temperature: -10 °C ... 60 °C
- Series: D
- Structural design: Fiber filter
- Grade of filtration: 1 µm
- Condensate drain: Fully automatic
- Symbol: 00991520
- Operating pressure: 2 bar ... 12 bar
- Operating medium: Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
- Air quality class at the output: Compressed air as per ISO 8573-1:2010 [5:7:3] Inert gas
- Max. standard flow rate for air quality class: 900 l/min
- Min. standard flow rate for air quality class: 350 l/min
- Filter efficiency: 99.99 %
- Max. condensate volume: 43 ml
- Bowl guard: Metal bowl guard
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Temperature of medium: 1.5 °C ... 60 °C
- Storage temperature: -10 °C ... 60 °C
- Residual oil content: 0.5 mg/m³
- Type of mounting: Optionally: Line installation With accessories
- Mounting position: Vertical +/- 5°
- Pneumatic connection 1: G1/4
- Pneumatic connection 2: G¼
- Housing material: Die-cast zinc
- Compressed air filter material: Borosilicate fiber
- Material of bowl: PC
- Product weight: 650 g
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LFMB-1-4-D-MIDI-A . Santa Clara Systems carries 9,904 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
