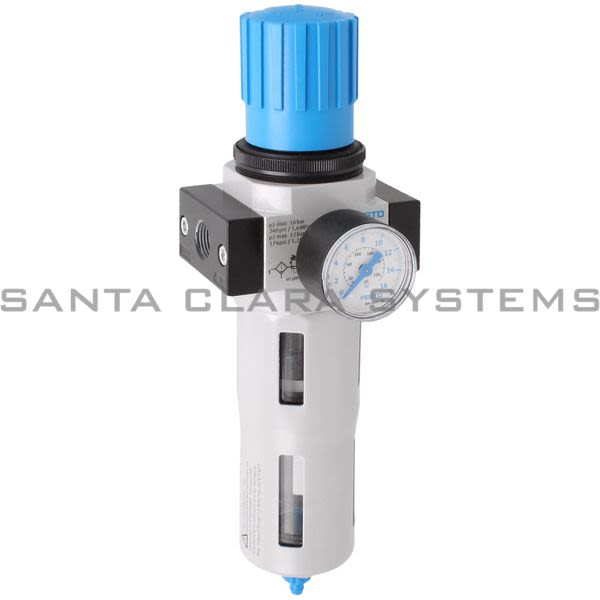

LFR-3-8-D-MIDI

Festo - Filter Regulator

Product Summary:

Size: Midi
Ambient temperature: -10 °C ... 60 °C
Series: D
Actuator lock: Rotary knob with detent
Mounting position: Vertical +/- 5°

Current response time:

16 Minutes 58 Seconds

Description: Filter Regulator
Size: Midi
Ambient temperature: -10 °C ... 60 °C
Series: D
Actuator lock: Rotary knob with detent
Mounting position: Vertical +/- 5°
Grade of filtration: 40 µm
Condensate drain: Manually rotating
Structural design: Filter regulator with pressure gauge
Max. condensate volume: 43 ml
Bowl guard: Metal bowl guard
Symbol: 00991585
Pressure gauge: With pressure gauge
Operating pressure: 1 bar ... 16 bar
Pressure regulation range: 0.5 bar ... 12 bar

Max. pressure hysteresis: 0.2 bar
Standard nominal flow rate: 3100 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -10 °C ... 60 °C
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
Temperature of medium: -10 °C ... 60 °C
Product weight: 920 g
Type of mounting: Optionally: Line installation With accessories
Pneumatic connection 1: G3/8
Pneumatic connection 2: G3/8
Housing material: Die-cast zinc
Material of bowl: PC

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LFR-3-8-D-MIDI . Santa Clara Systems carries 9,904 items from Festo.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
