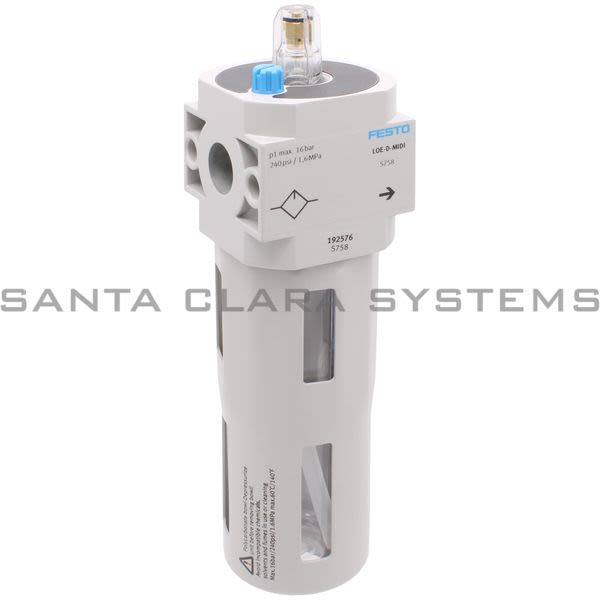

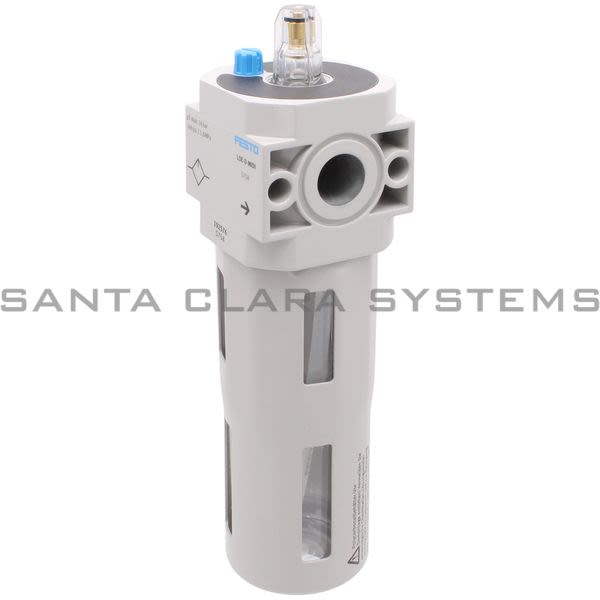

- Description: Air Line Lubricator
- Size: Midi
- Ambient temperature: -10 C ... 60 C
- Series: D
- Mounting position: Vertical +/- 5
- Structural design: Proportional standard oil mist lubricator
- Max. oil capacity: 110 cm
- Bowl guard: Metal bowl guard
- Symbol: 00991532
- Operating pressure: 0 MPa ... 1.6 MPa - 0 bar ... 16 bar - 0 psi ... 232 psi
- Minimum flow rate for lubricator function: 8 l/min
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Information on operating and pilot media: Operation with oil lubrication not possible
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Storage temperature: -10 C ... 60 C
- Air quality class at the output: Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas
- Temperature of medium: -10 C ... 60 C
- Product weight: 630 g
- Type of mounting: With accessories
- Material of bowl: PC
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LOE-D-MIDI . Santa Clara Systems carries 5,560 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
