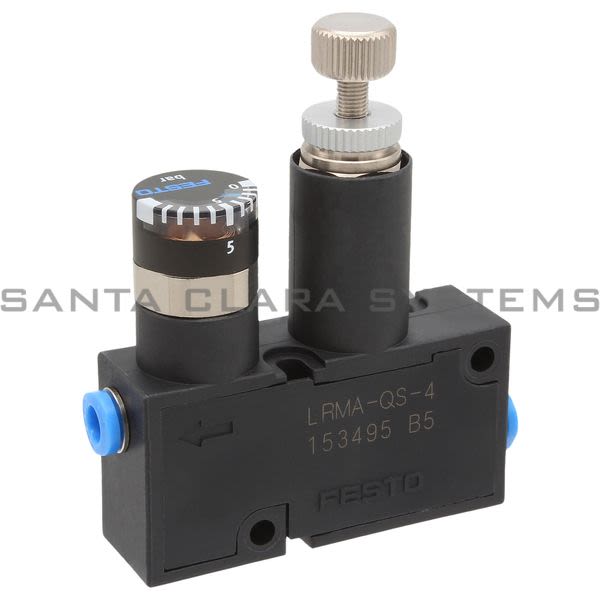

• Festo LRMA-QS-4 Pressure Regulator Product Image

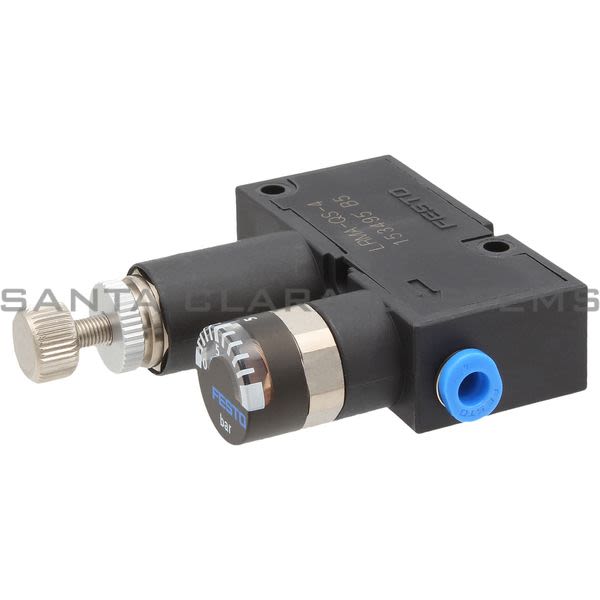

  • Festo LRMA-QS-4 Pressure Regulator Product Image

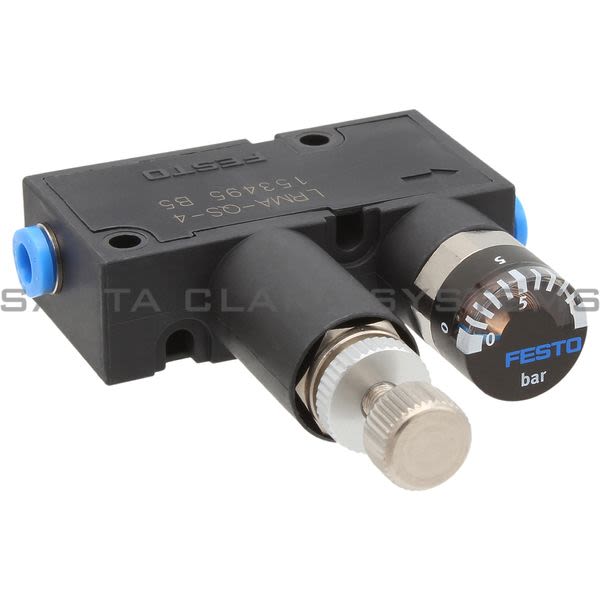

  • Festo LRMA-QS-4 Pressure Regulator Product Image

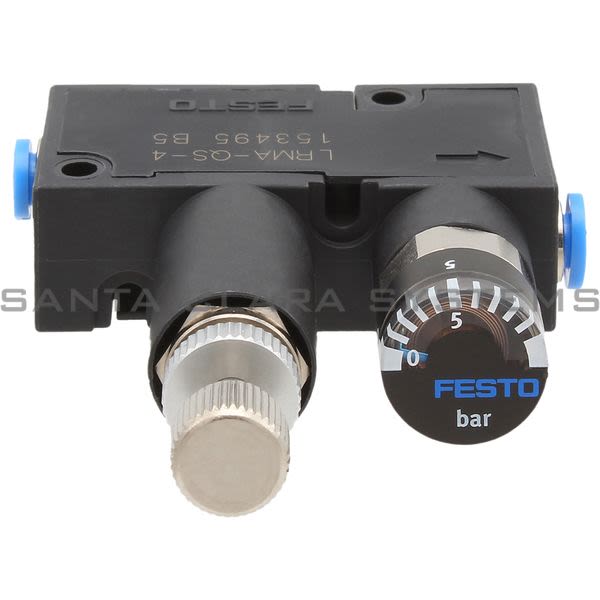

  • Festo LRMA-QS-4 Pressure Regulator Product Image
  • Festo LRMA-QS-4 Barcode

LRMA-QS-4

Product Summary:

  • Ambient temperature: 0 C ...60 C
  • Type code: LRMA
  • Controller function: With secondary exhausting Outlet pressure constant
  • Selection of additional function: Pressure indicator with pressure gauge
  • Pneumatic connection 1: QS-4
Get a Quote

Current response time:

By 5AM PT on Wednesday
  • Description: Pressure Regulator
  • Ambient temperature: 0 C ...60 C
  • Type code: LRMA
  • Controller function: With secondary exhausting Outlet pressure constant
  • Selection of additional function: Pressure indicator with pressure gauge
  • Pneumatic connection 1: QS-4
  • Pneumatic connection 2: QS-4
  • Type of mounting: With through-hole
  • Standard nominal flow rate: 50 l/min
  • Inlet pressure 1: 0 bar ...9 bar
  • Housing material: PBT-reinforced
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Actuator lock: Counter-locking
  • Mounting position: Any
  • Design: with continuous compressed air supply Directly controlled piston regulator
  • Symbol: 991536
  • Pressure gauge: with pressure gauge
  • Pressure regulation range: 1 bar ...8 bar
  • Product weight: 45 g
  • Material of screwed trunnion: Brass Nickel-plated
  • Material of threaded seal: PTFE
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LRMA-QS-4 . Santa Clara Systems carries 391 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
