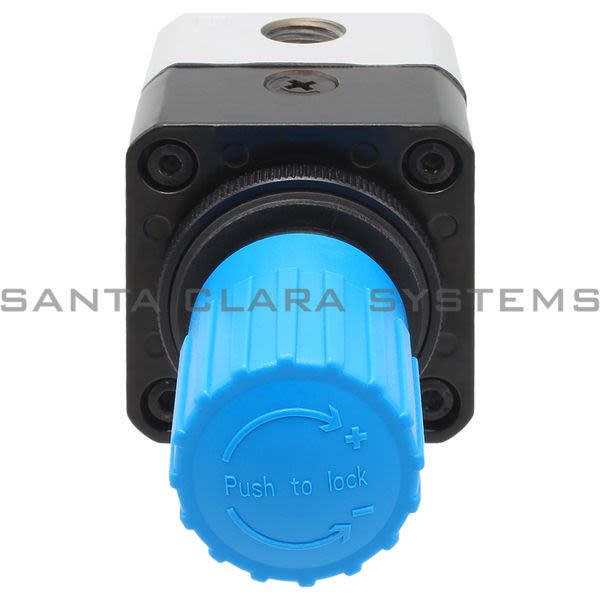

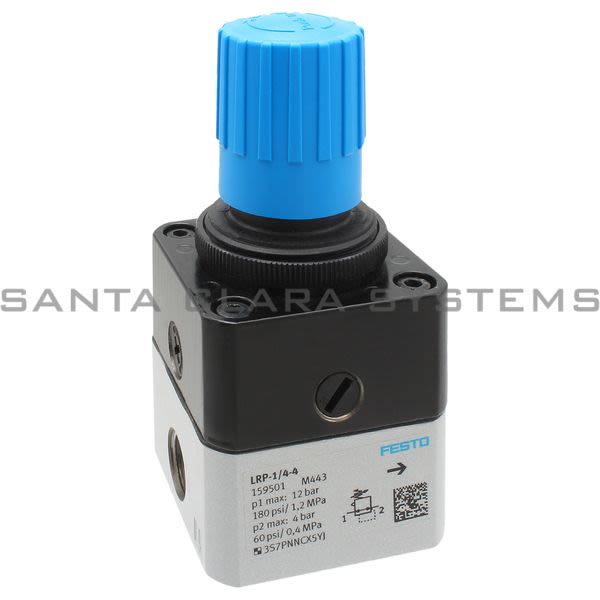

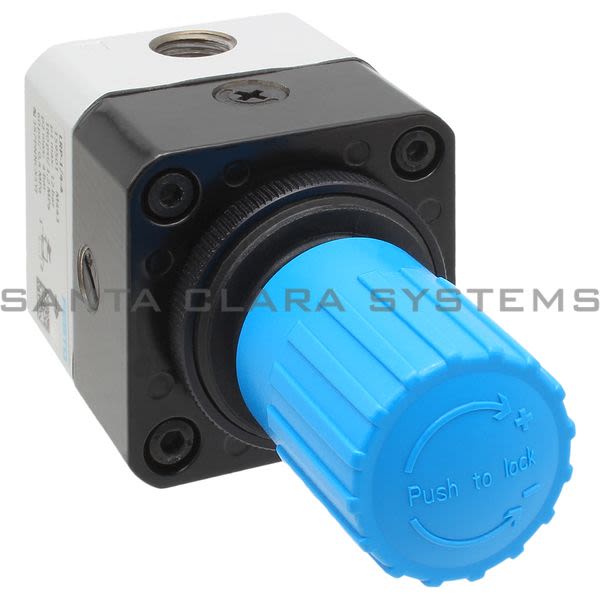

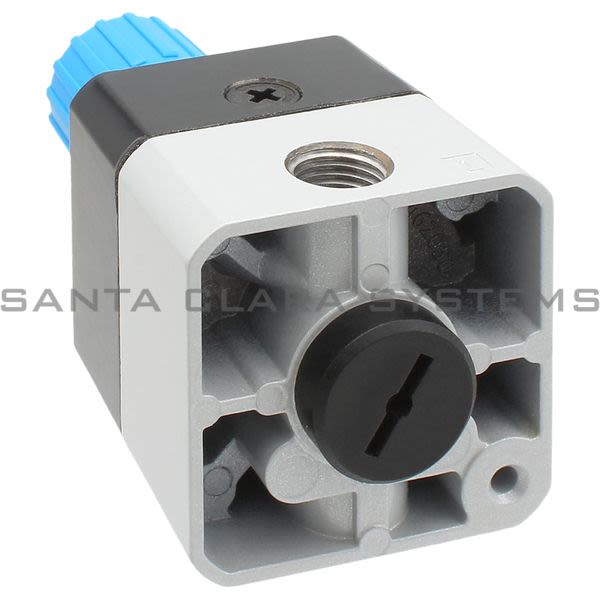

- Description: Precision Pressure Regulator
- Ambient temperature: -10 C ... 60 C
- Actuator lock: Rotary knob with detent
- Mounting position: Any
- Structural design: Pilot-controlled precision diaphragm regulator
- Controller function: Outlet pressure constant - With secondary exhausting
- Symbol: 00991540
- Pressure gauge: G1/8 prepared
- Operating pressure: 0.1 MPa ... 1.2 MPa - 1 bar ... 12 bar
- Pressure regulation range: 0.05 bar ... 4 bar
- Inlet pressure 1: 1 bar ... 12 bar
- Max. pressure hysteresis: 0.02 bar
- Standard nominal flow rate: 2000 l/min
- Operating medium: Compressed air as per ISO 8573-1:2010 - [7:4:4] Inert gas
- Information on operating and pilot media: Operation with oil lubrication not possible
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Temperature of medium: -10 C ... 60 C
- Product weight: 310 g
- Type of mounting: Front panel mounting - Line installation - With accessories
- Pneumatic connection 1: G1/4
- Pneumatic connection 2: G
- Seals material: NBR
- Housing material: Aluminum
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LRP-1-4-4 . Santa Clara Systems carries 5,560 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
