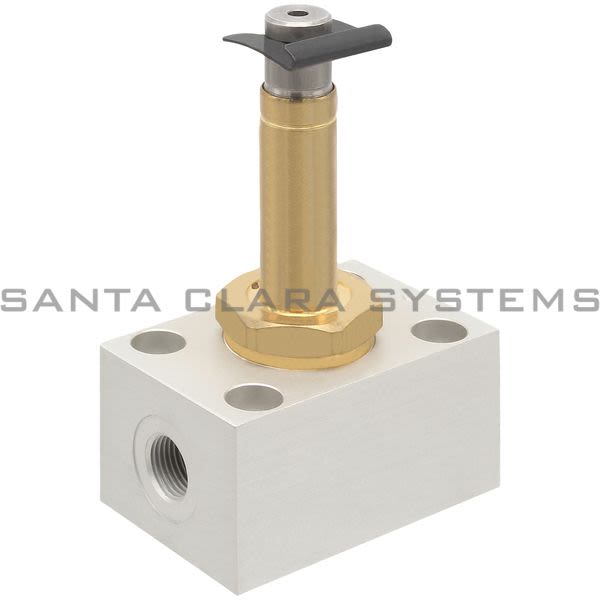

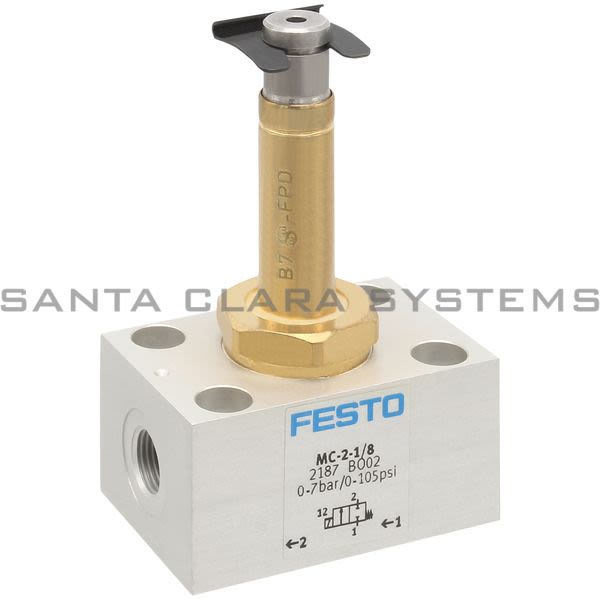

MC-2-1-8
Product Summary:
- Ambient temperature: -5 °C ... 40 °C
- Valve function: 2/2, closed, monostable
- Actuation type: Electrical
- Normal nominal flow rate (normalized to DIN 1343): 300 l/min
- Pneumatic working port: G1/8
Get a Quote
Current response time:
6 Minutes 45 Seconds
- Description: Air Solenoid Valve
- Ambient temperature: -5 °C ... 40 °C
- Valve function: 2/2, closed, monostable
- Actuation type: Electrical
- Normal nominal flow rate (normalized to DIN 1343): 300 l/min
- Pneumatic working port: G1/8
- Operating pressure: -0.095 MPa ... 0.7 MPa, -0.095 MPa ... 0.7 MPa
- Structural design: Poppet valve with return spring
- Reset method: Mechanical spring
- Degree of protection: IP65
- Nominal width: 4 mm
- Sealing principle: Soft
- Manual override: None
- Type of control: Direct
- Flow direction: Non-reversible
- Symbol: 00991397
- Switching time off: 20 ms
- On switching time: 18 ms
- Duty cycle: 100%
- Coil characteristics: 110 V AC: 50/60 Hz, initial power 30.0 VA, holding power 22.0 VA 110 V DC: 12.7 W 120 V AC: 60 Hz, initial power 30.0 VA, holding power 22.0 VA 12 V AC: 50 Hz, initial power 30.0 VA, holding power 22.0 VA 12 V DC: 11.7 W 220 V AC: 50/60 Hz, initial power 30.0 VA, holding power 22.0 VA 220 V DC: 15.0 W 240 V AC: 50 Hz, initial power 30.0 VA, holding power 22.0 VA 240 V DC: 17.9 W 24 V AC: 50 Hz, initial power 30.0 VA, holding power 22.0 VA 24 V DC: 11.0 W 380 V AC: 50/60 Hz, initial power 30.0 VA, holding power 22.0 VA 42 V AC: 50/60 Hz, initial power 30.0 VA, holding power 22.0 VA 42 V DC: 12.0 W 48 V AC: 50 Hz, initial power 30.0 VA, holding power 22.0 VA 96 V DC: 11.0 W
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- LABS (PWIS) conformity: VDMA24364-C1-L
- Storage temperature: -40 °C ... 100 °C
- Temperature of medium: -10 °C ... 60 °C
- Type of mounting: With through-hole
- Pneumatic connection 1: G1/8
- Pneumatic connection 2: G1/8
- Note on materials: RoHS-compliant
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MC-2-1-8 . Santa Clara Systems carries 9,904 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
