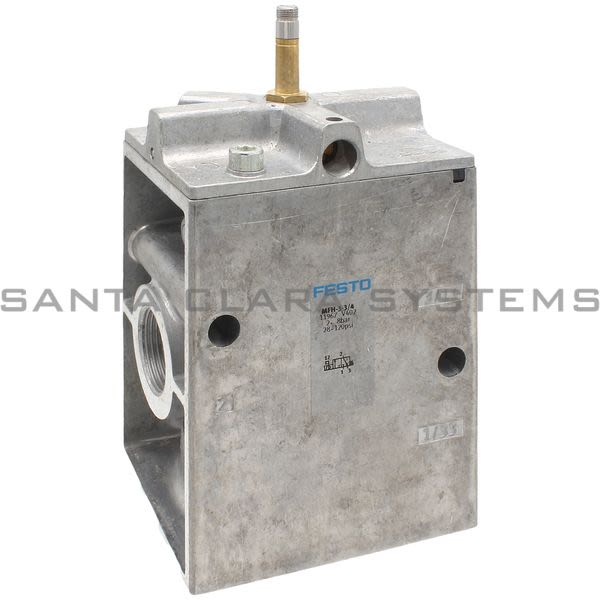

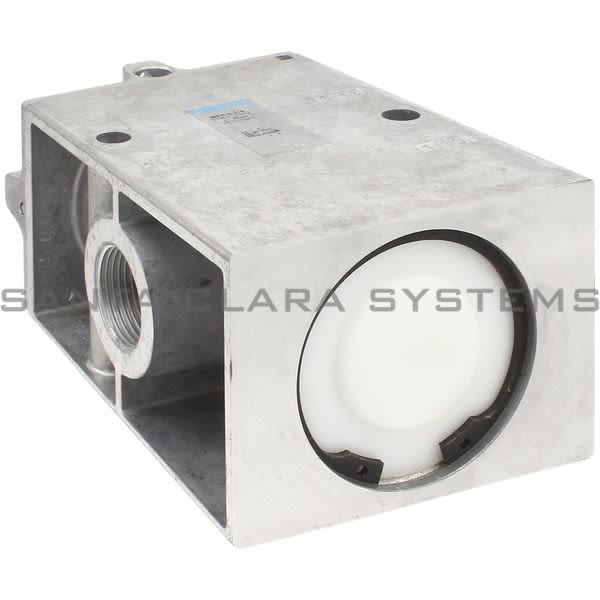

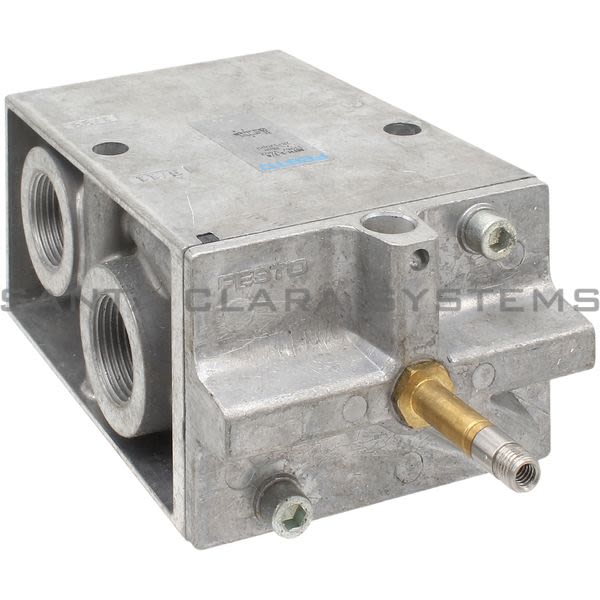

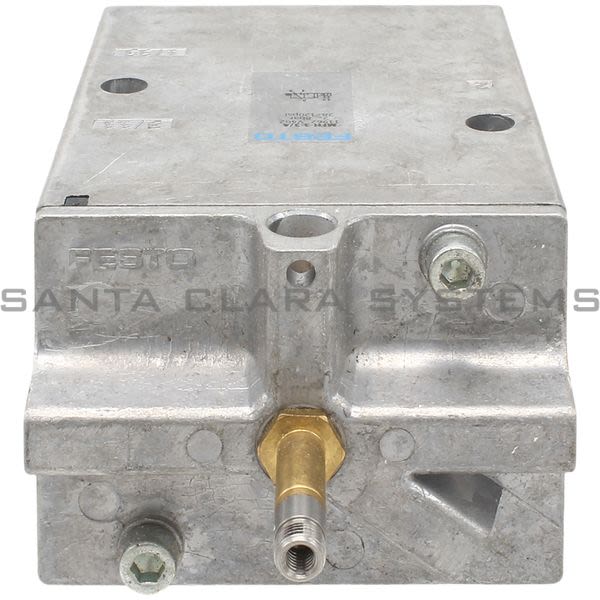

MFH-3-3-4

Festo - Air Solenoid Valve

Current response time:

15 Minutes 25 Seconds

Description: Air Solenoid Valve
Width: 68 mm
Ambient temperature: -5 °C ... 40 °C
Electrical connection: Via F coil, to be ordered separately
Valve function: 3/2, closed, monostable
Actuation type: Electrical
Standard nominal flow rate: 7500 l/min
Pneumatic working port: G3/4
Operating voltage: Via solenoid coil, to be ordered separately
Operating pressure: 2 bar ... 8 bar
Operating pressure MPa: 0.2 MPa ... 0.8 MPa
Structural design: Plate seat
Reset method: Mechanical spring
Certification: c UL us - recognized (OL)
Degree of protection: IP65
Nominal width: 19 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting
Type of control: Piloted
Pilot air supply port: Internal

Flow direction: Non-reversible
Symbol: 00991008
Lap: Negative overlap
Switching time off: 32 ms
On switching time: 36 ms
Max. positive test pulse with 0 signal: 2200 µs
Coil characteristics: See solenoid coil, to be ordered separately
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C ... 60 °C
Temperature of medium: -10 °C ... 60 °C
Type of mounting: On terminal strip With through-hole
Pilot exhaust air port 82: M5
Pneumatic connection 1: G3/4
Pneumatic connection 2: G3/4
Pneumatic connection 3: G3/4
Note on materials: RoHS compliant
Seals material: NBR
Housing material: Die-cast aluminum
