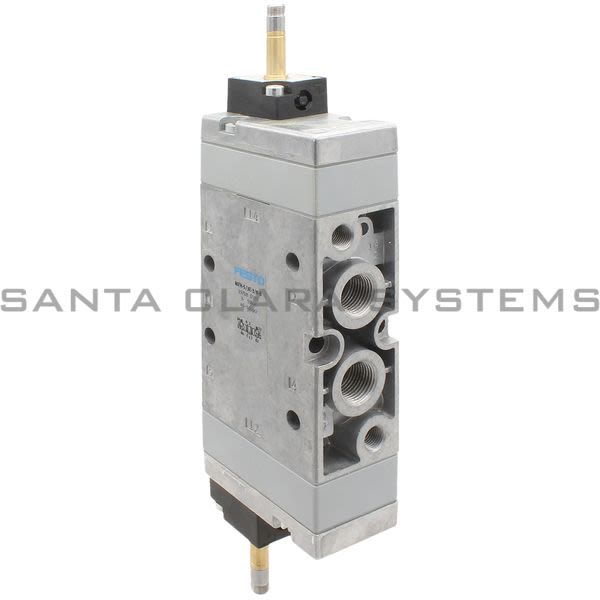

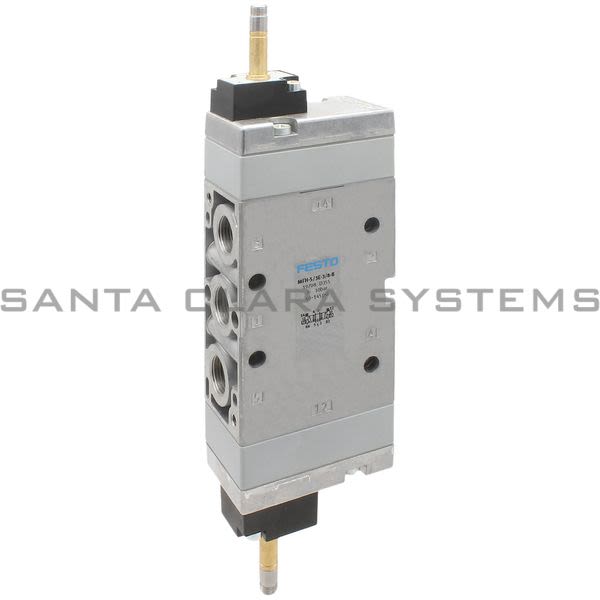

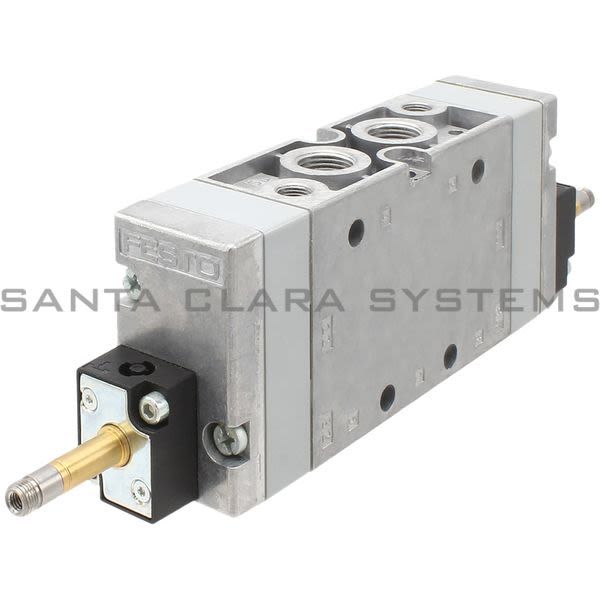

MFH-5-3E-3-8-B

Festo - Air Solenoid Valve

Current response time:

14 Minutes 5 Seconds

Description: Air Solenoid Valve
Width: 40 mm
Ambient temperature: -5 °C ... 40 °C
Electrical connection: Via F coil, to be ordered separately
Valve function: 5/3 exhausted
Normal nominal flow rate (normalized to DIN 1343): 2200 l/min
Pneumatic connection 1: G3/8
Actuation type: Electrical
Pneumatic working port: G3/8
Operating pressure: 0.3 MPa ... 1 MPa - 3 bar ... 10 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
Nominal width: 12 mm
Width dimension: 41 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Symbol: 00991036
Lap: Positive overlap

Max. switching frequency: 3 Hz
Switching time off: 114 ms
On switching time: 26 ms
Changeover time: 83 ms
Max. positive test pulse with 0 signal: 2200 µs
Max. negative test pulse on 1 signal: 3700 µs
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -40 °C ... 60 °C
Temperature of medium: -10 °C ... 60 °C
Product weight: 780 g
Type of mounting: On PR manifold rail - With through-hole
Pilot exhaust air port 82: M5
Pilot exhaust air port 84: M5
Pneumatic connection 2: G3/8
Pneumatic connection 3: G3/8
Pneumatic connection 4: G3/8
Pneumatic connection 5: G3/8
Note on materials: RoHS compliant
Seals material: NBR
Housing material: Die-cast aluminum
