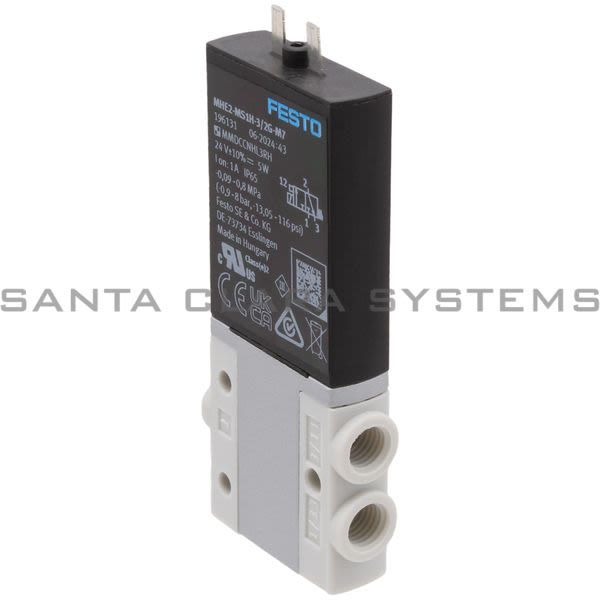

MHE2-MS1H-3-2G-M7

Festo - Air Solenoid Valve

Current response time:

By 5AM PT on Monday

Emergency?

Description: Air Solenoid Valve
Width: 10 mm
Ambient temperature: -5 °C ... 60 °C
Electrical connection: 2-pin - Plug
Valve function: 3/2, closed, monostable
Actuation type: Electrical
Standard nominal flow rate: 100 l/min
Pneumatic working port: M7
Operating voltage: 24V DC
Operating pressure MPa: -0.09 MPa ... 0.8 MPa
Operating pressure: -0.9 bar ... 8 bar
Operating pressure psi: -13.05 psi ... 116 psi
Structural design: Pressure-relieved poppet valve
Reset method: Mechanical spring
Degree of protection: IP65
Certification: RCM compliance mark - c UL us - Recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive - As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC - To UK RoHS instructions
Nominal width: 2 mm
Width dimension: 14 mm
Exhaust air function: With flow control option
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: Direct
Flow direction: Reversible with restrictions
Symbol: 00991308
Lap: Underlap
Reverse polarity protection: Bipolar
Additional functions: Spark suppression - Holding current reduction - Protective circuit

Operating pressure, reversible MPa: -0.09 MPa ... 0.1 MPa
Operating pressure, reversible: -0.9 bar ... 1 bar
Operating pressure, reversible psi: -13.05 psi ... 14.5 psi
Max. switching frequency: 330 Hz
Switching time off: 2 ms
On switching time: 1.7 ms
Tolerance for switching time off: +10 %/-30 %
Tolerance for ON switching time: +10%/-30%
Switching time variation at 1 Hz and above: 0.2 ms
Duty cycle: 100%
Coil characteristics: 24 V DC: low-current phase 1.25 W, high-current phase 5.0 W
Permissible voltage fluctuations: +/- 10 %
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Restricted ambient and media temperature: Depending on the switching frequency (see diagram)
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom class: Class 6 according to ISO 14644-1
Temperature of medium: -5 °C ... 60 °C
Product weight: 60 g
Type of mounting: With through-hole
Pneumatic connection 1: M7
Pneumatic connection 2: M7
Pneumatic connection 3: M7
Seals material: HNBR NBR
Housing material: Die-cast metal, coated
Material of screws: Steel, galvanized
