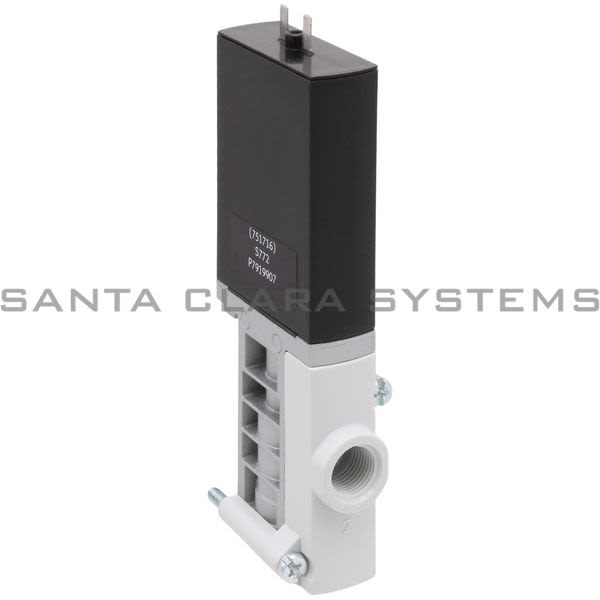

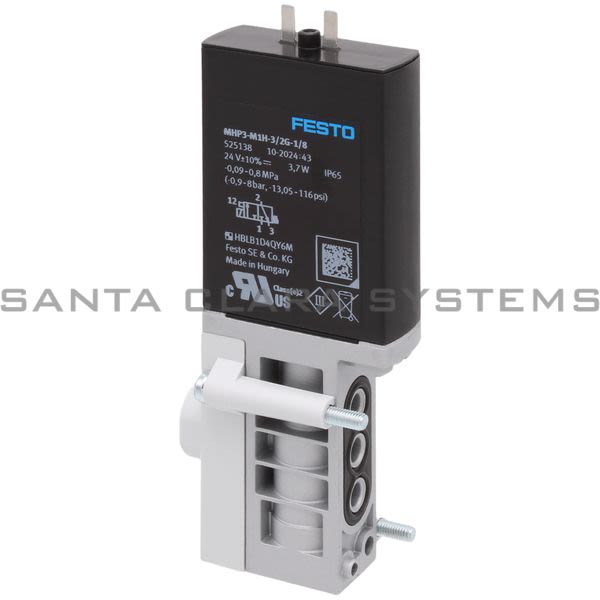

MHP3-M1H-3-2G-1-8
Product Summary:
- Width: 14 mm
- Ambient temperature: -5 °C ... 40 °C
- Electrical connection: 2-pin Plug
- Valve function: 3/2, closed, monostable
- Actuation type: Electrical
- Description: Air Solenoid Valve
- Width: 14 mm
- Ambient temperature: -5 °C ... 40 °C
- Electrical connection: 2-pin Plug
- Valve function: 3/2, closed, monostable
- Actuation type: Electrical
- Standard nominal flow rate: 200 l/min
- Pneumatic working port: G1/8
- Operating voltage: 24V DC
- Operating pressure: -0.9 bar ... 8 bar
- Structural design: Pressure-relieved poppet valve
- Reset method: Mechanical spring
- Degree of protection: IP65
- Certification: C UL us - Recognized (OL)
- Nominal width: 3 mm
- Width dimension: 19 mm
- Exhaust air function: With flow control option
- Sealing principle: Soft
- Mounting position: Any
- Manual override: Non-detenting
- Type of control: Direct
- Flow direction: Reversible with restrictions
- Symbol: 00991308
- Lap: Underlap
- Operating pressure, reversible: -0.9 bar ... 1 bar
- Max. switching frequency: 130 Hz
- Switching time off: 4.5 ms
- On switching time: 8.3 ms
- Duty cycle: 100%
- Coil characteristics: 24 V DC: 3.7 W
- Permissible voltage fluctuations: +/- 10 %
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Cleanroom class: Class 6 according to ISO 14644-1
- Temperature of medium: -5 °C ... 40 °C
- Product weight: 120 g
- Type of mounting: On PR rail
- Pneumatic connection 1: Sub-base
- Pneumatic connection 2: G1/8
- Pneumatic connection 3: Sub-base
- Seals material: HNBR NBR
- Housing material: Die-cast metal, coated
- Material of screws: Steel, galvanized
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MHP3-M1H-3-2G-1-8 . Santa Clara Systems carries 9,904 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
