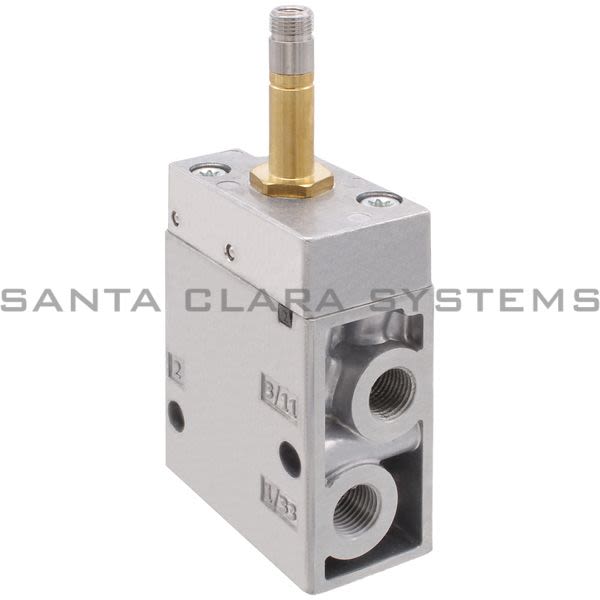

• Festo MOFH-3-1/8-EX Air Solenoid Valve Product Image

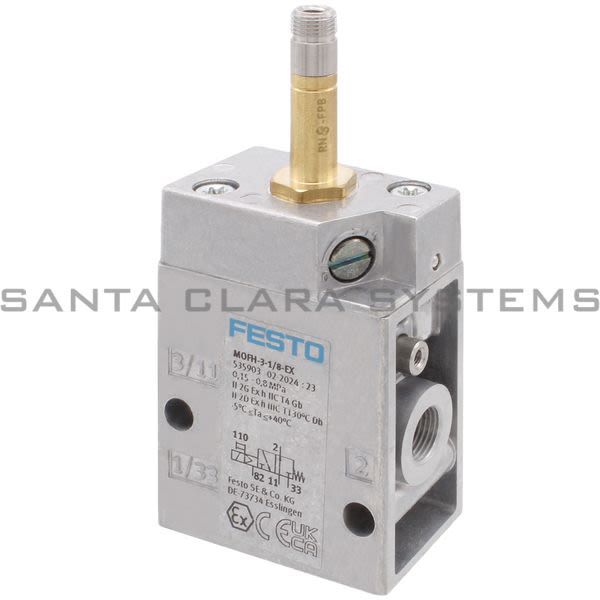

  • Festo MOFH-3-1/8-EX Air Solenoid Valve Product Image
  • Festo MOFH-3-1/8-EX Barcode

MOFH-3-1-8-EX

Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Air Solenoid Valve
  • Width: 26 mm
  • Ambient temperature: -5 C ... 40 C
  • Electrical connection: Via F coil, to be ordered separately
  • Valve function: 3/2, open, monostable
  • Actuation type: Electrical
  • Standard nominal flow rate: 500 l/min
  • Pneumatic working port: G1/8
  • Operating voltage: Via solenoid coil, to be ordered separately
  • Operating pressure: 0.15 MPa ... 0.8 MPa, 1.5 bar ... 8 bar
  • Structural design: Plate seat
  • Reset method: Mechanical spring
  • CE marking (see declaration of conformity): As per EU explosion protection directive (ATEX)
  • Explosion protection certification outside the EU: EPL Db (GB), EPL Gb (GB)
  • UKCA marking (see declaration of conformity): Acc. to UK EX instructions
  • ATEX category gas: II 2G
  • ATEX category for dust: II 2D
  • Type of ignition protection for gas: Ex h IIC T4 Gb
  • Type of (ignition) protection for dust: Ex h IIIC T130C Db
  • Explosive ambient temperature: -5C <= Ta <= +40C
  • Degree of protection: IP65
  • Nominal width: 5 mm
  • Width dimension: 27 mm
  • Exhaust air function: With flow control option
  • Sealing principle: Soft
  • Mounting position: Any
  • Manual override: Detenting
  • Type of control: Pilot-controlled
  • Flow direction: Non-reversible
  • Symbol: 00995429
  • Lap: Underlap
  • Switching time off: 29 ms
  • On switching time: 9 ms
  • Max. positive test pulse with 0 signal: 2200 s
  • Max. negative test pulse on 1 signal: 3700 s
  • Coil characteristics: See solenoid coil, to be ordered separately
  • Explosion prevention and protection: Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX)
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC): 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Storage temperature: -20 C ... 60 C
  • Temperature of medium: -5 C ... 40 C
  • Product weight: 240 g
  • Type of mounting: Optionally: On terminal strip With through-hole
  • Venting hole connection: M5
  • Pilot exhaust air port 82: M5
  • Pneumatic connection 1: G1/8
  • Pneumatic connection 11: G1/8
  • Pneumatic connection 2: G1/8
  • Pneumatic connection 3: G1/8
  • Pneumatic connection 33: G1/8
  • Seals material: NBR
  • Housing material: Die-cast aluminum
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MOFH-3-1-8-EX . Santa Clara Systems carries 5,553 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
