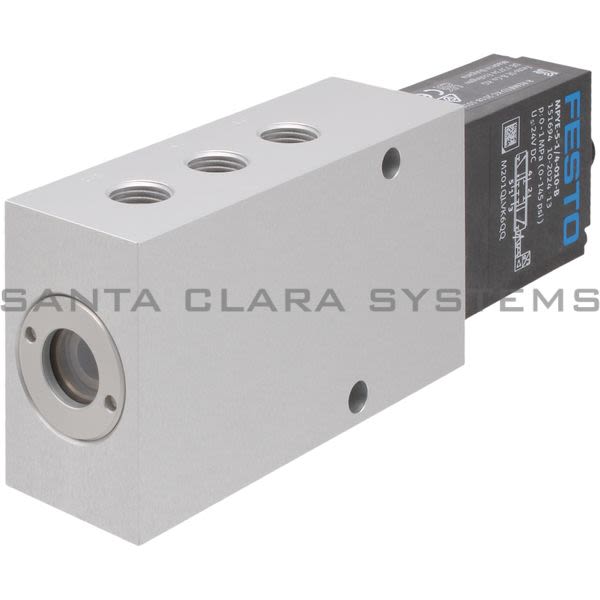

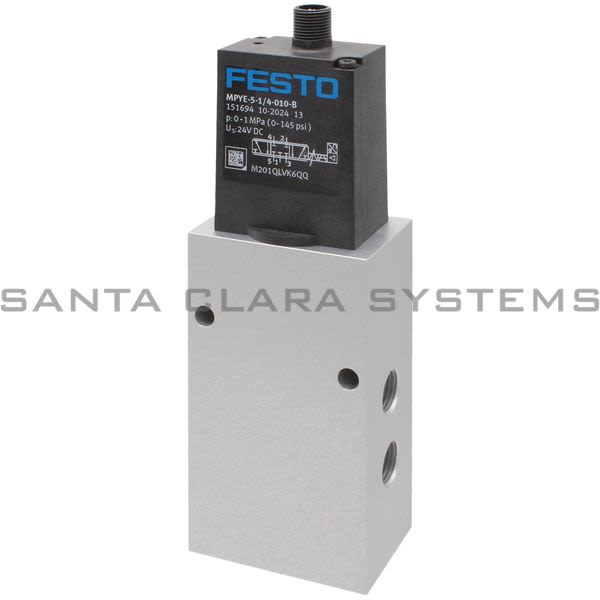

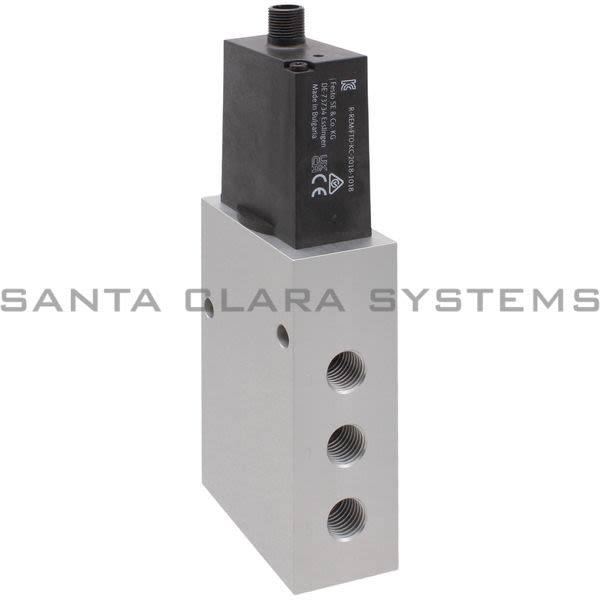

MPYE-5-1-4-010-B
Product Summary:
- Ambient temperature: 0 °C ... 50 °C
- Electrical connection: M12x1 - Plug - Round design
- Valve function: 5/3, closed
- Pneumatic connection 1: G1/4
- Standard nominal flow rate: 1400 l/min
Get a Quote
Current response time:
14 Minutes 50 Seconds
- Description: Proportional Directional Control Valve
- Ambient temperature: 0 °C ... 50 °C
- Electrical connection: M12x1 - Plug - Round design
- Valve function: 5/3, closed
- Pneumatic connection 1: G1/4
- Standard nominal flow rate: 1400 l/min
- DC operating voltage range: 17 V - 30 V
- Nominal width: 8 mm
- Actuation type: Electrical
- Sealing principle: Hard
- Mounting position: Any
- Structural design: Piston gate valve
- Reset method: Magnetic spring
- Safety instructions: MPYE safety position: if the power supply cable breaks, the blocked mid-position is approached.
- Type of control: Directly
- Flow direction: Non-reversible
- Symbol: 00995308
- Reverse polarity protection: For all electrical connections
- Operating pressure: 0 MPa ... 1 MPa - 0 bar ... 10 bar
- B-value: 0.23
- C value: 6.25 l/sbar
- Cut-off frequency: 80 Hz
- Max. hysteresis: 0.4 %
- Residual ripple: 5%
- Setpoint/actual values: Voltage type 0 - 10 V
- Certification: RCM compliance mark
- KC characters: KC-EMV
- CE marking (see declaration of conformity): As per EU EMC directive - As per EU RoHS directive
- UKCA marking (see declaration of conformity): To UK RoHS instructions
- Operating medium: Compressed air as per ISO 8573-1:2010 [6:4:4]
- Information on operating and pilot media: Operation with oil lubrication not possible
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B2-L
- Temperature of medium: 5 °C ... 40 °C
- Degree of protection: IP65
- Type of mounting: With through-hole
- Pneumatic connection 2: G1/4
- Pneumatic connection 3: G1/4
- Pneumatic connection 4: G1/4
- Pneumatic connection 5: G1/4
- Note on materials: RoHS compliant
- Cover material: ABS - Coated
- Seals material: NBR
- Housing material: Aluminum - Anodized
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MPYE-5-1-4-010-B . Santa Clara Systems carries 9,904 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
