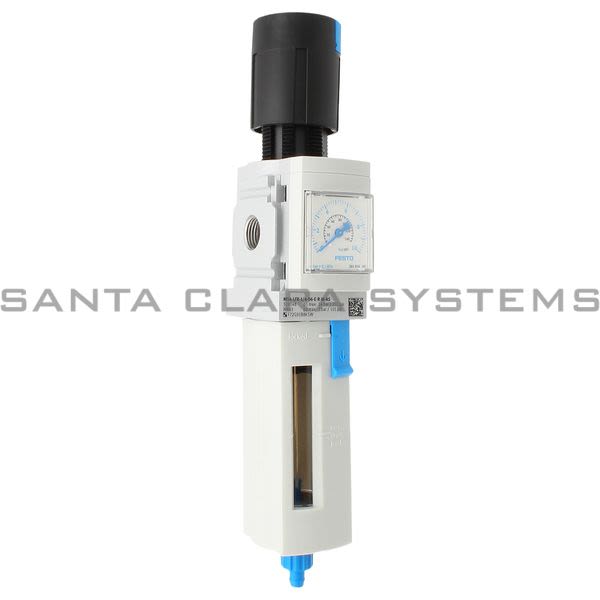

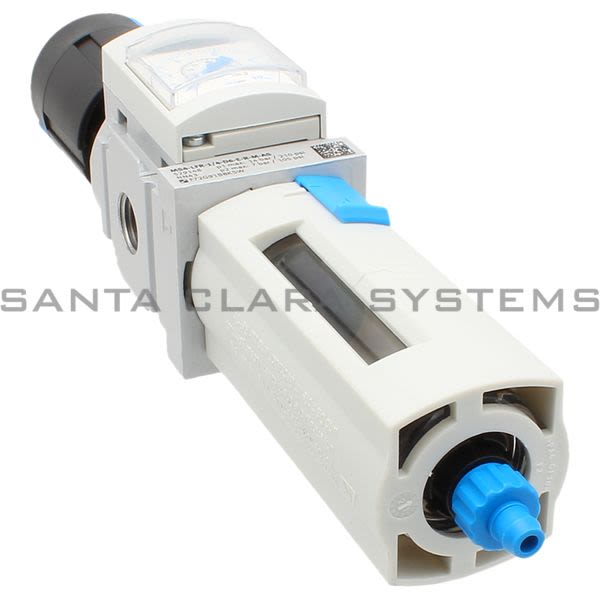

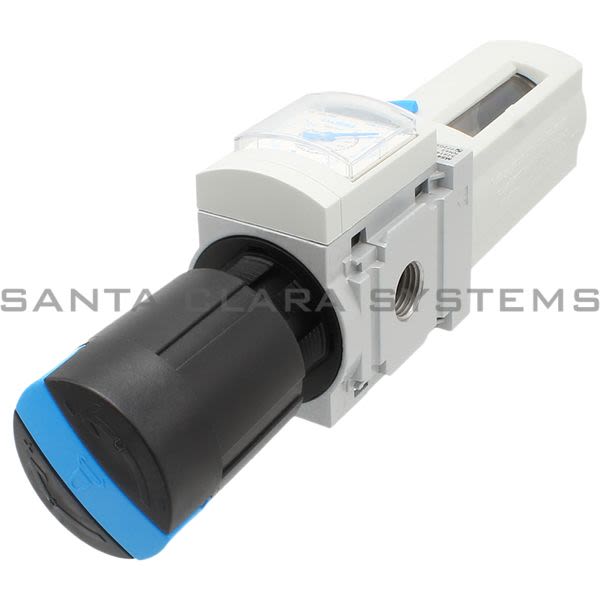

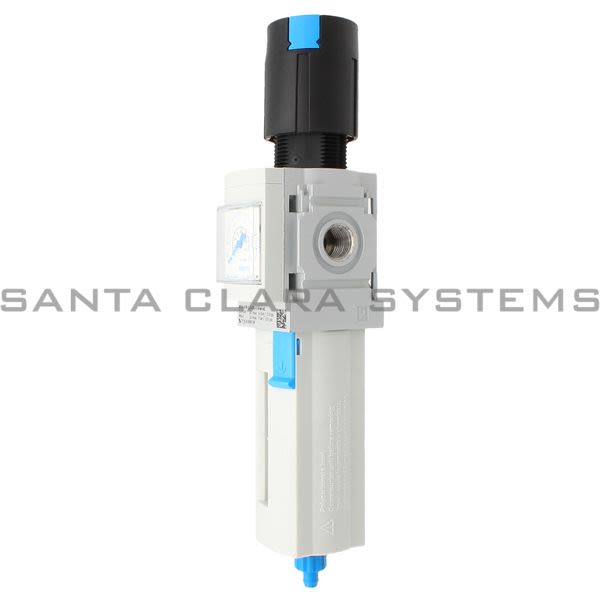

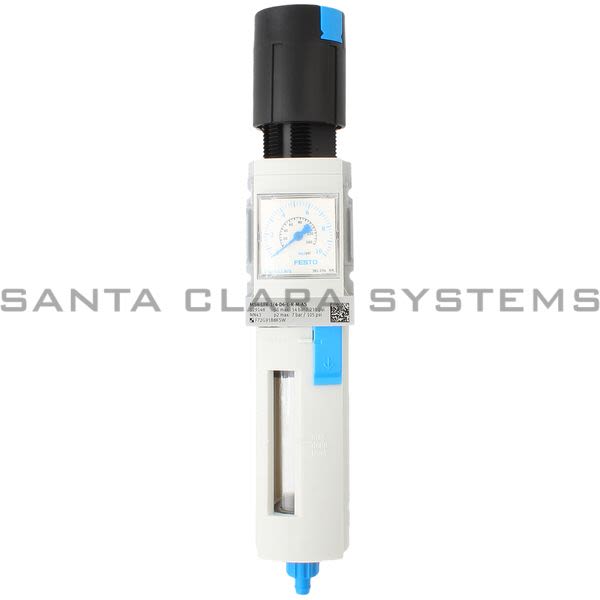

MS4-LFR-1-4-D6-ERM-AS

Festo - Filter Regulator

Current response time:

By 5AM PT on Monday

Emergency?

Description: Filter Regulator
Size: 4
Ambient temperature: -10 °C ... 60 °C
Series: MS
Actuator lock: Rotary knob with detent can be closed with accessories
Mounting position: Vertical +/- 5°
Grade of filtration: 40 µm
Condensate drain: Manually rotating
Structural design: Filter regulator with pressure gauge
Max. condensate volume: 19 ml
Controller function: Outlet pressure constant With secondary exhausting With return flow function
Bowl guard: Plastic bowl guard
Degree of condensate separation: >75 %
Symbol: 00991589
Pressure gauge: With pressure gauge
Operating pressure: 0.8 bar ... 14 bar
Pressure regulation range: 0.3 bar ... 7 bar
Max. pressure hysteresis: 0.25 bar
Standard nominal flow rate: 1700 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas

Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -10 °C ... 60 °C
For use in the food industry: See supplementary material information
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium: -10 °C ... 60 °C
Pore size: <40 µm
Product weight: 275 g
Type of mounting: Optionally: Front panel mounting Line installation With accessories
Pneumatic connection 1: G1/4
Pneumatic connection 2: G¼
Material of sub-base: Die-cast aluminum
Material of operator panel: PA POM
Seals material: NBR
Compressed air filter material: PE
Housing material: Die-cast aluminum
Diaphragm material: NBR
Material of bowl: PC
Separating disc material: POM

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MS4-LFR-1-4-D6-ERM-AS . Santa Clara Systems carries 6,696 items from Festo.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
