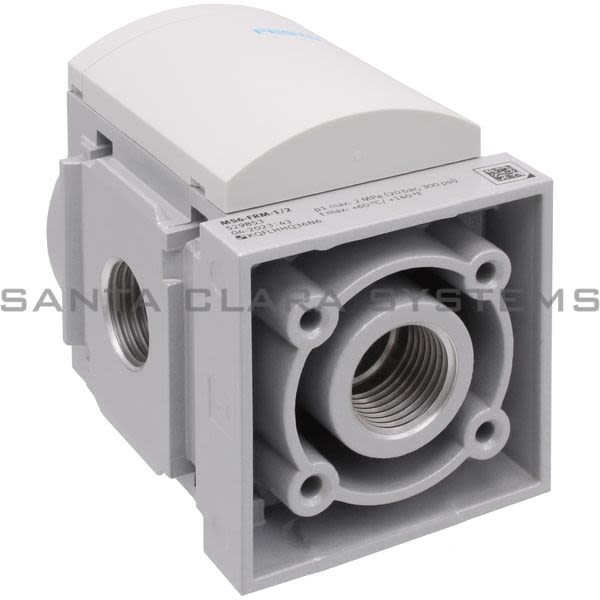

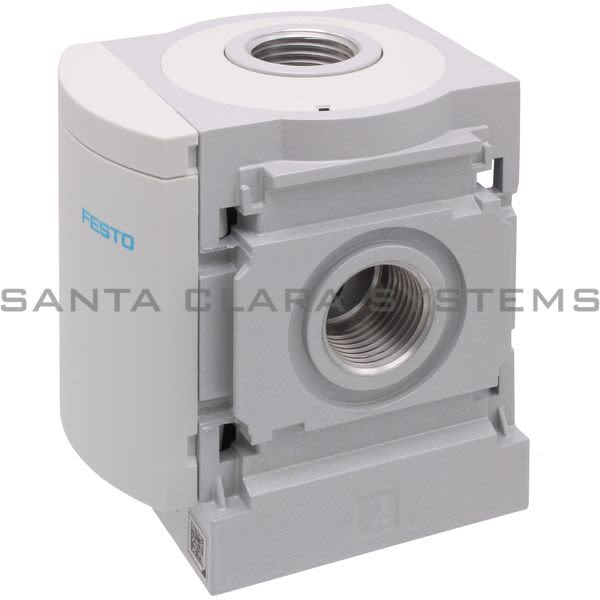

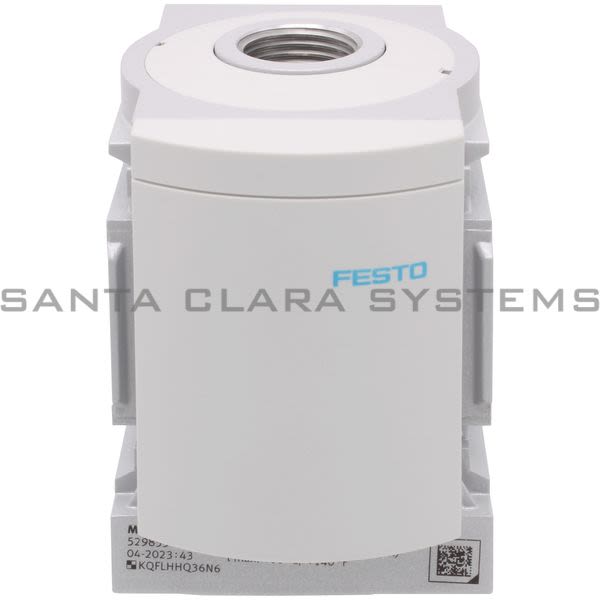

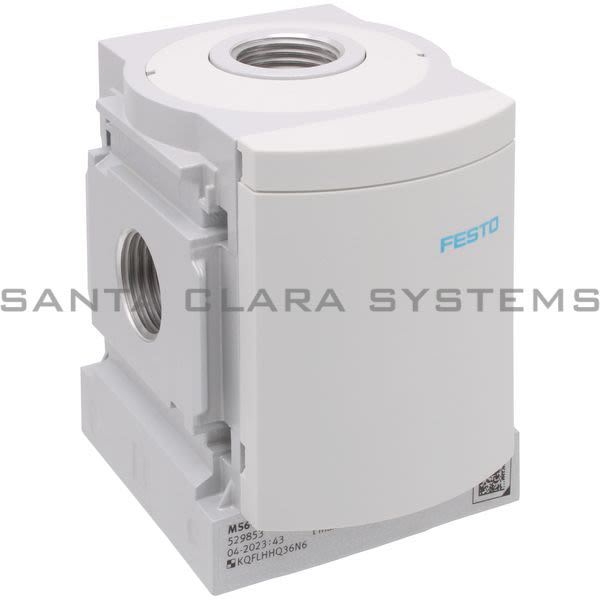

MS6-FRM-1-2

Festo - Branching Module

Product Summary:

Ambient temperature: -10 °C ... 60 °C
Pneumatic connection 1: G1/2
Standard nominal flow rate in main flow direction 1 -> 2: 14700 l/min
Operating pressure: 0 bar - 20 bar
Mounting position: Any

Current response time:

4 Minutes 19 Seconds

Description: Branching Module
Ambient temperature: -10 °C ... 60 °C
Pneumatic connection 1: G1/2
Standard nominal flow rate in main flow direction 1 -> 2: 14700 l/min
Operating pressure: 0 bar - 20 bar
Mounting position: Any
Structural design: Branching module
Symbol: 00991510
Standard nominal flow rate outlet at top: 4400 l/min
Standard nominal flow rate outlet down: 4600 l/min
Operating voltage range AC: 0 V ... 250 V
DC operating voltage range: 0 V ... 125 V

Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -10 °C ... 60 °C
For use in the food industry: See supplementary material information
Temperature of medium: -10 °C ... 60 °C
Product weight: 458 g
Pneumatic connection 2: G1/2
Pneumatic connection 3: G1/2
Pneumatic connection 4: G1/2
Housing material: Die-cast aluminum
