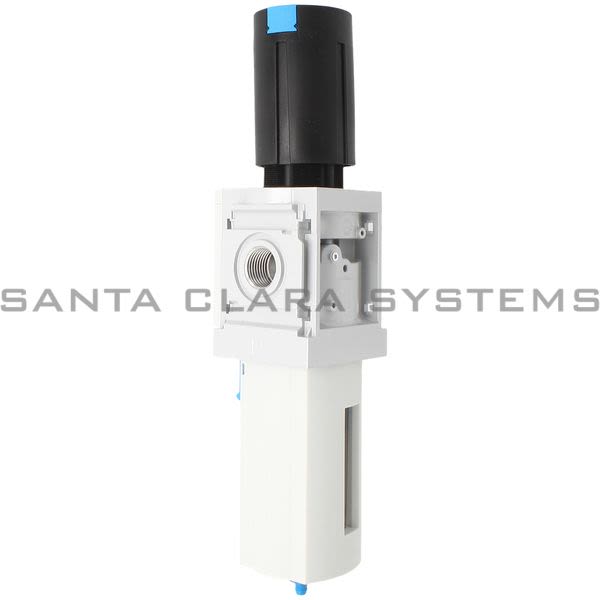

• Festo MS6-LFR-1/2-D6-CRM-AS Filter Regulator Product Image

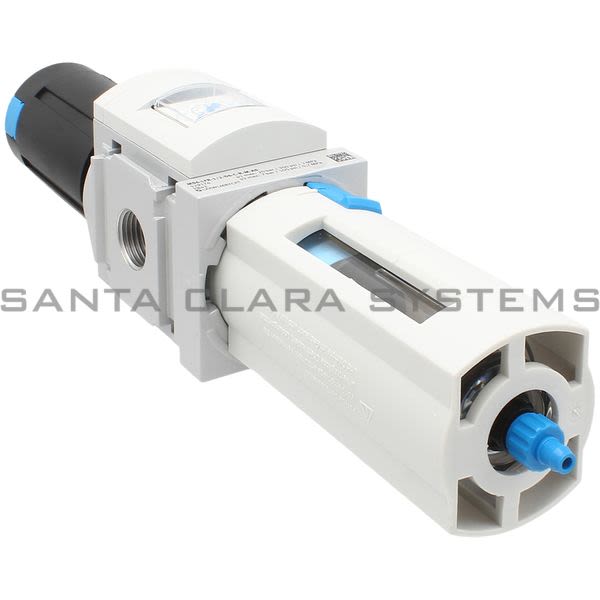

  • Festo MS6-LFR-1/2-D6-CRM-AS Filter Regulator Product Image
  • Festo MS6-LFR-1/2-D6-CRM-AS Filter Regulator Product Image
  • Festo MS6-LFR-1/2-D6-CRM-AS Filter Regulator Product Image
  • Festo MS6-LFR-1/2-D6-CRM-AS Barcode

MS6-LFR-1-2-D6-CRM-AS

Get a Quote

Current response time:

14 Minutes 47 Seconds
  • Description: Filter Regulator
  • Size: 6
  • Ambient temperature: -10 C ... 60 C
  • Series: MS
  • Actuator lock: Rotary knob with detent can be closed with accessories
  • Mounting position: Vertical +/- 5
  • Grade of filtration: 5 m
  • Condensate drain: Manually rotating
  • Structural design: Filter regulator with pressure gauge
  • Max. condensate volume: 38 ml
  • Controller function: Outlet pressure constant With secondary exhausting
  • Bowl guard: Plastic bowl guard
  • Degree of condensate separation: >75 %
  • Symbol: 00991589
  • Pressure gauge: With pressure gauge
  • Operating pressure: 0.08 MPa ... 2 MPa, 0.8 bar ... 20 bar
  • Pressure regulation range: 0.3 bar ... 7 bar
  • Max. pressure hysteresis: 0.025 MPa, 0.25 bar, 3.625 psi
  • Standard nominal flow rate: 5600 l/min
  • Operating medium: Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas
  • Corrosion resistance class (CRC): 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Storage temperature: -10 C ... 60 C
  • For use in the food industry: See supplementary material information
  • Air quality class at the output: Compressed air as per ISO 8573-1:2010 [6:4:4]
  • Temperature of medium: -10 C ... 60 C
  • Pore size: <5 m
  • Product weight: 875 g
  • Type of mounting: Optionally: Front panel mounting Line installation With accessories
  • Pneumatic connection 1: G1/2
  • Pneumatic connection 2: G1/2
  • Material of operator panel: PA POM
  • Seals material: NBR
  • Compressed air filter material: PE
  • Housing material: Die-cast aluminum
  • Diaphragm material: NBR
  • Material of bowl: PC
  • Separating disc material: POM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MS6-LFR-1-2-D6-CRM-AS . Santa Clara Systems carries 5,560 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
