MS6-SV-1-2-C-10V24-S
Product Summary:
- Size: 6
- Ambient temperature: 0 °C ... 60 °C
- Electrical connection: 2-pin Form C Plug as per EN 175301-803
- Series: MS
- Width dimension: 62 mm
Get a Quote
Current response time:
8 Minutes 47 Seconds

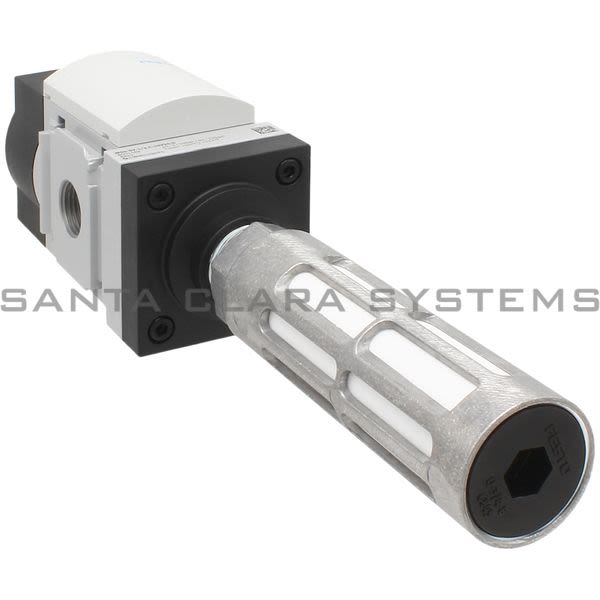

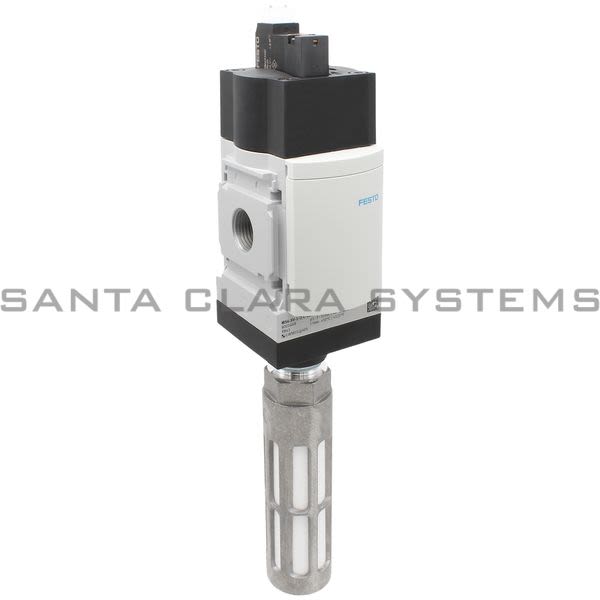

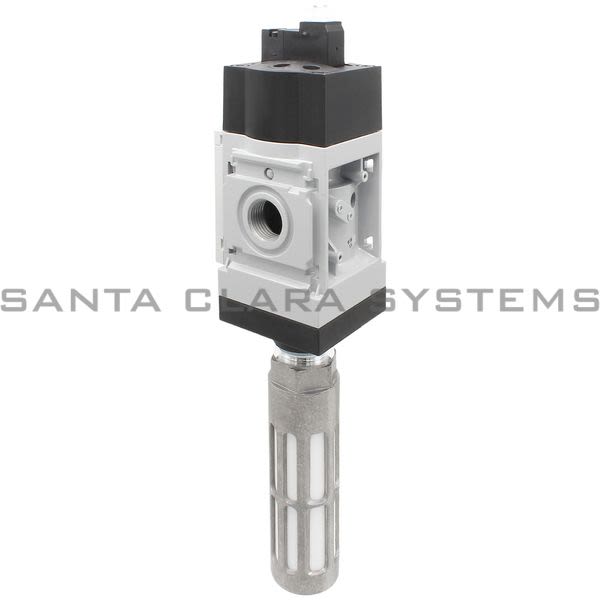

- Description: Soft Start/Quick Exhaust Valve
- Size: 6
- Ambient temperature: 0 °C ... 60 °C
- Electrical connection: 2-pin Form C Plug as per EN 175301-803
- Series: MS
- Width dimension: 62 mm
- Safety function: Exhausting Prevention of unexpected start-up (pressurization)
- Performance Level (PL): Exhaust/category 1, performance level c Avoidance of unexpected start-up (pressurization)/category 1, performance level c
- Structural design: Piston gate valve
- Lap: Overlap
- Actuation type: Electrical
- Pilot air supply port: Internal
- Sealing principle: Soft
- Exhaust air function: Without flow control option
- Manual override: At pilot control air solenoid valve: non-detenting, at soft start/quick exhaust valve: detenting, self-resetting
- Reset method: Mechanical spring
- Type of control: Pilot-controlled
- Symbol: 00995813
- Valve function: 3/2, closed, monostable Pressure build-up function
- Operating pressure: 0.3 MPa ... 1 MPa
- C value: 23.2 l/sbar
- B-value: 0.4
- Standard nominal flow rate: 5700 l/min
- Standard flow rate exhaust 6-> 0 bar: 7600 l/min
- Switching time off: 65 ms
- On switching time: 370 ms
- Duty cycle: 100%
- Coil characteristics: 24 V DC: 1.8 W
- Permissible voltage fluctuations: +/- 10 %
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Degree of protection: IP65 With plug socket
- Temperature of medium: 0 °C ... 60 °C
- Storage temperature: -10 °C ... 60 °C
- Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- CE marking (see declaration of conformity): As per EU EMC directive as per EU machinery directive As per EU RoHS directive
- UKCA marking (see declaration of conformity): To UK instructions for EMC To UK instructions for machines To UK RoHS instructions
- For use in the food industry: See supplementary material information
- Type of mounting: Optionally: Line installation With accessories
- Mounting position: Any
- Product weight: 1006 g
- Pneumatic connection 1: G1/2
- Pneumatic connection 2: G1/2
- Pneumatic connection 3: G3/4
- Housing material: Die-cast aluminum
- Seals material: NBR
- Piston rod material: High-alloy stainless steel
