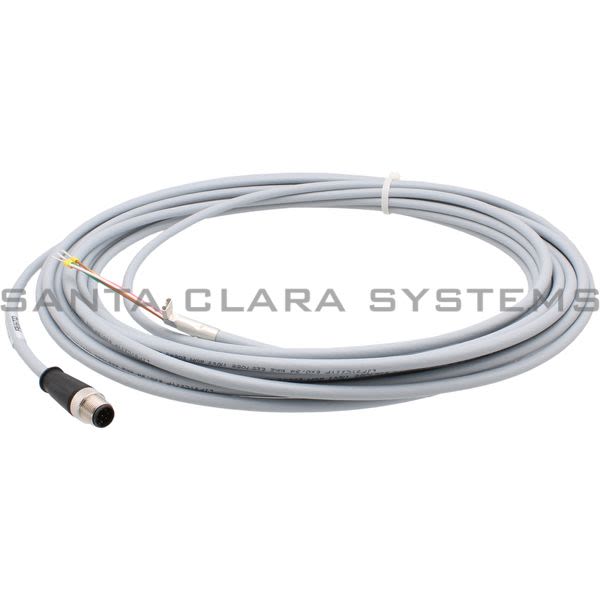

NEBM-M12G8-E-10-Q5-LE6

Festo - Motor Cable

Current response time:

By 5AM PT on Monday

Emergency?

Description: Motor Cable
Ambient temperature: -40 °C ... 80 °C
Cable designation: Without label holder
Electrical connection 1, function: Field device end
Electrical connection 1, design: Round
Electrical connection 1, connection type: Plug
Electrical connection 1, cable outlet: Straight

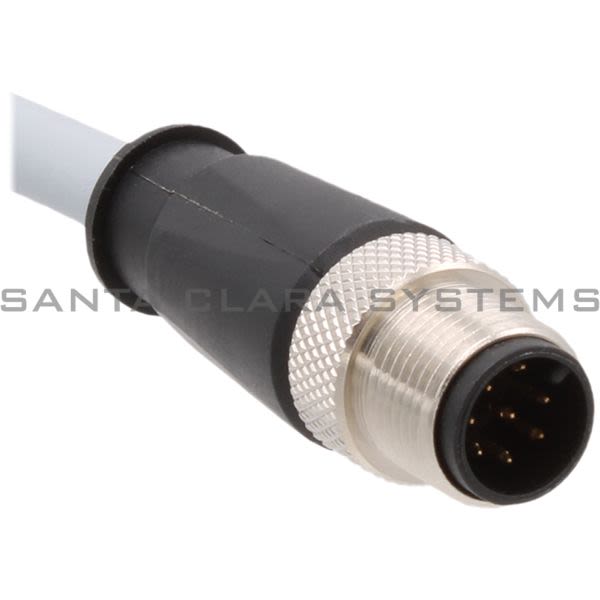

Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 8
Electrical connection 1, occupied pins/wires: 6
Electrical connection for input 1, connection pattern: 00992264
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 6
Electrical connection 2, occupied pins/wires: 6
DC operating voltage range: 0 V ... 72 V
Nominal operating voltage DC: 24 V

Shield: Yes
Cable length: 10 m
Cable characteristic: Suitable for energy chains
Bending radius, flexible cable installation: ≥62 mm
Cable diameter: 6.2 mm
Cable design: 6 x 0.34 mm²
Nominal conductor cross section: 0.34 mm²

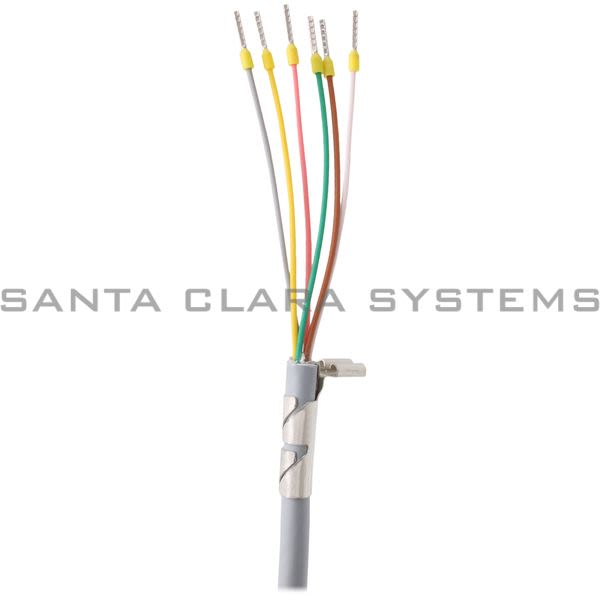

Wire ends: Cable end sleeve
Degree of protection: IP65
Note on degree of protection: In mounted state
Ambient temperature with flexible cable installation: -5 °C ... 80 °C
CE marking (see declaration of conformity): As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK RoHS instructions
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS-compliant
Material of cable sheath: TPE-U(PUR)
Color cable sheath: Gray
