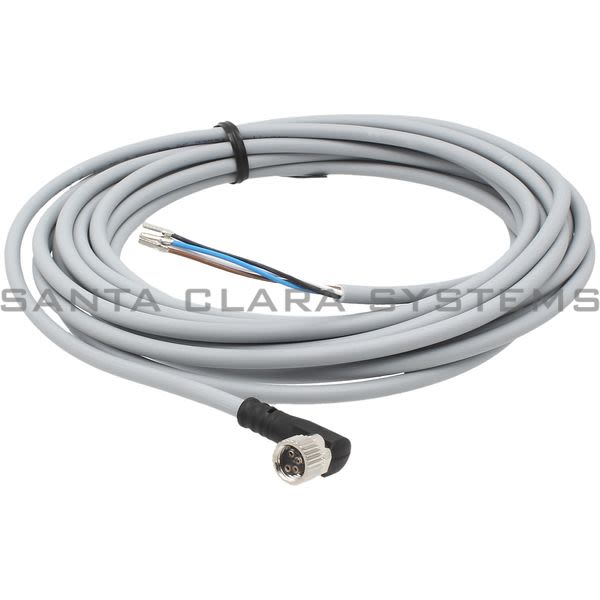

- Description: Connecting Cable
- Ambient temperature: -25 �C ...70 �C
- Type code: NEBU
- Conforms to standard: Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-104
- Explosion prevention and protection: Observe the information on the certificate Zone 2 (ATEX) Zone 22 (ATEX)
- Cable designation: With 2x label holders
- Product weight: 138 g
- Electrical connection 1, function: Field device end
- Electrical connection 1, design: Round
- Electrical connection 1, connection type: Socket

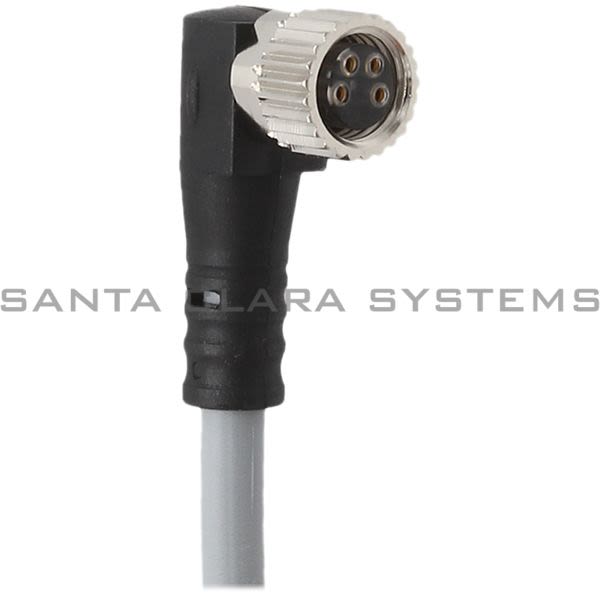

- Electrical connection 1, cable outlet: Angled
- Electrical connection 1, connection technology: M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires: 4
- Electrical connection 1, occupied pins/wires: 4
- Electrical connection 1, type of mounting: Screw-type lock
- Electrical connection for input 1, connection pattern: 991872
- Electrical connection 2, function: Control side
- Electrical connection 2, connection type: Cable

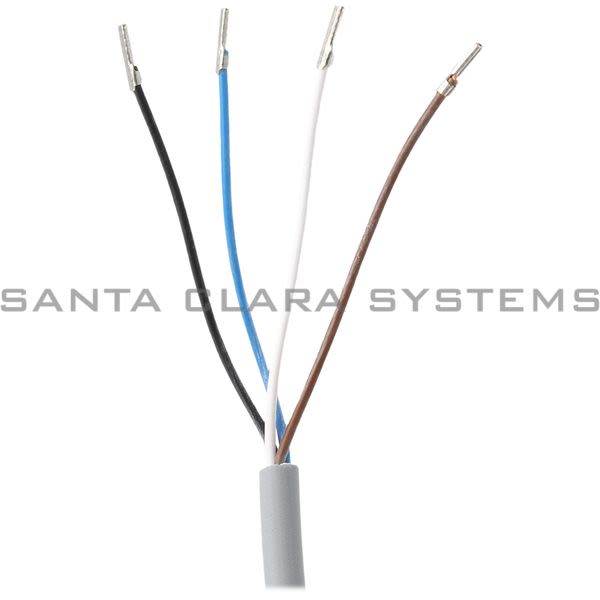

- Electrical connection 2, connection technology: Open end
- Electrical connection 2, number of pins/wires: 4
- Electrical connection 2, occupied pins/wires: 4
- DC operating voltage range: 0 V ... 30 V
- Operating voltage range AC: 0 V ... 30 V
- Current rating at 40�C: 3:00 AM
- Surge resistance: 0.8 kV

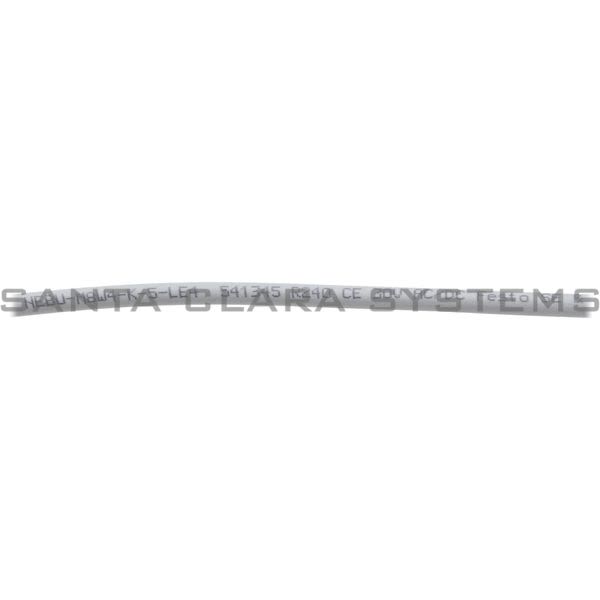

- Cable length: 5 m
- Cable characteristic: Standard
- Connector cable test conditions: Flexural strength: as per Festo standard Test conditions on request Cable chain: 5 million cycles, bending radius 75 mm
- Cable diameter: 4.5 mm
- Cable diameter tolerance: � 0.1 mm
- Cable design: 4 x 0.25 mm�
- Nominal conductor cross section: 0.25 mm�
- Degree of protection: IP69K IP65 IP68
- Special features: Oil-resistant
- Ambient temperature with flexible cable installation: -5 �C ...70 �C
- CE marking (see declaration of conformity): As per EU RoHS directive
- Contamination level: 3
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- Material of cable sheath: TPE-U(PUR)
- Color cable sheath: Gray
- Housing material: TPE-U(PUR)
- Housing colour: Black
- Material of screw-type lock: Brass, nickel-plated
- Insulating sheath material: PP
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on NEBU-M8W4-K-5-LE4 . Santa Clara Systems carries 7,316 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
