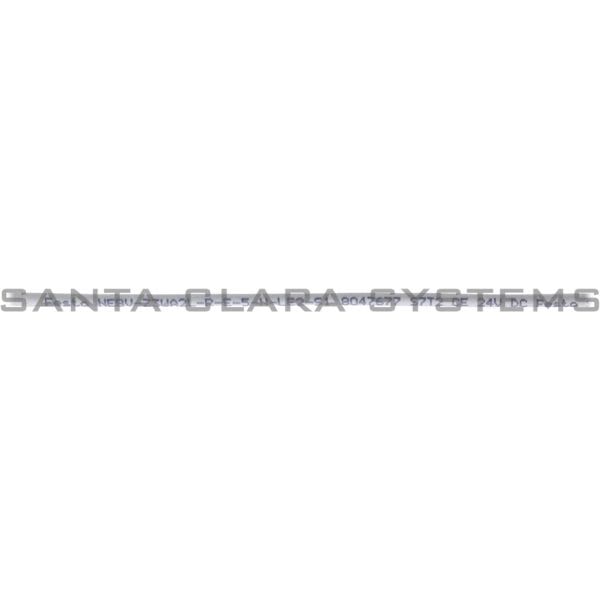

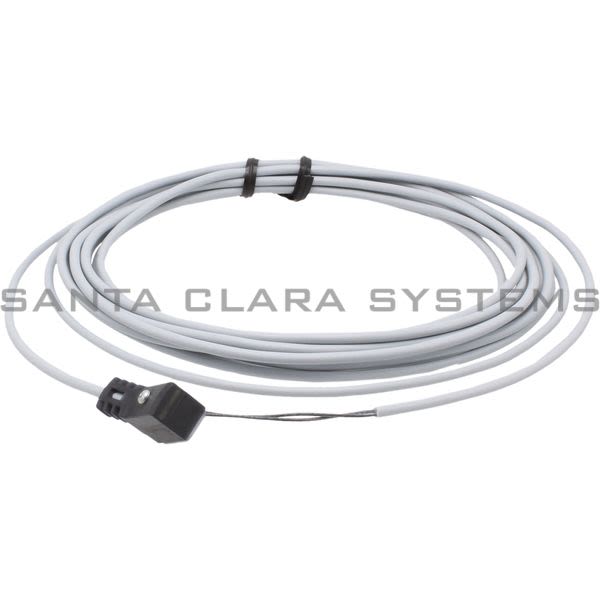

- Description: Connecting Cables

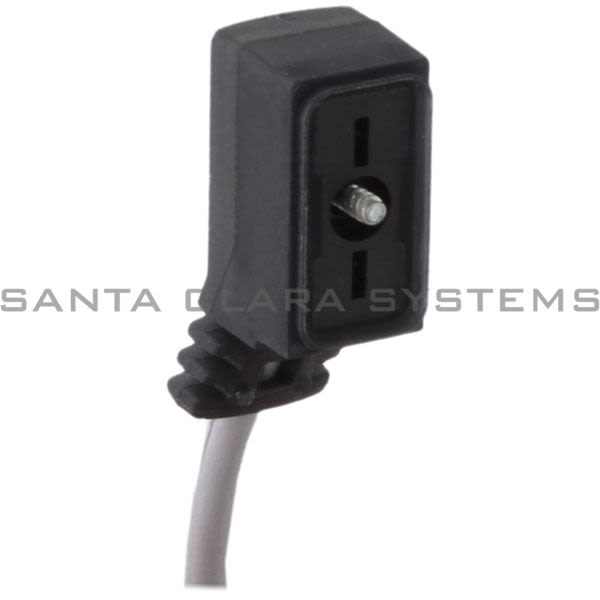

- Electrical connection 1, connection type: Socket
- Electrical connection 1, connection technology: Connection diagram ZC, self-tapping screw
- Electrical connection 2, connection type: Cable

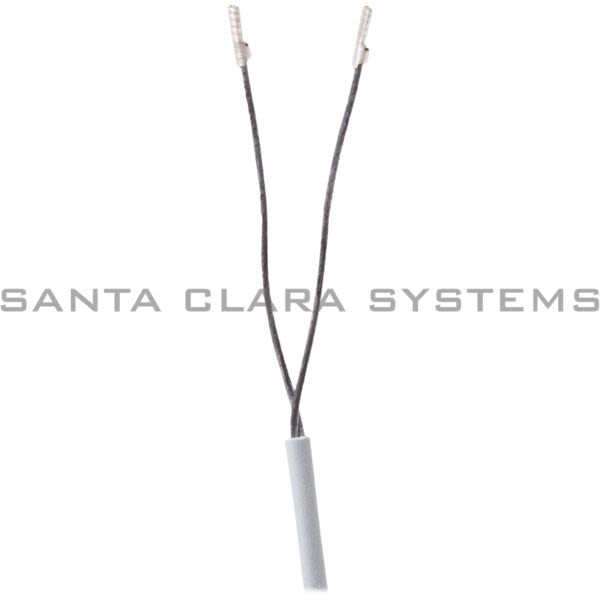

- Electrical connection 2, connection technology: Open end
- Cable length: 5 m
- Explosion prevention and protection: Zone 2 (ATEX), Zone 2 (UKEX)
- ATEX category gas: II 3G
- Type of ignition protection for gas: Ex ec IIC Gc X
- Explosion protection certification outside the EU: EPL Gc (GB)
- Signal status display: LED yellow
- Additional functions: Holding current reduction, Protective circuit
- Cable designation: Without label holder
- Contact durability: 50
- Product weight: 90 g
- Electrical connection 1, cable outlet: Angled
- Electrical connection 1, number of pins/wires: 2
- Electrical connection 1, occupied pins/wires: 2
- Electrical connection 1, type of mounting: On air solenoid valve with self-tapping screw
- Electrical connection for input 1, connection pattern: 00995625
- Electrical connection 2, function: Control side
- Electrical connection 2, number of pins/wires: 2
- Electrical connection 2, occupied pins/wires: 2
- DC operating voltage range: 20.4 V ... 26.4 V
- Nominal operating voltage DC: 24 V
- Surge resistance: 2.4 kV
- Reverse polarity protection: Bipolar
- Protective earth connection: Not available
- Cable characteristic: Suitable for energy chains
- Connector cable test conditions: Test conditions on request
- Bending radius, flexible cable installation: ≥29 mm
- Cable diameter: 2.9 mm
- Cable diameter tolerance: ± 0.1 mm
- Cable design: 2 x 0.14 mm²
- Nominal conductor cross section: 0.14 mm²
- Degree of protection: IP65
- Note on degree of protection: In mounted state
- LABS (PWIS) conformity: VDMA24364-B2-L
- Contamination level: 3
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on NEBV-Z3WA2L-R-E-5-N-LE2-S1 . Santa Clara Systems carries 7,778 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
