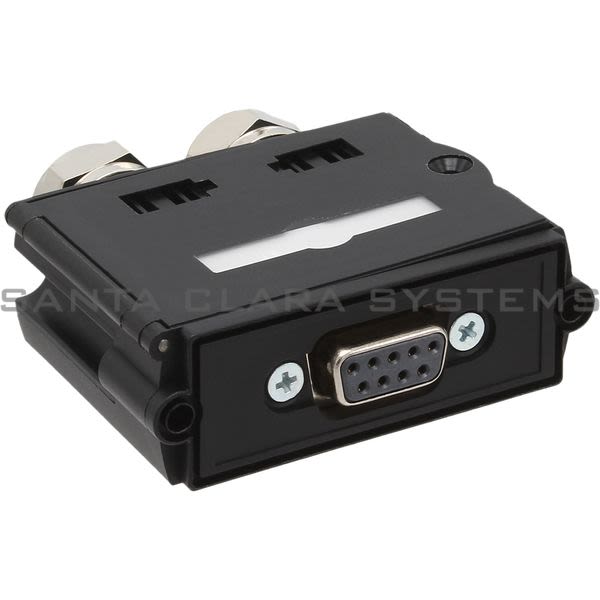

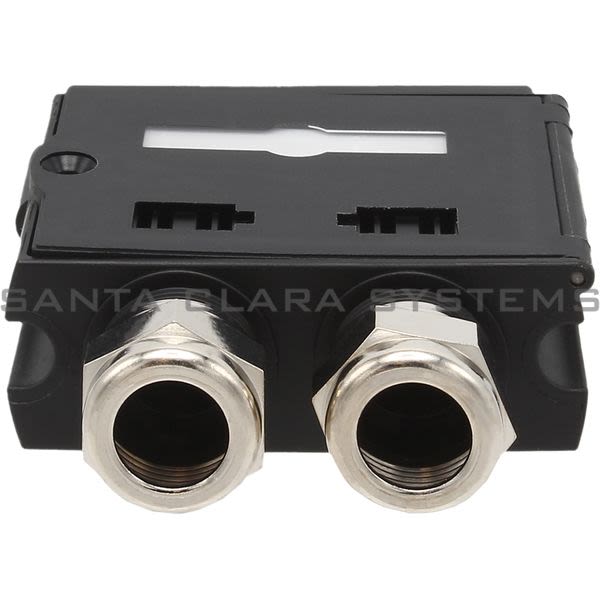

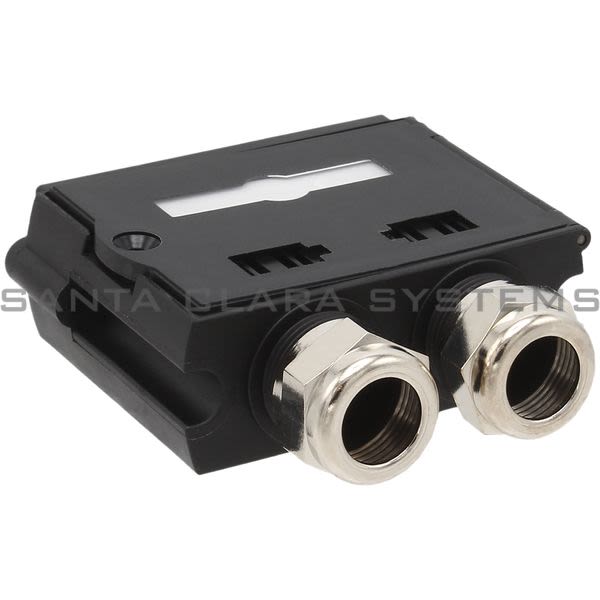

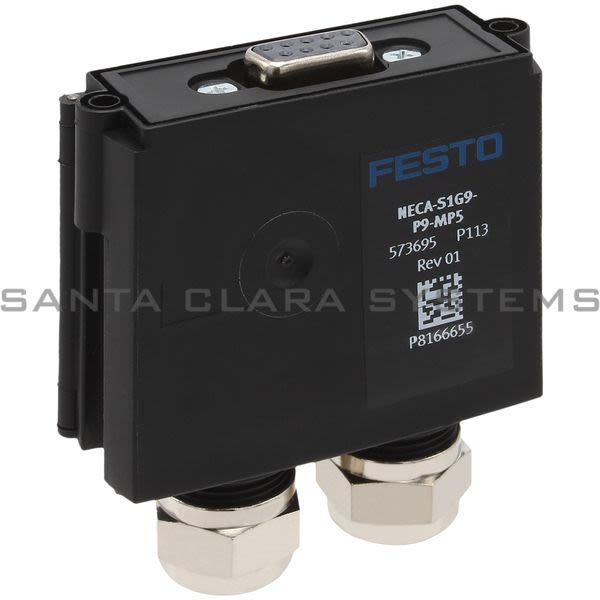

NECA-S1G9-P9-MP5

Festo - Multi-Pin Plug Socket

Product Summary:

Ambient temperature: 0 °C ... 50 °C
Type of mounting: With through-hole
Product weight: 60 g
Electrical connection 1: Socket, Sub-D, 9-pin
Electrical connection 2: Screw terminal, 9-pin

Current response time:

12 Minutes 54 Seconds

Description: Multi-Pin Plug Socket
Ambient temperature: 0 °C ... 50 °C
Type of mounting: With through-hole
Product weight: 60 g
Electrical connection 1: Socket, Sub-D, 9-pin
Electrical connection 2: Screw terminal, 9-pin
DC operating voltage range: 21.6 V ... 26.4 V
Nominal operating voltage DC: 24 V
Current rating at 40° C: 1 A

Approved cable diameter: 5 mm ... 10 mm
Connection cross section: 0.34 mm² ... 1 mm²
Information on port cross section: 0.34–0.5 mm² when using cable end sleeves
Degree of protection: IP65 - as per IEC 60529
Storage temperature: -20 °C ... 70 °C
Relative air humidity: 95 % - Non-condensing
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Corrosion resistance class (CRC): 2 - Moderate corrosion stress

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on NECA-S1G9-P9-MP5 . Santa Clara Systems carries 9,904 items from Festo.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
